Rockwell Automation Allen-Bradley PanelView 800 HMI User Manual

Rockwell Automation Publication 2711R-UM001H-EN-E - April 2021 11
Chapter 1
Overview
Chapter Objectives This chapter gives an overview of the PanelView 800 terminals.
• About the terminals
• How to connect browser
(a)
• PanelView Explorer
(b)
•How to display help
• Peripheral connection
• Catalog number configuration
About the Terminals PanelView 800 terminals are operator interface devices for monitoring and
controlling devices attached to a controller. HMI applications are created
using Connected Components Workbench software, then downloaded to the
terminal.

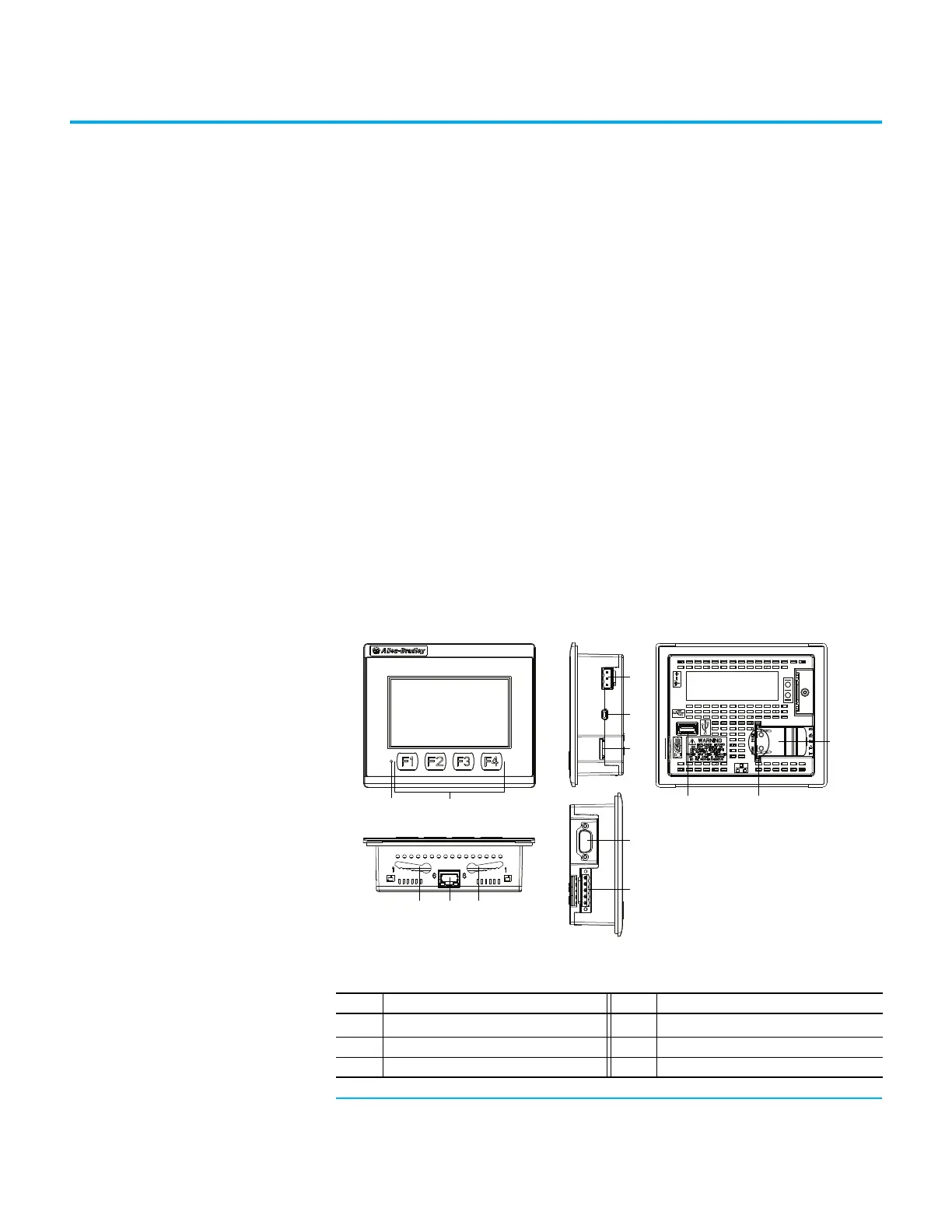

PanelView 800 Terminal – 2711R-T4T
(a) The web browser feature is not supported on PanelView 800 terminals from firmware
revision 3.011 onwards.
(b) The PanelView Explorer feature is not supported on PanelView 800 terminals from firmware
revision 3.011 onwards.
PanelView terminal 2711R-T4T Description
Item Description Item Description
1
Power status LED
(1)
7 10/100 Mb Ethernet port
2 Touch display, function keys 8 RS-232 port
3 24V DC power input 9 RS-422 and RS-485 port
2
3
4
6
1
76
5
8
9
10
11
12
