Rockwell Automation Publication 2711R-UM001H-EN-E - April 2021 13
Chapter 1 Overview

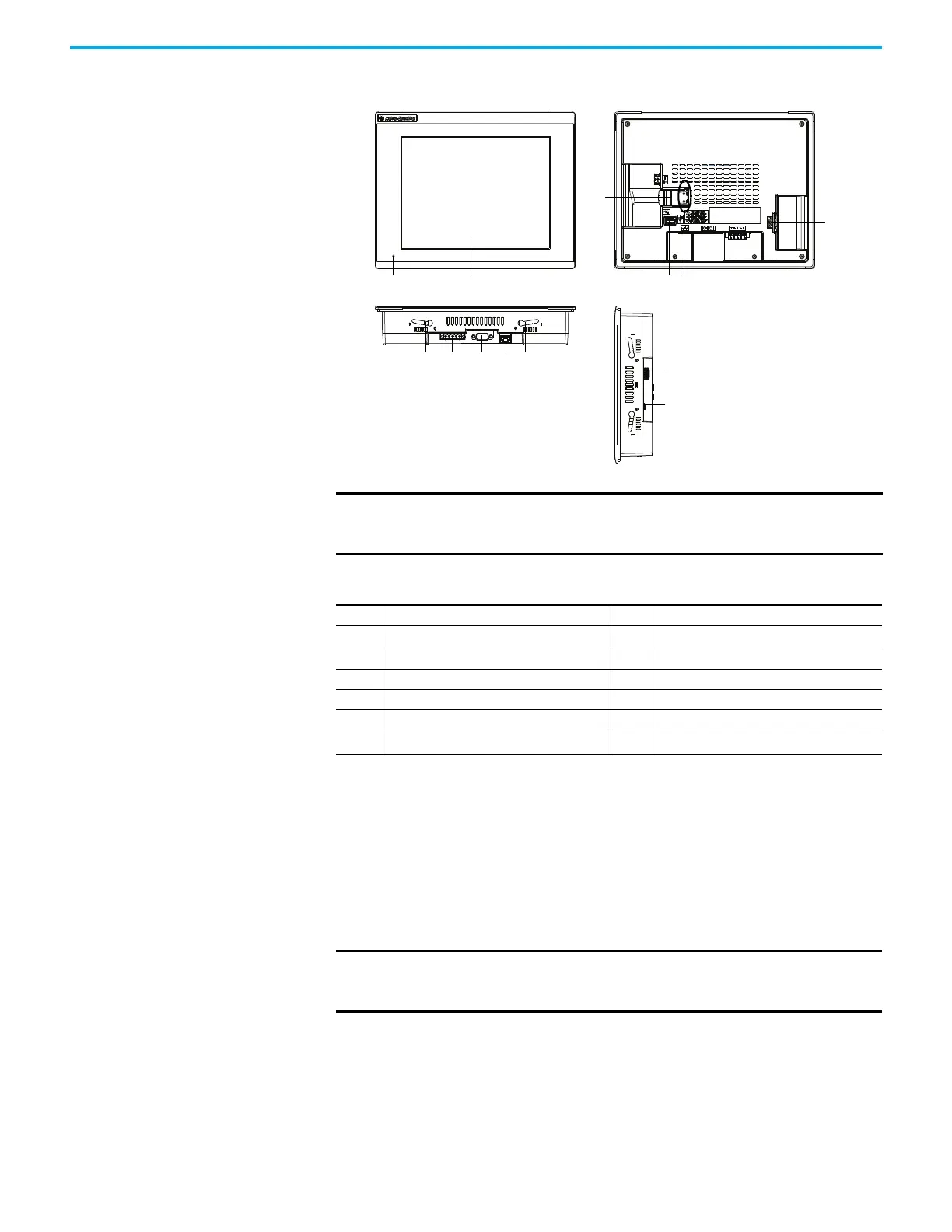

PanelView 800 Terminal – 2711R-T10T
How to Connect Browser The terminals can be connected to a browser using an Ethernet network
connection. You must enter the IP address of the PanelView 800 terminal into
the address field of your browser. You can find the IP address on the terminal
configuration screen under Communications.
IMPORTANT Analog touch screens are intended for single presses at a time. If the
touch screen is pressed in two locations at the same time, the presses are
averaged as a single press in-between the two locations
PanelView 800 Terminal 2711R-T10T Description
Item Description Item Description
1
Power status LED
(1)
(1) The Power Status LED is red when in screen saver or dimmer mode and green when in normal (operational) mode.
7 Replaceable real-time clock battery
2 Touch display 8 USB host port
3 Mounting slots 9 Diagnostic status indicator
4 RS-422 and RS-485 port 10 microSD (Secure Digital) card slot
5 RS-232 port 11 24V DC power input
6 10/100 Mb Ethernet port 12
USB device port
(2)
(2) The USB device port is not intended for Customer use.
IMPORTANT
The web browser feature is only supported on PanelView 800 terminals
with firmware revision 2.020 or earlier. It is not supported from
firmware revision 3.011 onwards.
