B-6 Accessories and Dimensions

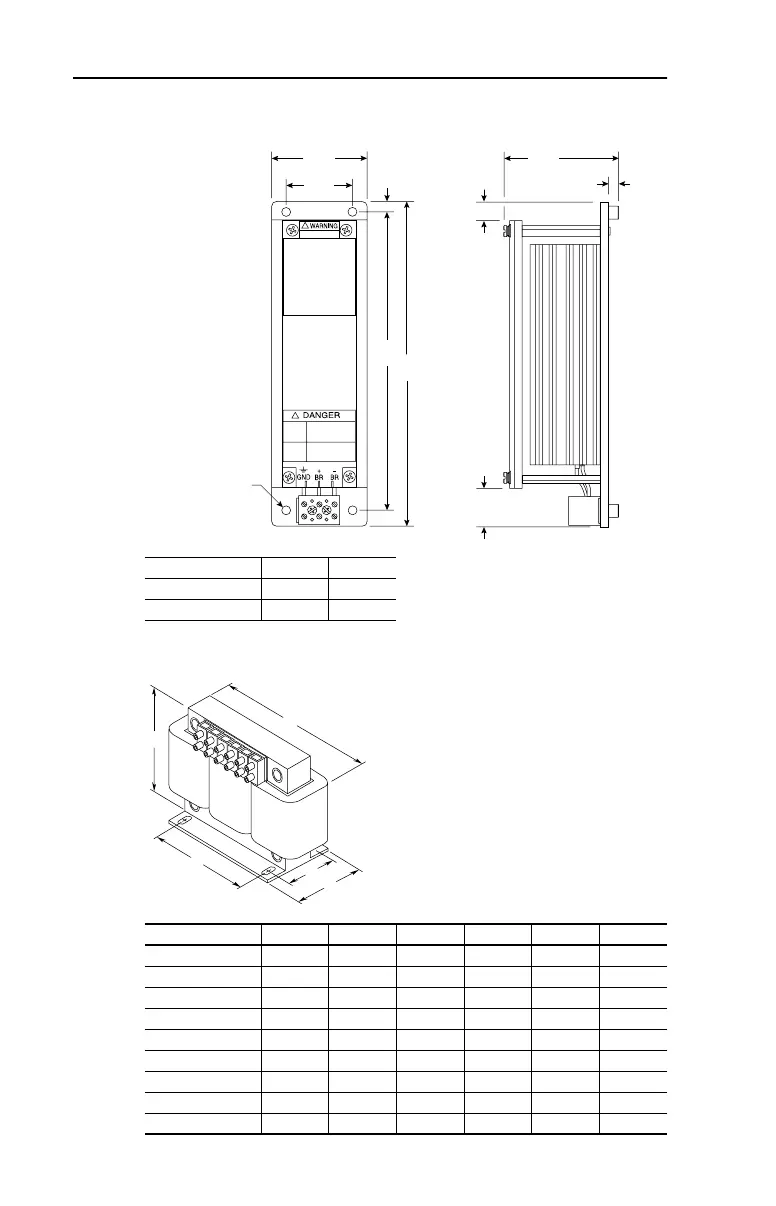

Figure B.3 Dynamic Brake Modules – Dimensions are in millimeters and (inches)
Figure B.4 Bulletin 1321-3R Series Line Reactors
– Dimensions are in millimeters and (inches). Weights are in kilograms and (pounds).
Catalog Number A B
160-BMA1, -BMB1 245 (9.64) 225 (8.86)
160-BMA2, -BMB2 334 (13.15) 314 (12.36)
Catalog Number ABCDEWeight
1321-3R2-A 112 (4.40) 104 (4.10) 70 (2.75) 50 (1.98) 37 (1.44) 1.8 (4)
1321-3R2-B 112 (4.40) 104 (4.10) 70 (2.75) 50 (1.98) 37 (1.44) 1.8 (4)
1321-3R4-A 112 (4.40) 104 (4.10) 76 (3.00) 50 (1.98) 37 (1.44) 1.8 (4)
1321-3R4-B 112 (4.40) 104 (4.10) 76 (3.00) 50 (1.98) 37 (1.44) 1.8 (4)
1321-3R8-A 152 (6.00) 127 (5.00) 76 (3.00) 53 (2.10) 51 (2.00) 3.1 (7)
1321-3R8-B 152 (6.00) 127 (5.00) 76 (3.00) 53 (2.10) 51 (2.00) 3.6 (8)
1321-3R12-A 152 (6.00) 127 (5.00) 76 (3.00) 53 (2.10) 51 (2.00) 4.1 (9)
1321-3R18-A 152 (6.00) 133 (5.25) 79 (3.10) 54 (2.13) 51 (2.00) 4.1 (9)
1321-3R18-B 152 (6.00) 133 (5.25) 86 (3.40) 63 (2.48) 51 (2.00) 5.4 (12)
50
(1.97)
72
(2.84)
86.4
(3.40)
B
A
6.86 (0.27)
Mounting Holes,
4 Places
8
(0.31)
7.5
(0.30)
14
(0.55)
29
(1.14)
D
C
B
A
E
