Rockwell Automation Allen-Bradley PowerFlex 40 FRN Series User Manual

Accessories and Dimensions B-11
PowerFlex 40 Adjustable Frequency AC Drive FRN 1.xx - 7.xx User Manual
Publication 22B-UM001I-EN-E

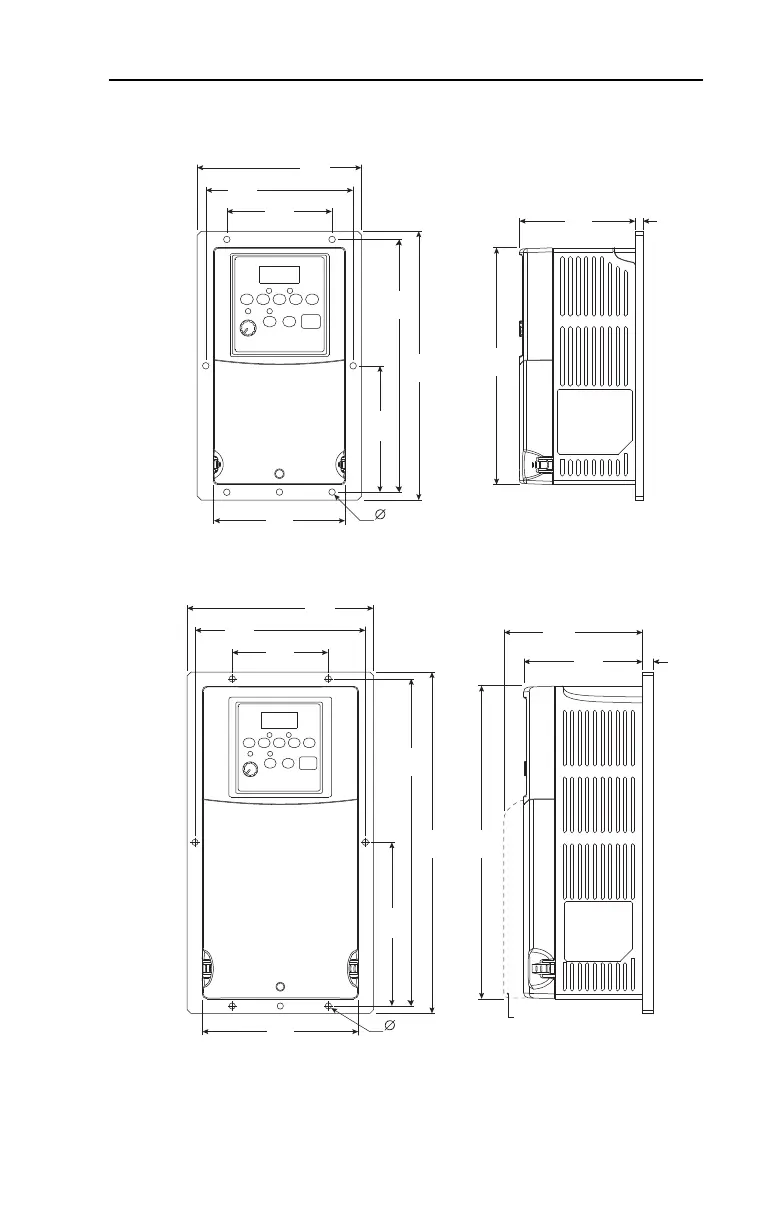

Figure B.6 PowerFlex 40 Replacement Plate Drive Dimensions – Dimensions are in
millimeters and (inches)
125
(4.92)
204
(8.03)
180
(7.09)
192
(7.56)
96
(3.78)
9.5
(0.37)
88
(3.46)
112
(4.41)
100
(3.94)
80
(3.15)
5.3
(0.21)
155
(6.10)
284
(11.18)
260
(10.24)
272
(10.71)
136
(5.35)
9.5
(0.37)
98.5
(3.88)
123.5
(4.86)
142
(5.59)
130
(5.12)
80
(3.15)
5.3
(0.21)
22B-CCC
Frame B
Frame C
22B-UM001.book Page 11 Tuesday, May 30, 2017 5:22 PM
