E-2 StepLogic, Basic Logic and Timer/Counter Functions
PowerFlex 40 Adjustable Frequency AC Drive FRN 1.xx - 7.xx User Manual
Publication 22B-UM001I-EN-E
StepLogic Using Timed Steps
To activate this function, set parameter P038 [Speed Reference] to 6 “Stp
Logic”. Three parameters are used to configure the logic, speed
reference and time for each step.
• Logic is defined using parameters A140-A147 [Stp Logic x].
• Preset Speeds are set with parameters A070-A077 [Preset Freq x].
• Time of operation for each step is set with parameters A150-A157
[Stp Logic Time x].
The direction of motor rotation can be forward or reverse.

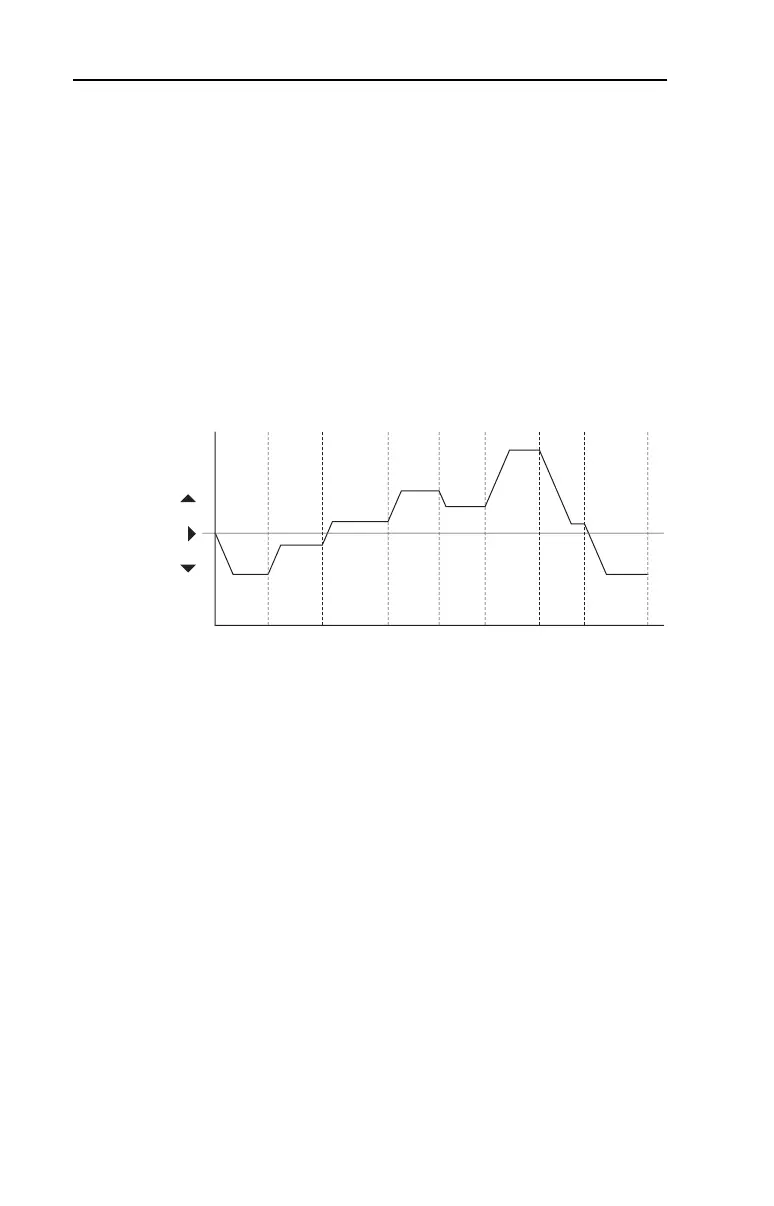

Figure E.1 Using Timed Steps
StepLogic Sequence
• Sequence begins with a valid start command.
• A normal sequence begins with Step 0 and transition to the next step
when the corresponding StepLogic time has expired.
• Step 7 is followed by Step 0
• Sequence repeats until a stop is issued or a fault condition occurs.
Ti
m
e
0
Forw
a
r
d
R
e
v
e
r
se
Ste
p
0
Ste
p
1
Ste
p
2
Ste
p
3
Ste
p
4
Ste
p
5
Ste
p
6
Ste
p
7
