Rockwell Automation Publication 7000-IN008D-EN-P - August 2019 15
Receiving and Storing Procedures Chapter 1
Install the supplied hardware as shown in Figure 8 and Figure 9.
Torque imperial 5/8 in.-11 hardware to 135 N•m (100 lb•ft).

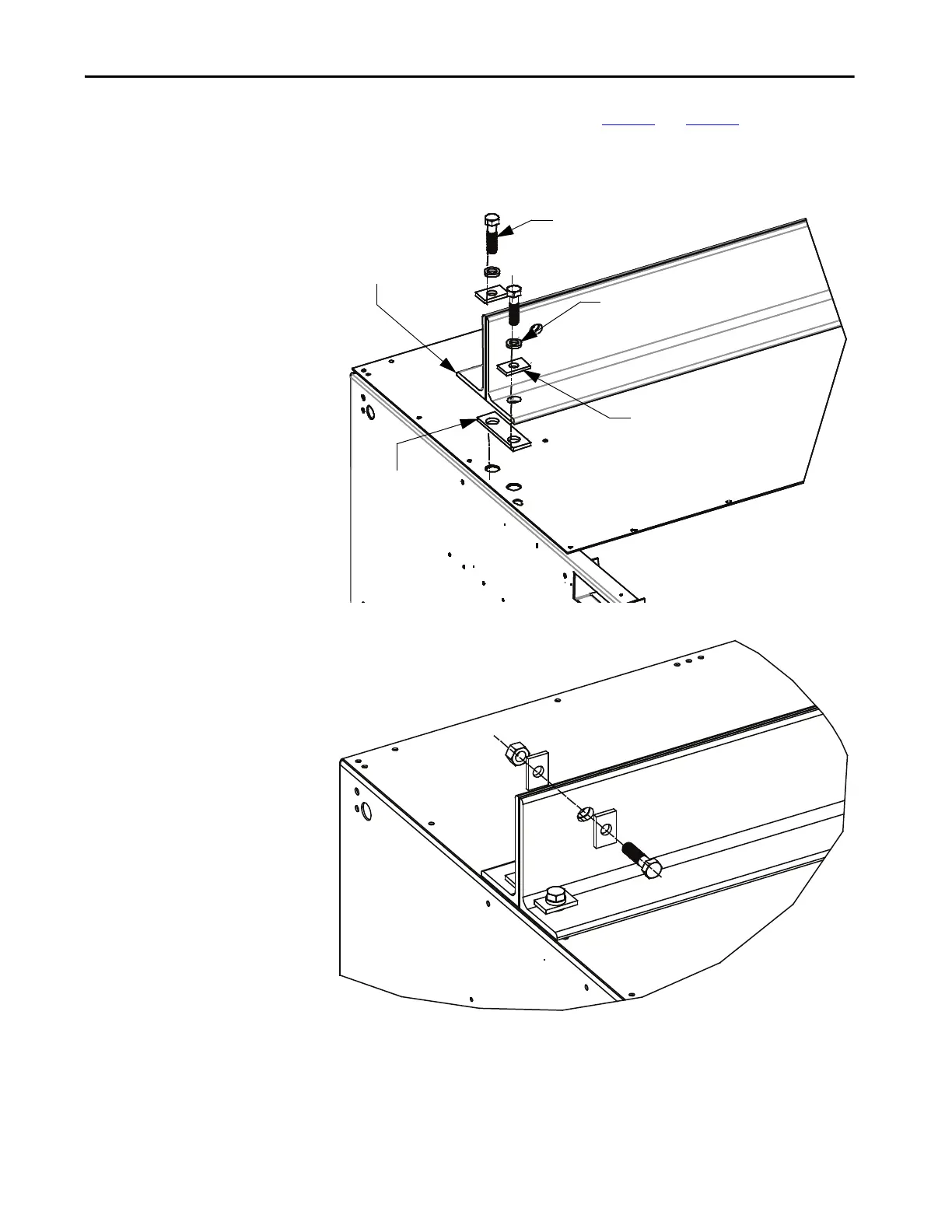

Figure 8 - Installing Fasteners from Lifting Angle (four 5/8 in.-11 bolts per drive cabinet)
Figure 9 - Bolt Lifting Angles Together. Bolt all Vertical Slots.
Lifting Angle Pair
5/8 in.- 11 Grade 8
Lockwasher
Washer
Spacer
