Rockwell Automation Publication 7000-IN008D-EN-P - August 2019 21
Transportation and Handling Procedures Chapter 2
The lift points on the drive might not be equidistant from the center of
gravity, which generally is considered as the geometrically center of the
equipment.
5. Select or adjust the rigging lengths to compensate for the weight
distribution of the load. Maintain the equipment in an upright position.
Avoid abrupt movements in any direction.
6. To minimize risk, only lift the drive high enough to clear obstacles. There
is some tilt due to uneven weight distribution within the drive.
7. Lower the equipment for installation on a level floor.

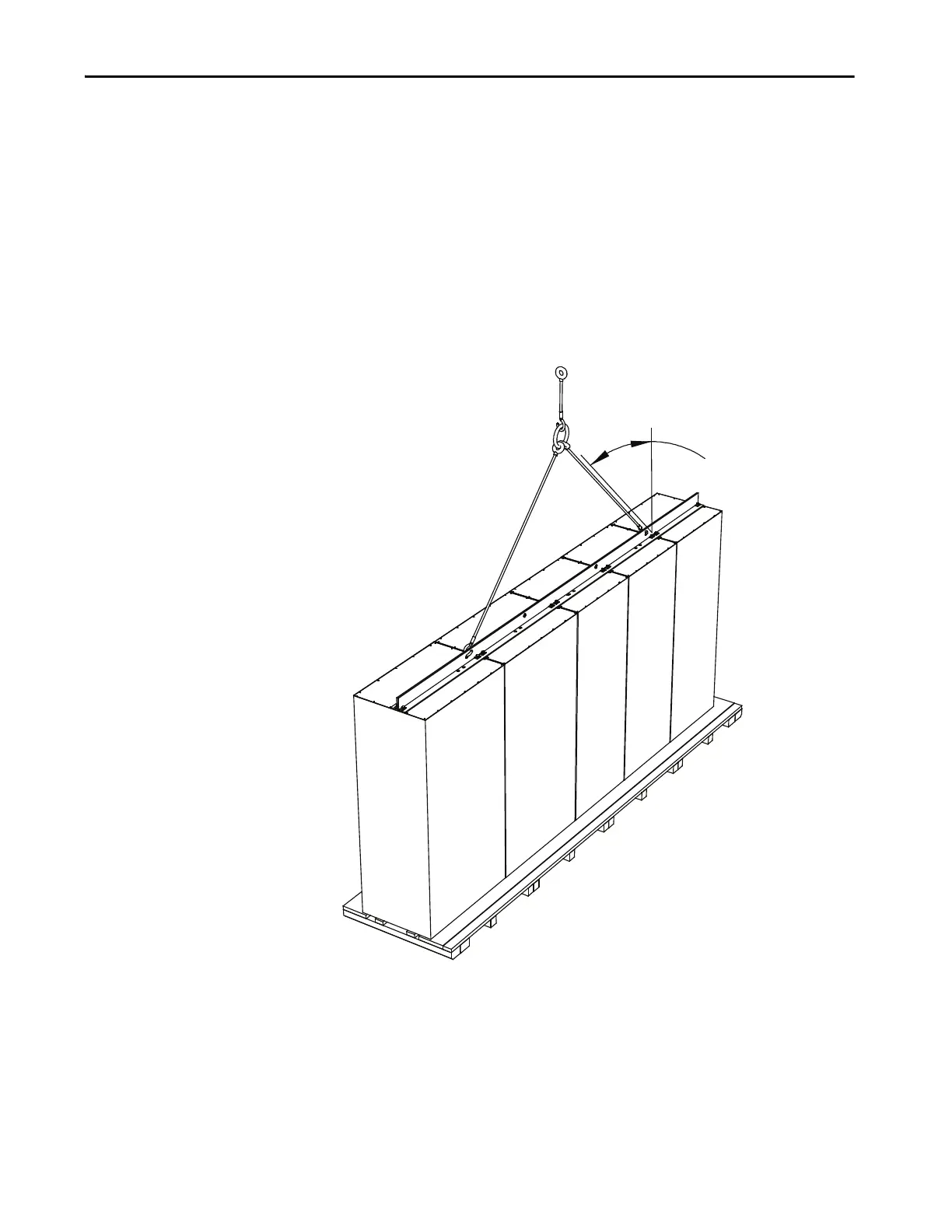

Figure 12 - Top Lifting
