SLC 500 8-Point Analog Output Module 9
Publication 1746-IN026A-EN-P - July 2003
Remove Power

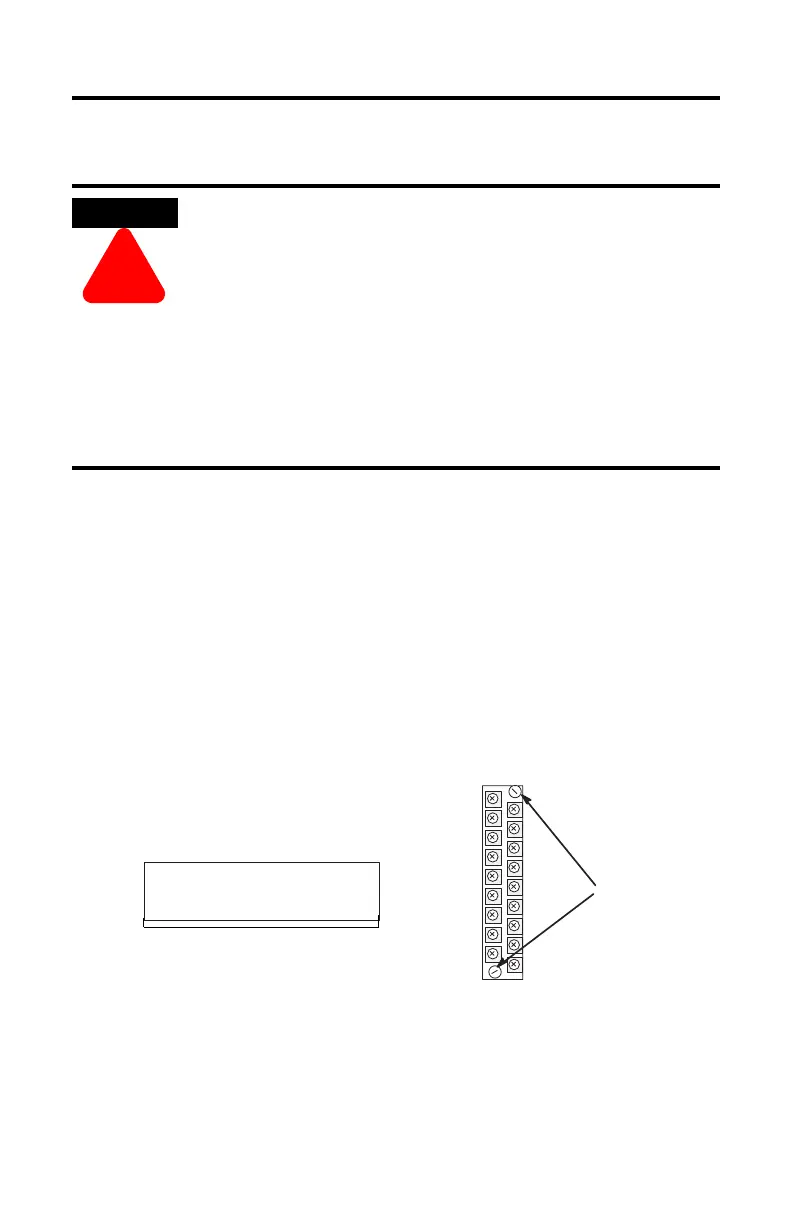

Terminal Block Removal
When installing the module in a chassis, it is not necessary to remove the terminal
block from the module. However, if the terminal block is removed, use the write-on
label located on the side of the terminal block to identify the module location and
type.
To remove the terminal block:
1. Loosen the two terminal block release screws.
2. Grasp the terminal block at the top and bottom and pull outward and down.
ATTENTION
!
Remove power before removing or installing this module.
When you remove or install a module with power applied, an
electrical arc may occur. An electrical arc can cause personal
injury or property damage by:
• sending an erroneous signal to your system’s field devices,
causing unintended machine motion
• causing an explosion in a hazardous environment
• causing permanent damage to the module’s circuitry
Electrical arcing causes excessive wear to contacts on both the
module and its mating connector. Worn contacts may create
electrical resistance.
Terminal Block
Release Screws
•
SLOT
RACK
MODULE
