Rodec MX1800 - Frontpanel Controls Overview; Input Channel Controls; Effects, Routing, and Balance Controls; Master, Monitor, and VU Meter Controls

7

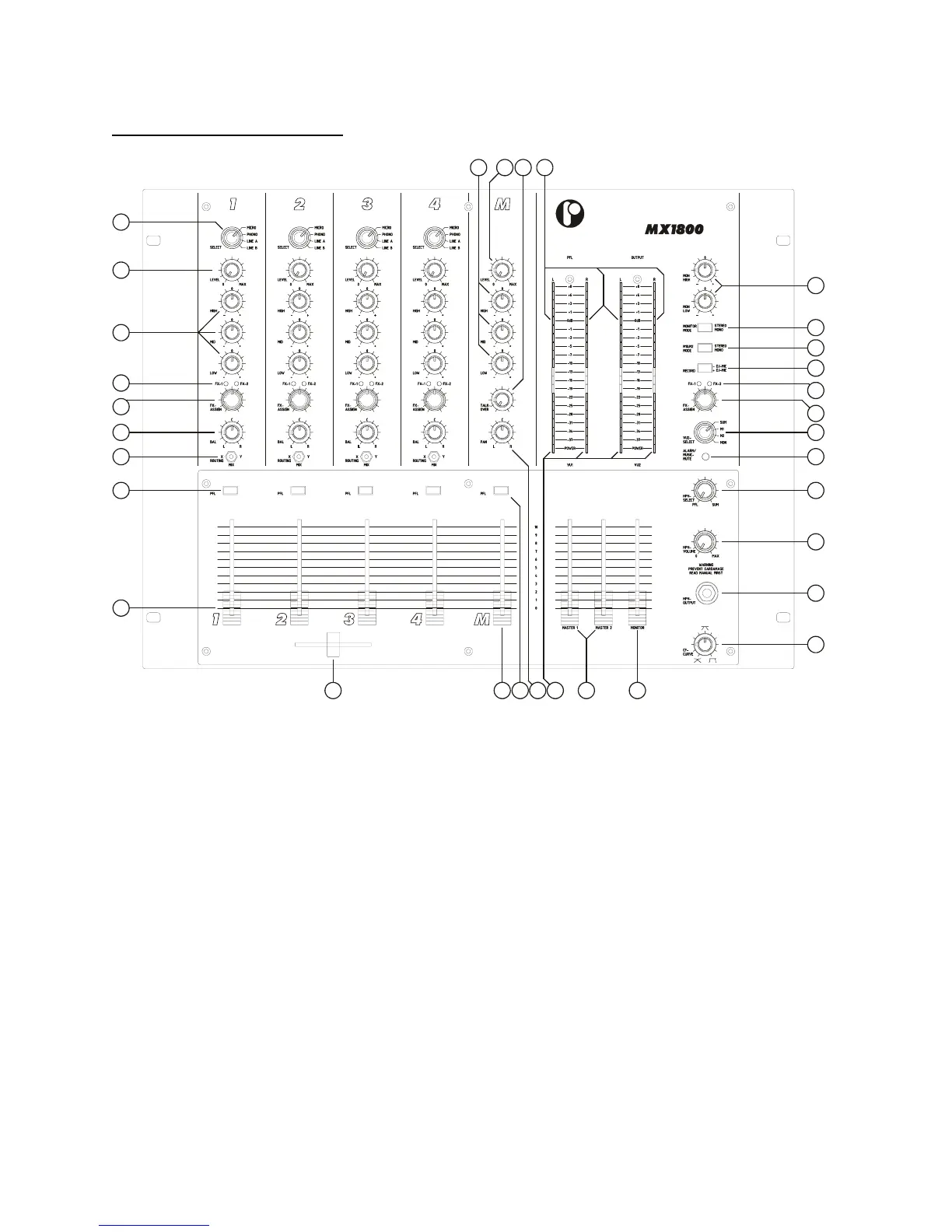

Frontpanel with controls
XY
RODEC

9
14
19
20
12
10
15
16
17 18
1311
27
26
25
24
28
31
32
30
298
7
6
4
3
2
1
5
23
22
21
1) Input select switch
This selector is used to select the input signal: MICRO, PHONO, LINE A or LINE B.
2) Input level potentiometer
With this control the input level of each input channel can be set.
3) Equalizer controls
These controls regulate the amount of treble, middle and bass in the sound.
