Service and Maintenance:
08

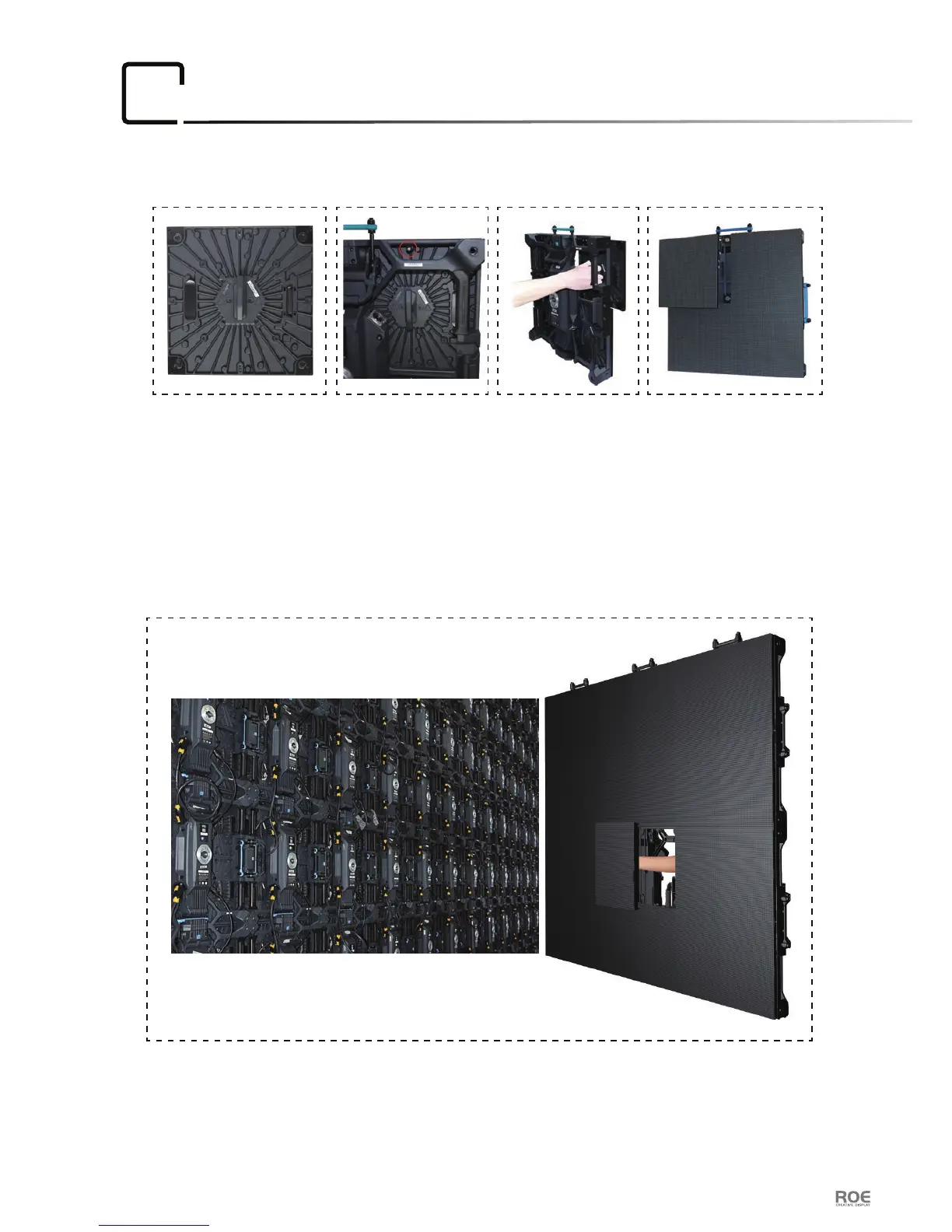

Picture 1 Picture 2 Picture 3 Picture 3
Rear Maintenance
Application example
1. A single modules.(Picture 1)
2. Remove the screw in red.(Picture 2)
3. Hold the handle and push the module.(Picture 3)
Maintenance on overall installation, just replace the bad modules.
Easy Maintenance with push-out module and all the modules are the same design.
User Manual P20
