ROE BP2 User Manual

Data

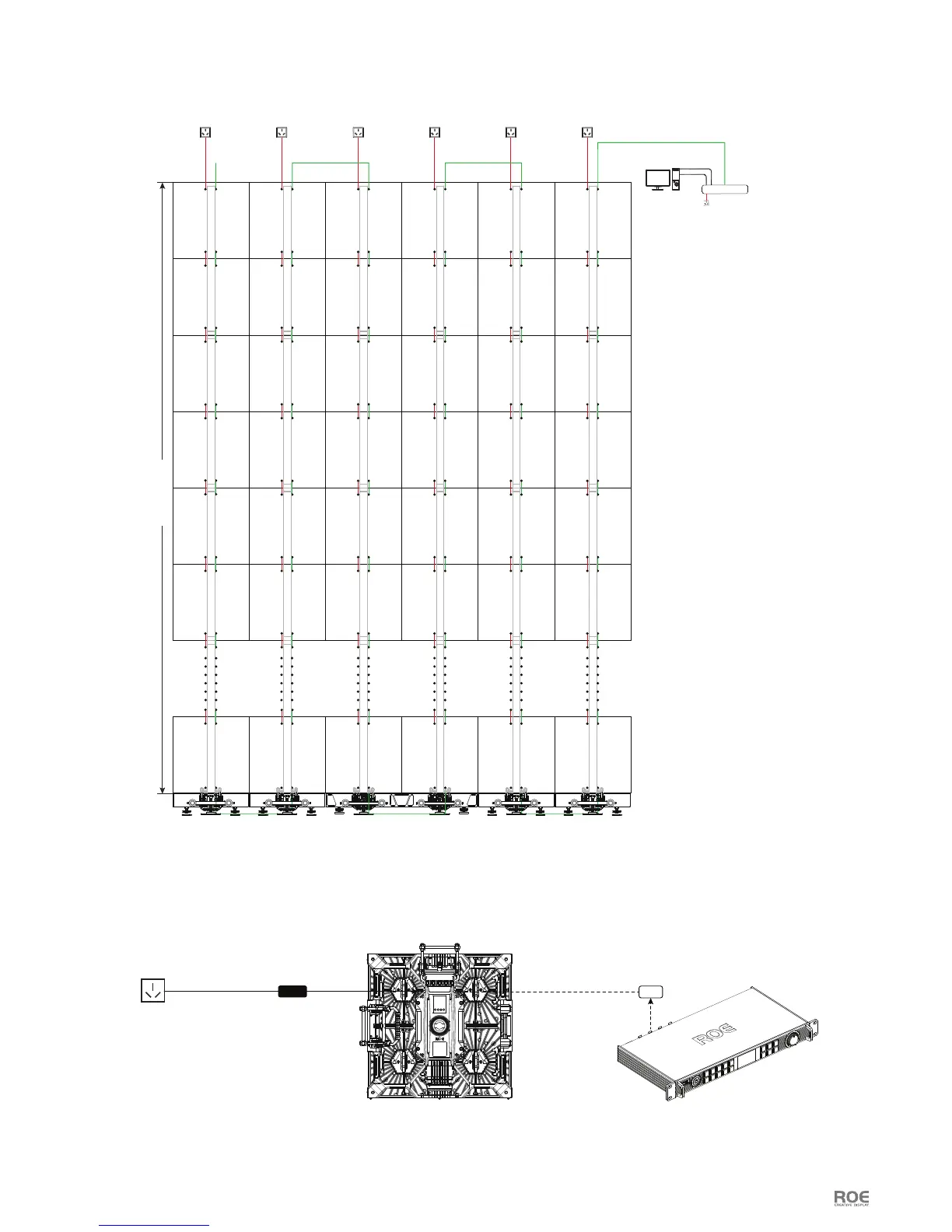

Power and Data connections of
BP tiles
Power
WeiPu
User Manual P8
Evision
AC 220V
USB
DVI
①
②
BP Built in Power Supply
Input Voltage AC 220V
Stacking System
1. Base Bar can load no more than 12 tiles of BP.
2. When the Input Voltage is 220V, one Power Cable can load 16 tiles of BP; and the Input Voltage is 110V, one
Power Cable can load 8 tiles of BP.
Notes:
AC 220V AC 220V AC 220V AC 220V AC 220V AC 220V
③
④
⑤
⑧⑦
12 tiles high
BP BP BP BP BP BP
BP BP BP BP BP BP
BP BP BP BP BP BP
BP BP BP BP BP BP
BP BP BP BP BP BP
BP BP BP BP BP BP
BP BP BP BP BP BP
⑥

ROE BP2 Specifications

General

Brand	ROE
Model	BP2
Category	Monitor
Language	English
