Roger Technology B70/2DC/BOX User Manual

EN
39

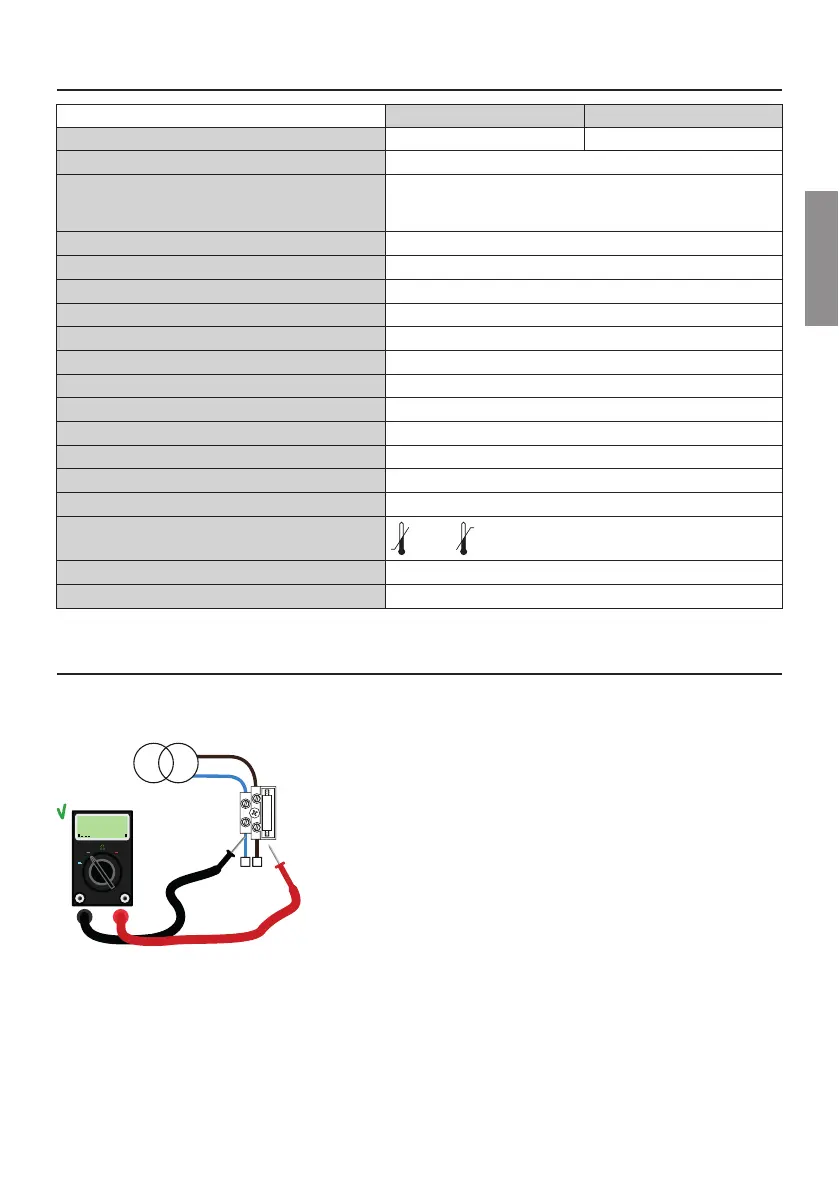

3 Technical characteristics of product
B70/2DC/BOX B70/2DC115/BOX
1%-2743;)6:308%+) :EGr,^ :EGr,^
1%<-1911%-2743;)6%&73648-32 350 W
FUSES
F1 = 15A (ATO257) motor power circuit protection.
F2 = 4A (ATO257) accessories power supply protection
F3 = T1A (5x20 mm)
'322)'8%&0)138367 2
1383643;)679440= 24 Vac , [MXLWIPJTVSXIGXIHMRZIVXIV
138368=4) sinusoidal drive brushless63+)6&697,0)77
13836'3286308=4) WIRWSVPIWWƼIPHSVMIRXIHGSRXVSP*3'
6%8)(1383643;)6 40 W
1%<-1911383643;)6 110 W
1%<-19143;)6*0%7,-2+0-+,8 25 W (24 Vdc)
*0%7,-2+0-+,8(98='='0) 50%
1%<-19143;)6 ;:EG;:EGHGpotential free contact)
GATE 34)20-+,843;)6 3 W (24 Vdc)
)0)'86-'03'/43;)6 15 W (12 Vdc)
1%<-191%'')7736='966)28%&73648-32 10 W (24 Vdc)
34)6%8-2+8)14)6%896)
q' q'
()+6))3*4638)'8-32 IP54
463(9'8(-1)27-32 dimensions in mm 330x230x115 Weight: 3,9 kg
4 Description of connections
Figure 1 shows connection diagrams.
A
V
V
A
+-COM
220÷230
N L
FUSE
TRANSFORMER
Measure the voltage on the primary mains power connection with a tester.
For the Brushless automation system to function correctly, the mains power
voltage must be at least 230Vac (115 Vac) ± 10%.
If the voltage measured is not as indicated above or is unstable, the automation
system may not work correctly.
