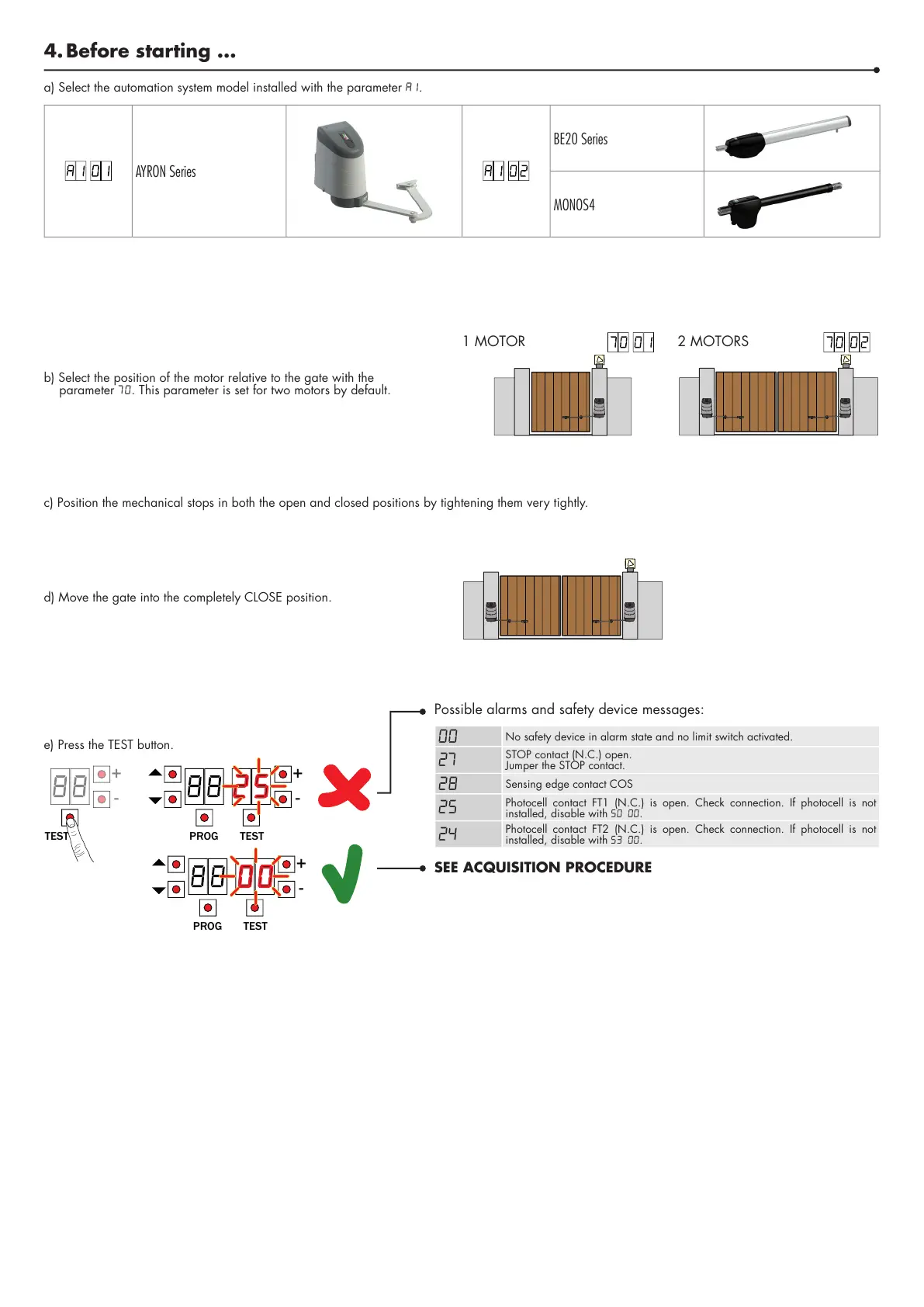

4. Before starting ...
d) Move the gate into the completely CLOSE position.
e) Press the TEST button.
Possible alarms and safety device messages:
SEE ACQUISITION PROCEDURE
00
No safety device in alarm state and no limit switch activated.
27
STOP contact (N.C.) open.
Jumper the STOP contact.
28
Sensing edge contact COS
25
Photocell contact FT1 (N.C.) is open. Check connection. If photocell is not
installed, disable with 50 00.
24
Photocell contact FT2 (N.C.) is open. Check connection. If photocell is not
installed, disable with 53 00.
PROG TEST
+
-
+
-
a) Select the automation system model installed with the parameter A1.
b) Select the position of the motor relative to the gate with the
parameter 70. This parameter is set for two motors by default.
c) Position the mechanical stops in both the open and closed positions by tightening them very tightly.
1 MOTOR 2 MOTORS
AYRON Series
BE20 Series
MONOS4
