6. Setting basic parameters
30 Motor torque
43 Opening and closing approach
distance setting MOTOR1
44 Opening and closing approach
distance setting MOTOR2
31 Obstacle impact force
sensitivity MOTOR1
33 Motor torque MOTOR2
32 Obstacle impact force
sensitivity MOTOR2
34 Start acceleration MOTOR1
during closing
34 Start acceleration MOTOR1
during closing
35 Start acceleration MOTOR2 during closing
11 Deceleration
MOTOR 1 during closing
12 Deceleration MOTOR2 during closing
26 Closing delay of MOTOR1
19 Stop advance of LEAF1
when opening
20 Stop advance of LEAF2
when opening
14 Position control
13 Position control
13 Position control
14 Position control
25 Opening delay of MOTOR2
11 Deceleration MOTOR 1
during opening
12 Deceleration MOTOR 2
during opening
40 Opening speed
41 Closing speed
35 Start acceleration MOTOR2
during closing
MOTOR 1
MOTOR 2

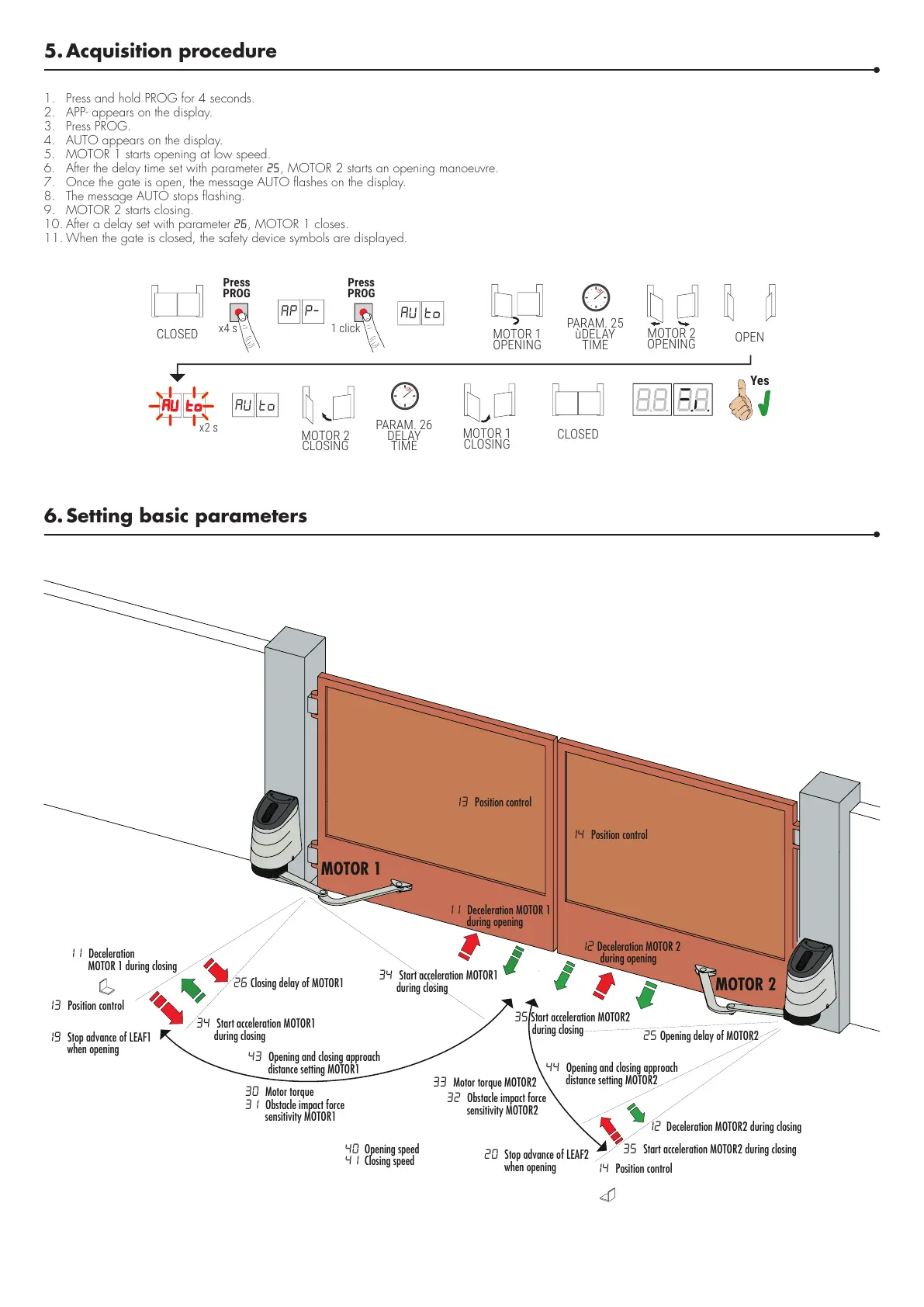

5. Acquisition procedure
1. Press and hold PROG for 4 seconds.
2. APP- appears on the display.
3. Press PROG.
4. AUTO appears on the display.
5. MOTOR 1 starts opening at low speed.
6. After the delay time set with parameter 25, MOTOR 2 starts an opening manoeuvre.
7. Once the gate is open, the message AUTO flashes on the display.
8. The message AUTO stops flashing.
9. MOTOR 2 starts closing.
10. After a delay set with parameter 26, MOTOR 1 closes.
11. When the gate is closed, the safety device symbols are displayed.
Press
PROG
AP P-
AU to
x4 s
Press
PROG
1 click
OPEN
MOTOR 1
OPENING
MOTOR 2
OPENING
PARAM. 25
ùDELAY
TIME
AU to
x2 s
CLOSED
AU
to
Ye s
MOTOR 1
CLOSING
MOTOR 2
CLOSING
PARAM. 26
DELAY
TIME
CLOSED
