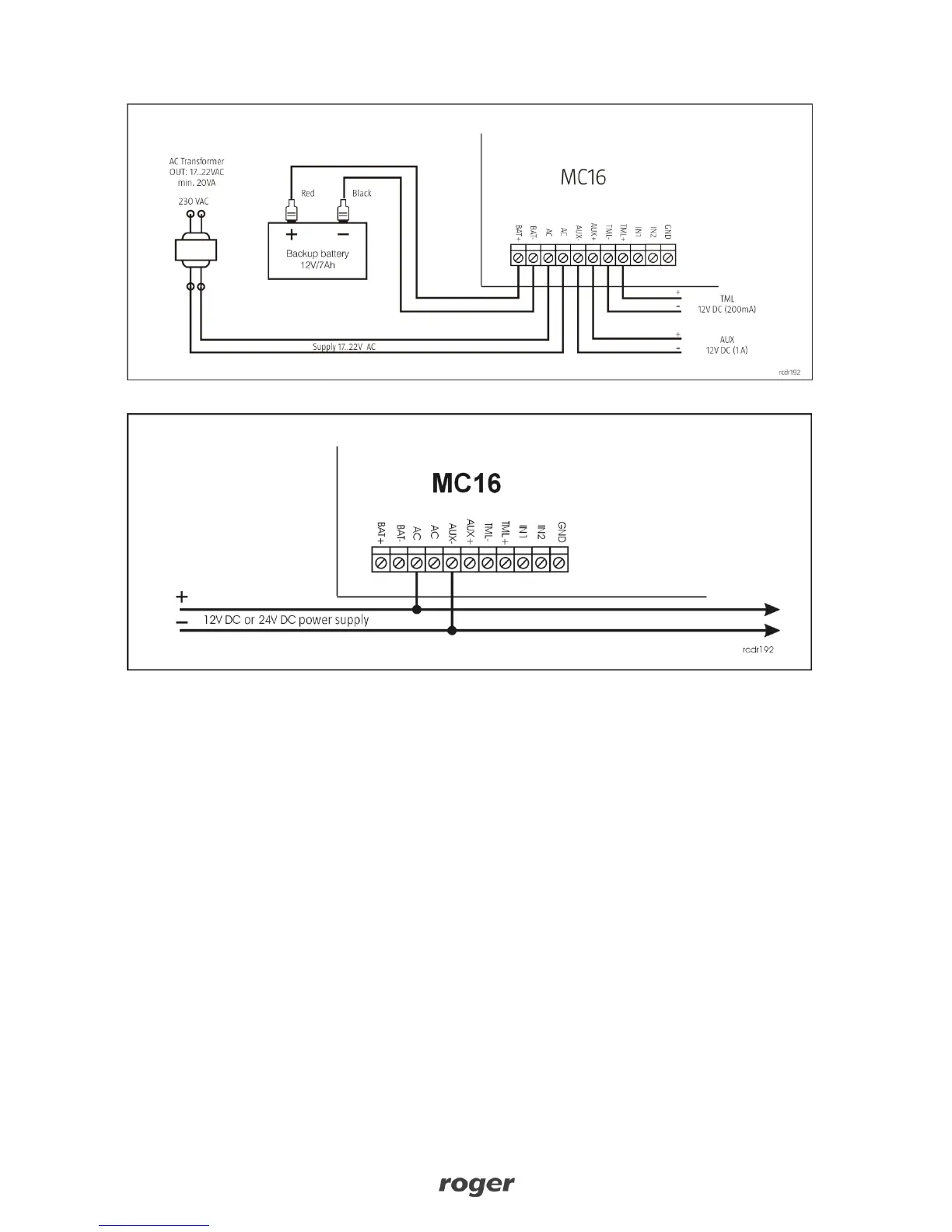

Fig. 1 MC16 supply from AC transformer.
Fig. 2 MC16 supply from 12/24VDC.
RS485 BUS
Every module or device connected to the MC16 RS485 bus must have the unique address set in 100-115
range. All power supply sources used to supply modules and devices connected to the same RS485 bus,
must be connected by dedicated (separate) wire of any diameter and optionally, grounded in any arbitrary
selected point.
