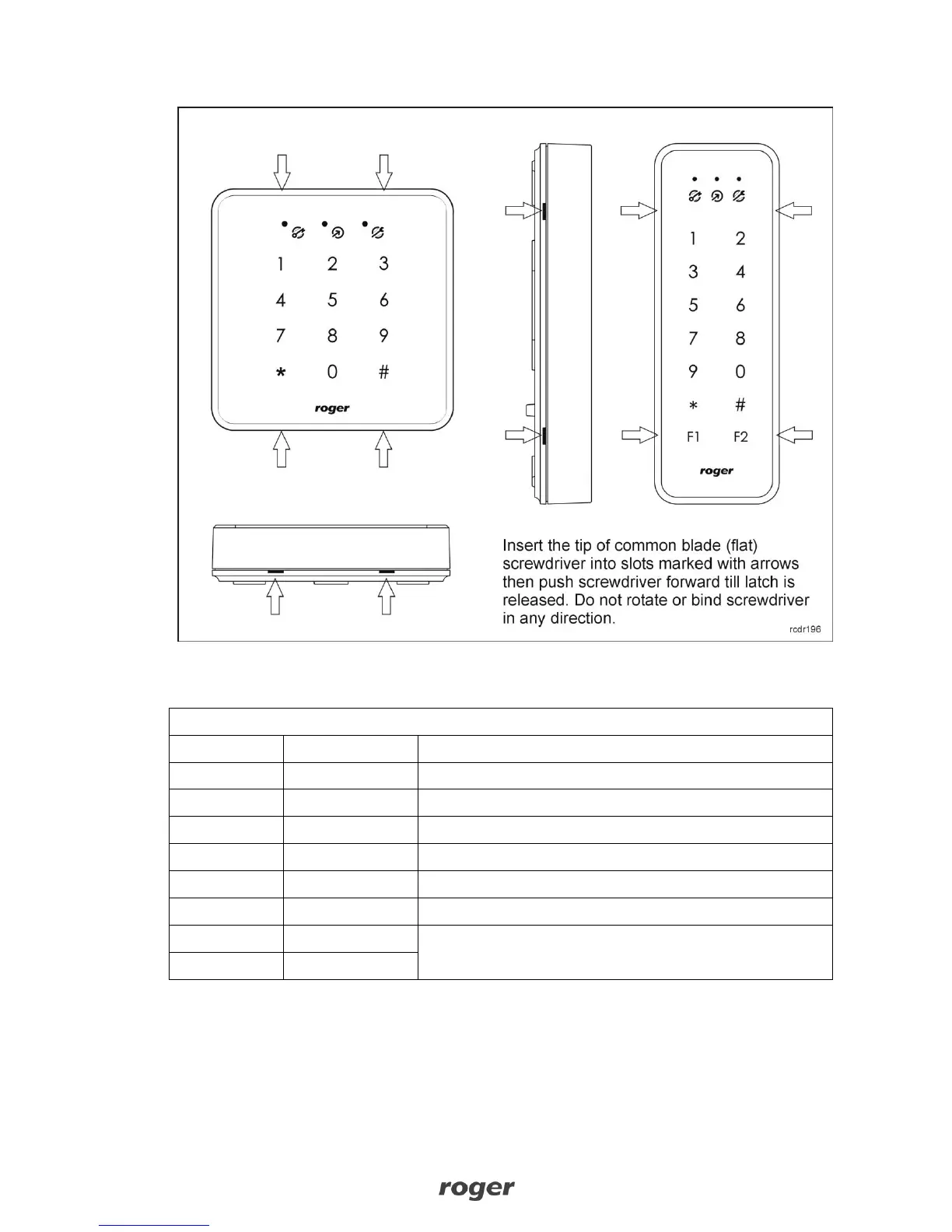

Fig. 6 PRT82MF/PRT84MF enclosure disassembly
Table 4: Connection wires
Name
Wire colour
Description
12V
Red
Supply plus
GND
Blue
Supply minus
CLK
Green
RACS CLK/DTA communication line CLK
DTA
Brown
RACS CLK/DTA communication line DTA
IN1
Yellow
IN1 input
IN2
Pink
IN2 input
TAMP
Grey
Tamper switch contacts.
TAMP
White
