USB ports (type A)
The two USB 2.0 ports on the front panel (type A) allow you to connect devices like
memory sticks.
Function keys and alphanumeric keypad
The function keys provide access to the measurement settings and functions. The
alphanumeric keypad allows you to enter alphanumeric data if necessary.
Refer to the user manual for a comprehensive description of the function keys.
Softkeys
The softkeys allow you to access measurement settings and functions.
Softkeys are dynamic. A different list of softkeys is displayed depending on the
selected function key. A list of softkeys for a certain function key is also called a menu.
Softkeys can either perform a specific function or open a dialog box.
Refer to the user manual for a comprehensive description of the function keys.
4.2 Rear Panel

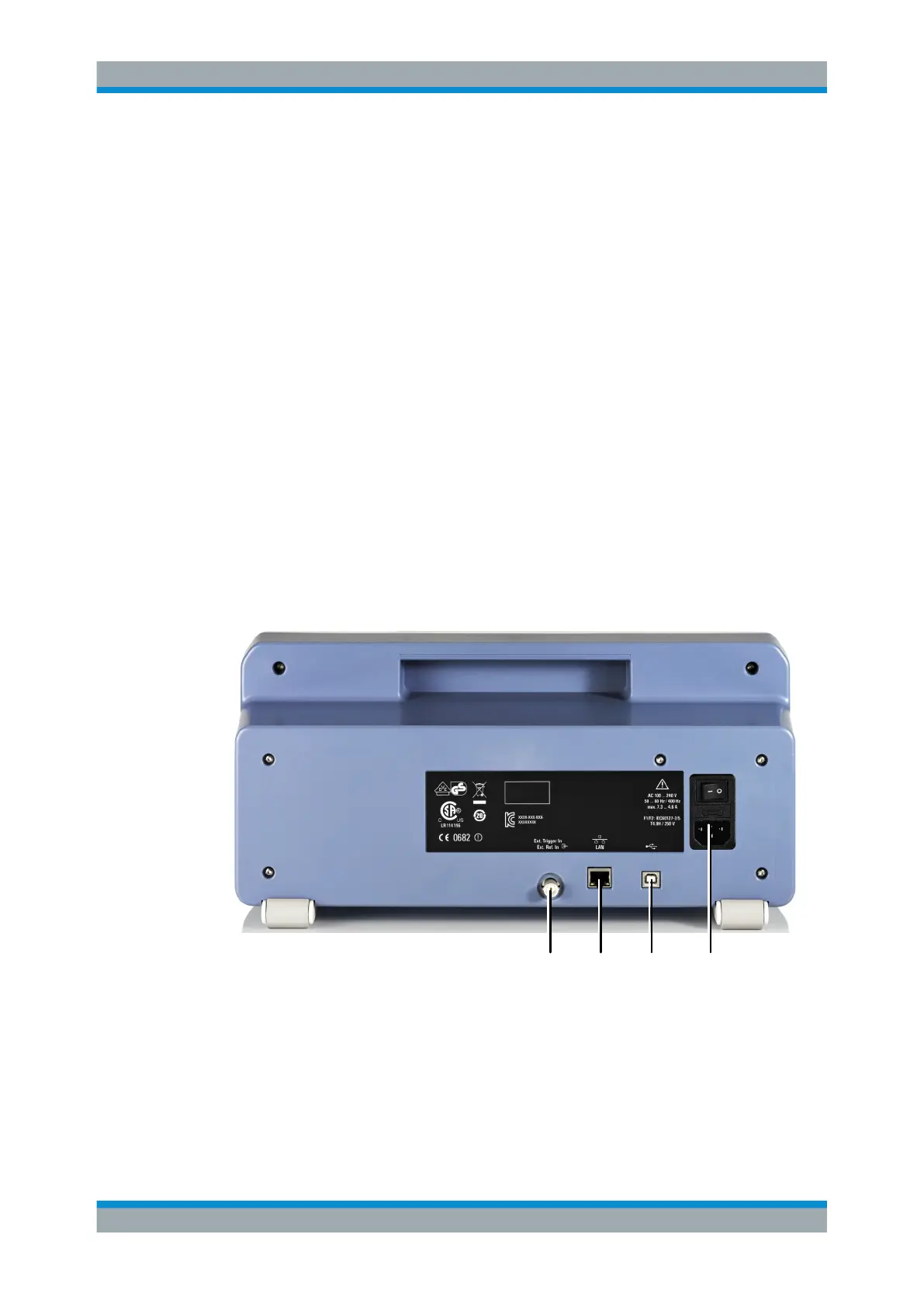

1 432
Figure 4-2: Rear panel of the R&S
FPC
1 = Trigger input / external reference
2 = LAN
3 = USB port (type B)
4 = Power supply
Rear Panel
