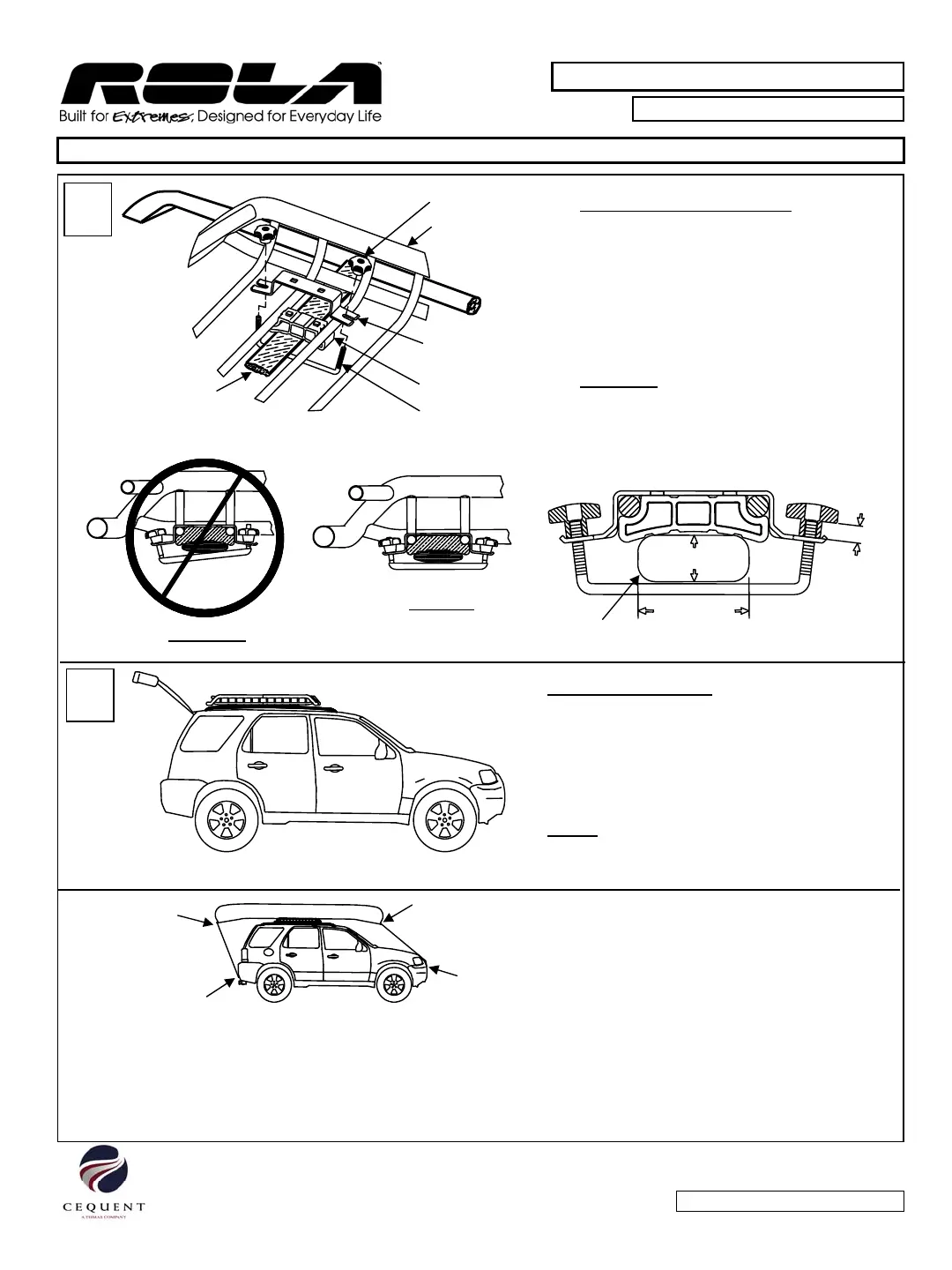

ATTACH MOUNTING CLAMPS
• Place mounting brackets on top of each
spacer block. The square holes in
brackets must engage the squares on
spacer blocks.
• Install u-bolts around cross bars and into
slots in mounting brackets.
• Install plastic knobs onto u-bolts.
• Tighten all plastic knobs firmly and evenly.
WARNING:
There must be a minimum of ½”
of threads engaged on u-bolt on all plastic
knobs.
Roof Top Carrier
59504
Page 4
CAUTION:
• As with any metal equipment it is recommended that you keep the units clean and remove road salt and debris.
• Do not allow harsh chemicals, road salt, or mud to accumulate on the product for an extended period of time.
• Wash the product with mild soap and water only and a non-abrasive cloth.
CHECK INSTALLATION
• Check clearance between cargo carrier and
your vehicle’s hatch.
• With vehicle cross bars loose, position the
carrier to clear hatch.
• Tighten vehicle’s cross bars.
• Make sure installation is secure by pulling side-
to-side and fore and aft on basket.
NOTE:
The cargo carrier should not move on
cross bars when plastic knobs are
tightened properly.
7
Plastic Knob
Mounting
Bracket
Spacer Block
cross bar
U-Bolt
CAUTION: Interference may be unavoidable on some vehicles.
Basket
For questions regarding replacement parts, the compatibility, fitting and/or use of this rack, please call your nearest ROLA™
authorized retail dealer or Cequent Consumer Products Customer Service.
INCORRECT
CORRECT
3-1/4” Max.
1-1/4” Max.
½” Min.
cross bar
• Longer loads, such as canoes or kayaks,
must be tied down to the front and rear of
vehicle.
Please read all instructions carefully before assembly, installation and/or use of this product.
