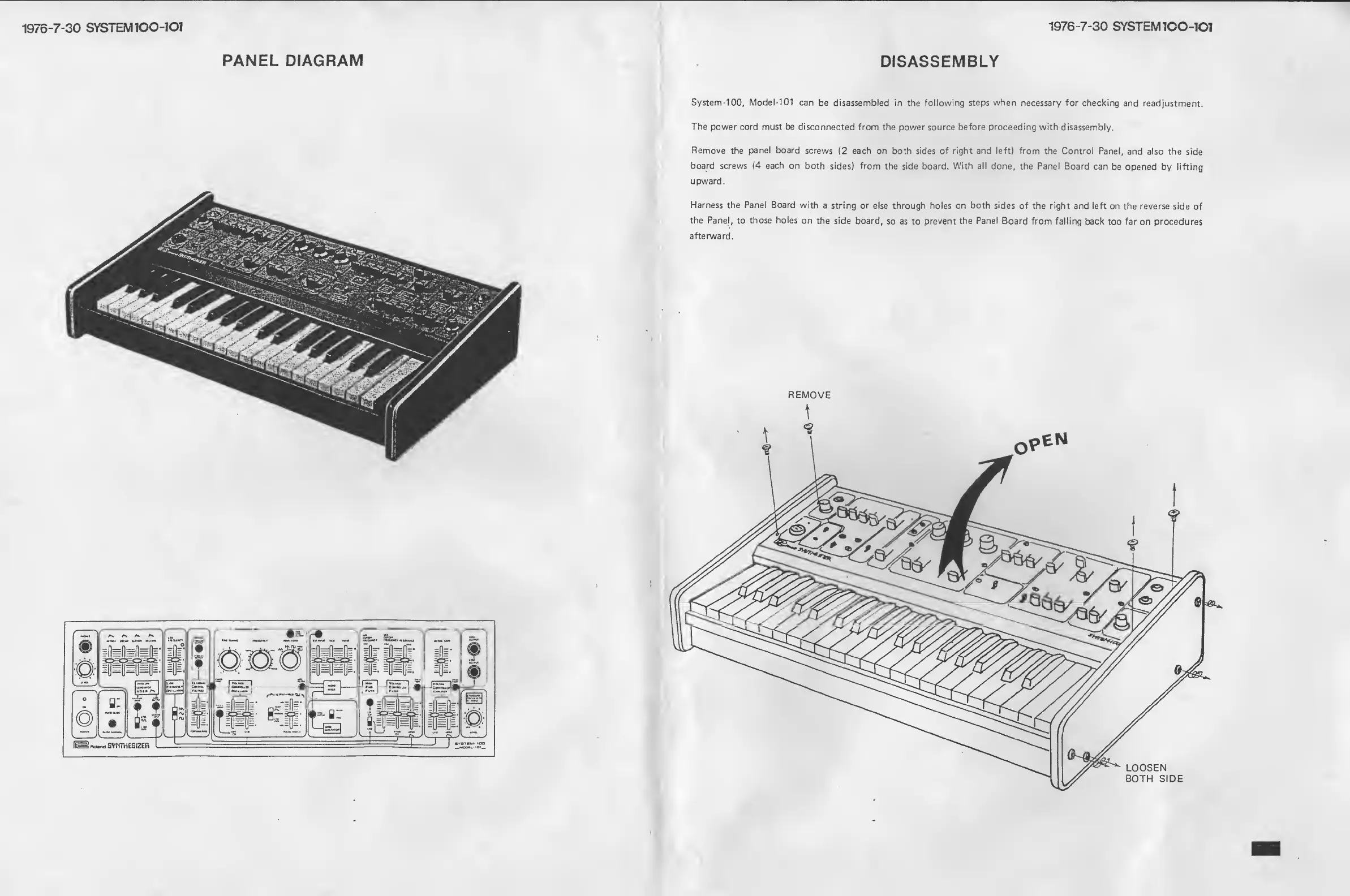

DISASSEMBLY
System-100, Model-101
can be
disassembled in the following
steps when necessary
for checking
and readjustment.
The power cord must be
disconnected from
the power source
before proceeding with
disassembly.
Remove
the
panel board
screws
(2
each on
both
sides of
right and left)
from
the Control Panel,
and
also
the
side
board
screws
(4
each on
both
sides) from
the side. board.
With all done,
the Panel Board
can be
opened by lifting
u pward
.
Harness
the
Panel
Board
with
a string or else through holes on both
sides
of
the
right
and
left
on
the reverse side
of
the Panel,
.to those
holes
on
the
side
board, so as to prevent
the
Panel
Board
from falling back
too far
on procedures
afterward.
