1976-7-30 SVSTEMIOO-IOI

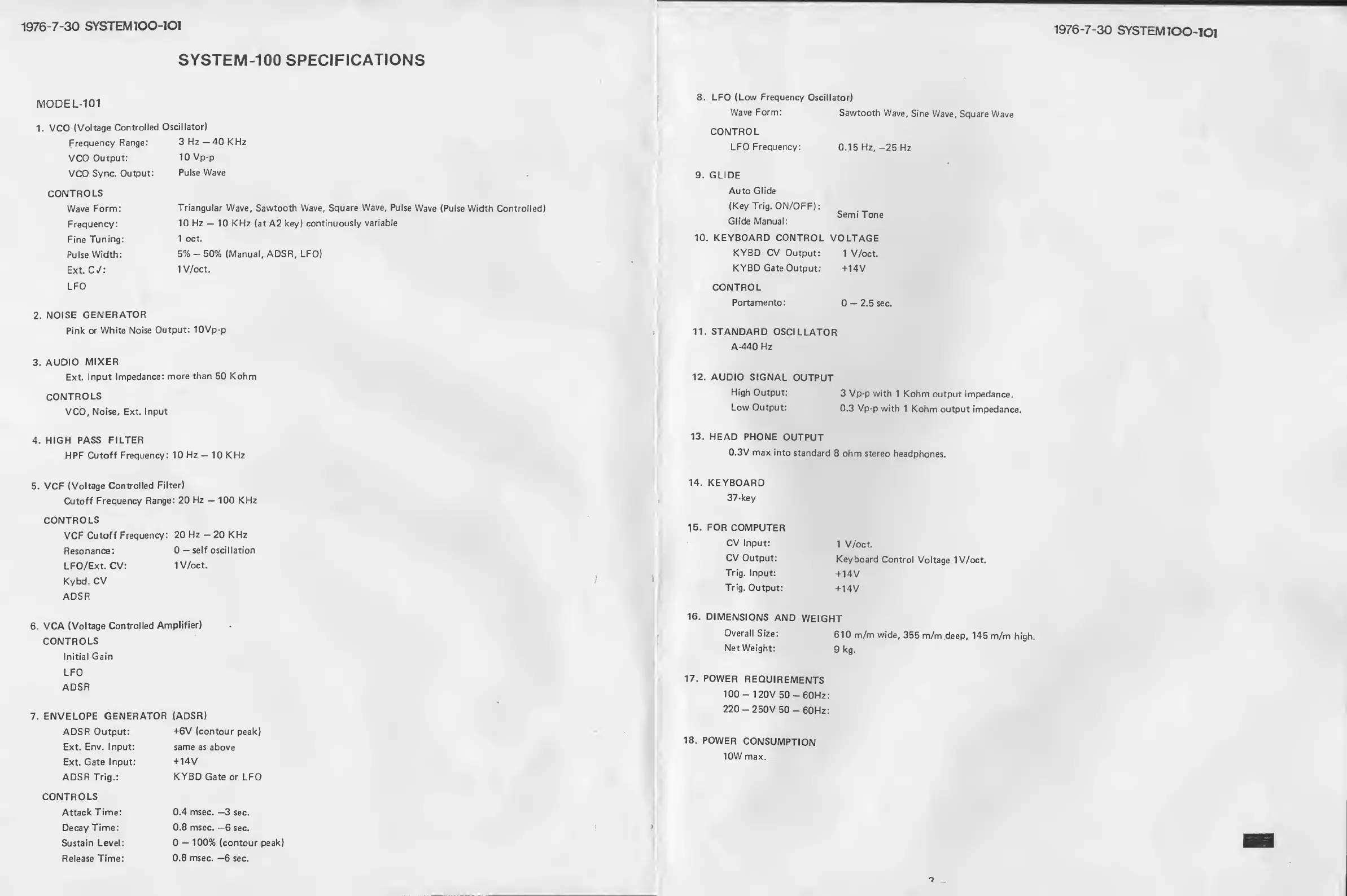

SYSTEM-100 SPECIFICATIONS
MODEL-101
1.
VCO
(Voltage
Controlled
Oscillator)
Frequency
Range:
VCO
Output:
VCO
Sync.
Output:
CONTROLS
Wave
Form:
Frequency:
Fine
Tuning:
Pulse
Width:
Ext.Cy:
LFO
3 Hz -40 KHz
lOVp-p
Pulse Wave
Triangular
Wave, Sawtooth
Wave, Square
Wave,
Pulse
Wave (Pulse
Width Controlled)
10 Hz
-
10 KHz
(at
A2 key)
continuously
variable
1 oct
5%
-
50% (IWanual.
ADSR,
LFO)
IV/oct.
2.
NOISE
GENERATOR
Pink
or
White Noise
Output:
lOVp-p
3.
AUDIO
MIXER
Ext.
Input
Impedance:
more than
50 Kohm
CONTROLS
VCO,
Noise, Ext. Input
4.
HIGH PASS
FILTER
HPF
Cutoff Frequency: 10
Hz
-
10 KHz
5. VCF
(Voltage
Controlled
Filter)
Cutoff
Frequency
Range: 20
Hz
-
100 KHz
CONTROLS
VCF
Cutoff Frequency:
20
Hz
-
20 KHz
Resonance:
—
self oscillation
LFO/Ext. CV:
IV/oct.
Kybd.
CV
ADSR
6. VGA
(Voltage Controlled
Amplifier)
CONTROLS
Initial
Gain
LFO
ADSR
7.
ENVELOPE
GENERATOR
(ADSR)
ADSR
Output:
Ext.
Env. Input:
Ext. Gate Input:
ADSR Trig.:
CONTROLS
Attack
Time:
Decay
Time:
Sustain
Level:
Release Time:
+6V (contour
peak)
same as above
+14V
KYBD Gate or LFO
0.4
msec.
—3
sec.
0.8 msec.
—6
sec.
-
100%
{contour
peak)
0.8 msec.
—6
sec.
1976-7-30
SYSTBM100-10I
8. LFO
(Low Frequency
Oscillatoti
Wave
Form:
Sawtooth
Wave,
Sine
Wave,
Square
Wave
CONTROL
LFO
Frequency:
0.1 5 Hz,
-25
Hz
9. GLIDE
Auto Glide
(Key Trig.
ON/OFF):
Glide Manual:
10.
KEYBOARD
CONTROL
VOLTAGE
KYBD CV
Output:
1 V/oct.
KYBD
Gate Output:
+14V
CONTROL
Portamento:
—
2.5 sec.
Semi
Tone
11. STANDARD
OSCILLATOR
A^O Hz
12. AUDIO
SIGNAL
OUTPUT
High
Ou^t:
3
Vp-p with
1
Kohm
output impedance.
Low
Output:
0.3 Vp-p with
1
Kohm output
impedance.
13. HEAD PHONE
OUTPUT
0.3V max into
standard
8
ohm
stereo
headphones.
14.
KEYBOARD
37
-key
15.
FOR
COMPUTER
CV Input:
1 V/oct.
CV Output:
Keyboard
Control
Voltage 1 V/oct.
Trig. Input:
+14V
Trig.
Output:
-H4V
16.
DIMENSIONS
AND
WEIGHT
Overall
Size:
610 m/m wide,
355
m/m,deep, 145
m/m
high.
Net
Weight:
9
kg.
17. POWER
REQUIREMENTS
100
-
120V
50-
60Hz:
220
-
250V
50
-
60Hz:
18. POWER
CONSUMPTION
10W
max.
