Roland Aerophone AE-10 - Location of Controls; Control Elements Overview

4
Oct. 2016 AE-10

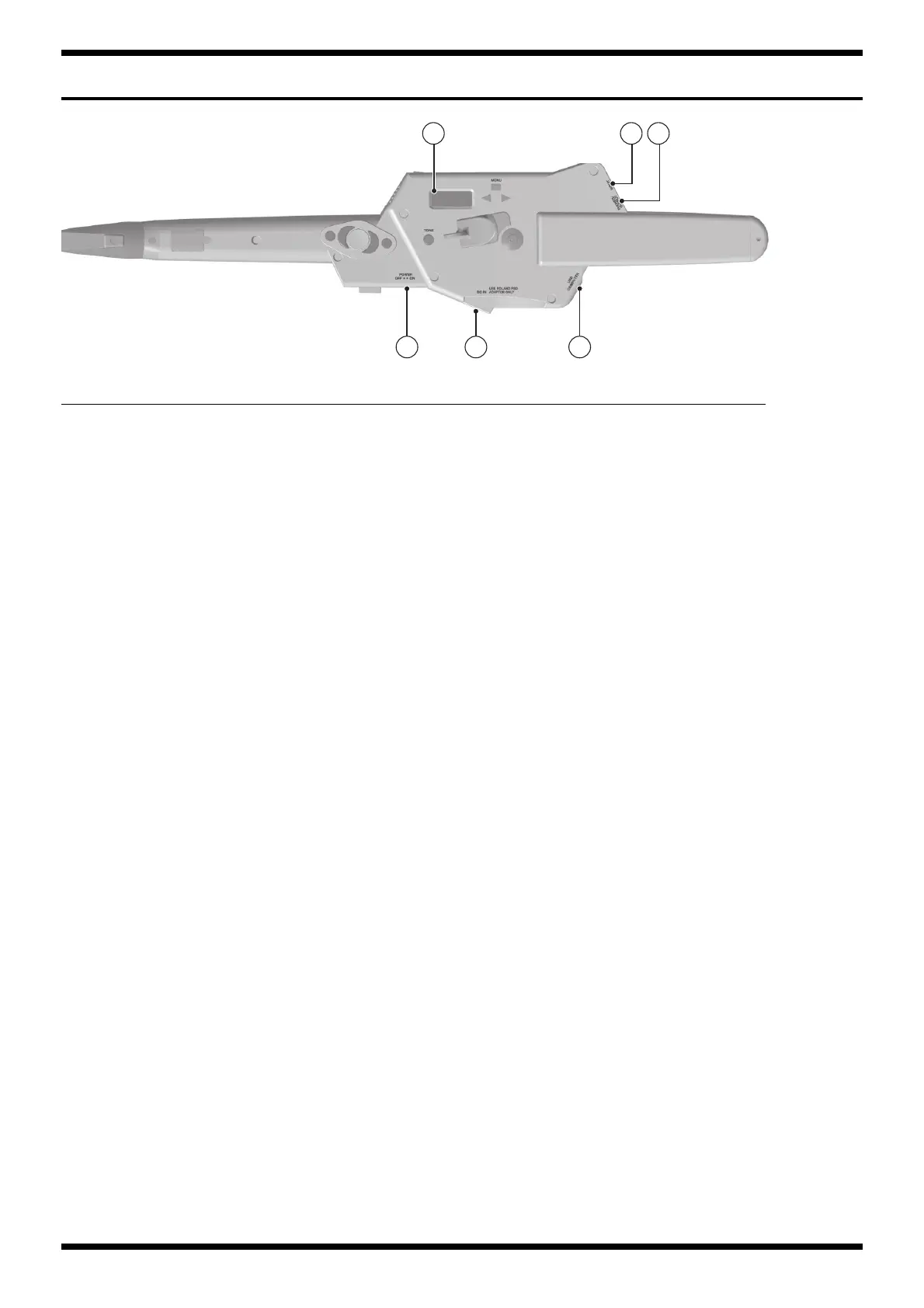

Location of Controls
fig.panel.eps
4
1 2 3
65
No. Part Code Part Name Description Q’ty
1 5100030607 LCD C-55612GNFU-LW-AEN 1
2 04452945 3.5MM JACK YKB21-5344N 1
3 13449252 6.5MM JACK YKB21-5006 (STEREO W/SW) 1
4 00230489 SLIDE SWITCH SSSF122400 1
5 13449717 ADAPTOR JACK HEC2392-01-150 1
6 5100047083 USB CONNECTOR U7F04D-B1NB 1
