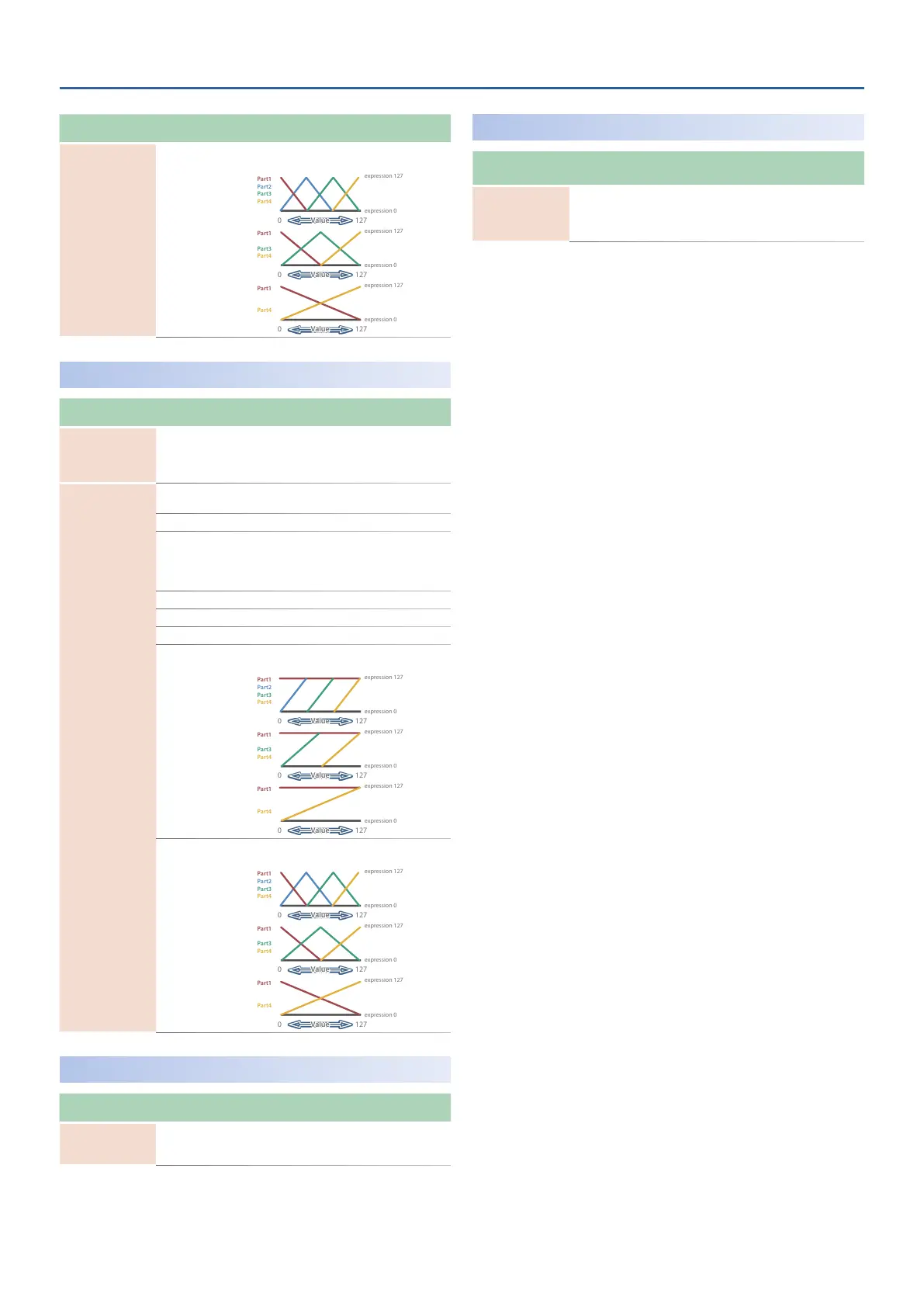

Roland AX-EDGE Parameter Guide

Program Parameters
14
Parameter
[K] [J] buttons
Value
[-] [+] buttons
Explanation
Pres
(Pressure Function) PART FADE2
Continuously control the level of parts
1–4.
Part1
Part2
Part3
Part4
expression 127
expression 0
Value0
127
Part1
Part3
Part4
expression 127
expression 0
Value0
127
Part1
Part4
expression 127
expression 0
Value0
127
CTRL MOD BAR (Control Modulation Bar)
Parameter
[K] [J] buttons
Value
[-] [+] buttons
Explanation
Source PRG, SYS
Specifies whether the parameter
controlled by the modulation bar follows
the program’s settings (PRG) or the
system settings (SYS).
Func
(Modulation Bar
Function)
Specifies the function that is assigned to the modulation bar
when CTRL MOD BAR: Source is set to “PRG.”
OFF No function is assigned.
CC01–31, 32 (OFF),
33–95
Controller number 1–31, 32, 33–95
* CC74 (Cutoff) varies in the range of -64–0,
and CC71 (Resonance), CC72 (Release), CC73
(Attack), and CC75 (Decay) vary in the range
of 0–+63.
AFT Aftertouch
BEND DOWN Lowers the pitch.
BEND UP Raises the pitch.
PART FADE1
Continuously control the level of parts
1–4.
Part1
Part2
Part3
Part4
expression 127
expression 0
Value0
127
Part1
Part3
Part4
expression 127
expression 0
Value0
127
Part1
Part4
expression 127
expression 0
Value0
127
PART FADE2
Continuously control the level of parts
1–4.
Part1
Part2
Part3
Part4
expression 127
expression 0
Value0
127
Part1
Part3
Part4
expression 127
expression 0
Value0
127
Part1
Part4
expression 127
expression 0
Value0
127
CTRL SRC SEL (Control Source Select)
Parameter
[K] [J] buttons
Value
[-] [+] buttons
Explanation
Src1–4
(Control Source (1–4))
CC01–95, BEND,
AFT
Specifies which MIDI messages modify
the tone parameters when using matrix
control.
VOICE RESERVE (Voice Reserve)
Parameter
[K] [J] buttons
Value
[-] [+] buttons
Explanation
Part1–4, Vocoder
(Voice Reserve Part1–4,
Vocoder)
1–10
Specifies the number of voices that are
reserved for each part if you attempt
to play more notes than the maximum
polyphony.

Roland AX-EDGE Specifications

General

Type	Keytar
Sound Engine	ZEN-Core
Polyphony	256 voices
Current Draw	1, 000 mA
Keyboard	49 keys (with velocity)
Preset Tones	Over 500
Effects	Reverb
Power Supply	Rechargeable Ni-MH battery or AC adapter
Parts	4 parts
Controllers	Ribbon controller
Connectors	MIDI (IN, OUT)
Bluetooth	Yes (Audio/MIDI)
