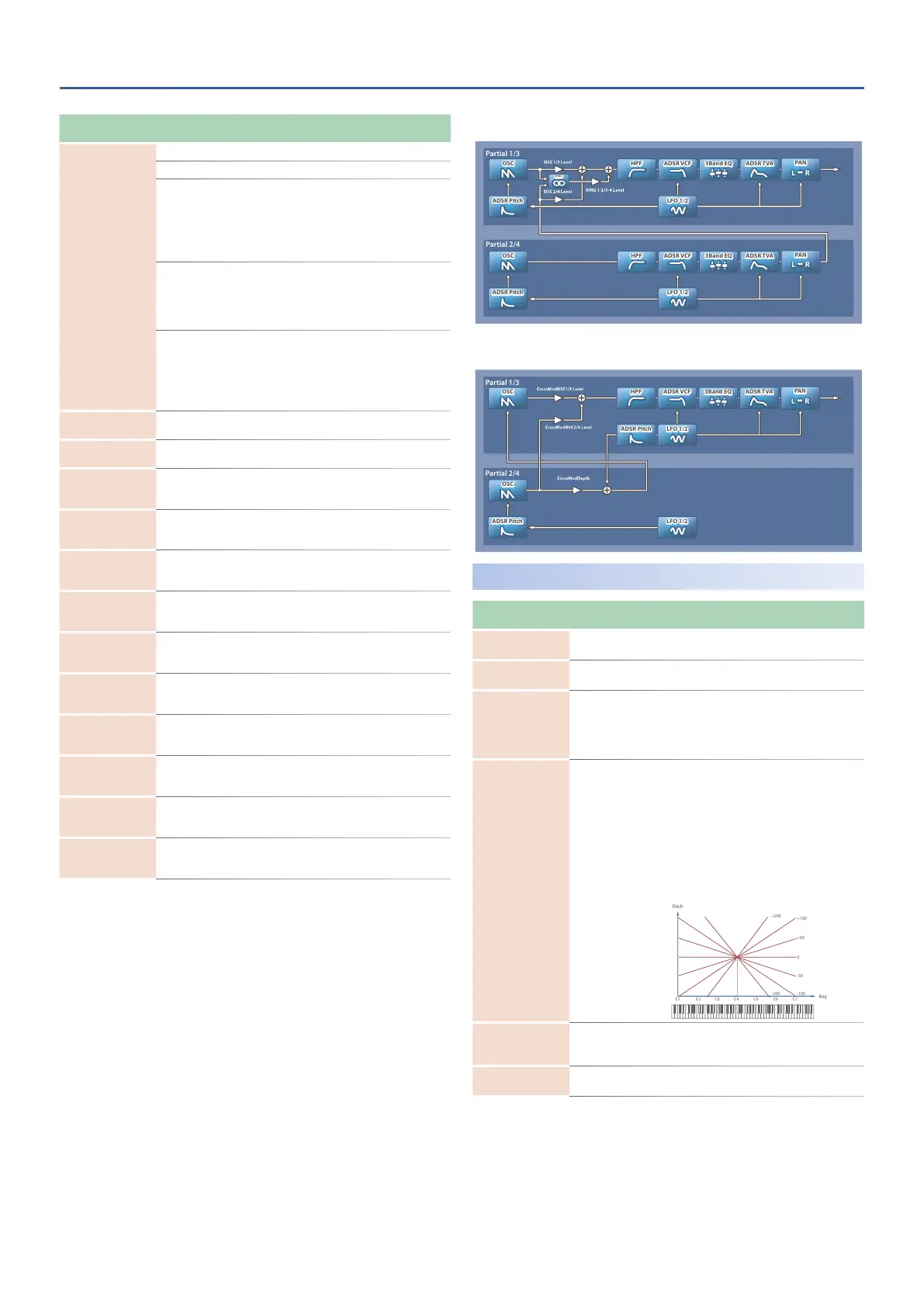

Roland AX-EDGE

Tone Parameters
23
Parameter
[K] [J] buttons
Value
[-] [+] buttons
Explanation
Structure3-4
The output sound of partial 3 is modulated by partial 4.
OFF OFF
SYNC
Implements the oscillator sync function
that is provided by an analog synthesizer.
The partial 3 oscillator is reset at intervals
of partial 4’s pitch cycle. This is effective
only if OSC Type is VirtualAnalog or
PCM-Sync.
RING
Implements the ring modulator function
that is provided by an analog synthesizer.
The output sound of partial 4 is
multiplied with partial 3.
& “RING” (p. 23)
CROSS-MOD
Implements the cross modulation
function that is provided by an analog
synthesizer.
The output sound of partial 4 is applied
as the pitch of partial 3.
& “CROSS-MOD” (p. 23)
RING1-2 Level 0–127
RING level when Structure1-2 is RING.
& “RING” (p. 23)
RING3-4 Level 0–127
RING level when Structure3-4 is RING.
& “RING” (p. 23)
RING OSC1 Level 0–127
Effective when Structure1-2 is RING. Sets
the partial 1 OSC level.
& “RING” (p. 23)
RING OSC2 Level 0–127
Effective when Structure1-2 is RING. Sets
the partial 2 OSC level.
& “RING” (p. 23)
RING OSC3 Level 0–127
Effective when Structure3-4 is RING. Sets
the partial 3 OSC level.
& “RING” (p. 23)
RING OSC4 Level 0–127
Effective when Structure3-4 is RING. Sets
the partial 4 OSC level.
& “RING” (p. 23)
CrossMod1-2
Depth
0–9600 [cent]
Cross Modulation Depth when
Structure1-2 is CROSS-MOD.
& “CROSS-MOD” (p. 23)
CrossMod3-4
Depth
0–9600 [cent]
Cross Modulation Depth when
Structure3-4 is CROSS-MOD.
& “CROSS-MOD” (p. 23)
CrossMod OSC1
Level
0–127
Effective when Structure1-2 is CROSS-
MOD. Sets the partial 1 OSC level.
& “CROSS-MOD” (p. 23)
CrossMod OSC2
Level
0–127
Effective when Structure1-2 is CROSS-
MOD. Sets the partial 2 OSC level.
& “CROSS-MOD” (p. 23)
CrossMod OSC3
Level
0–127
Effective when Structure3-4 is CROSS-
MOD. Sets the partial 3 OSC level.
& “CROSS-MOD” (p. 23)
CrossMod OSC4
Level
0–127
Effective when Structure3-4 is CROSS-
MOD. Sets the partial 4 OSC level.
& “CROSS-MOD” (p. 23)23
RING
ADSR VCF
ADSR VCF
ADSR TVA
ADSR TVA
PAN
PAN
3Band EQ
3Band EQ
L
#
R
L
#
R
ADSR Pitch
ADSR Pitch
LFO 1/2
LFO 1/2
HPF
HPF
OSC
OSC
RING
Partial 1/3
Partial 2/4
CROSS-MOD
ADSR VCF ADSR TVA
PAN
3Band EQ
L
#
R
ADSR Pitch
ADSR Pitch
LFO 1/2
LFO 1/2
HPFOSC
OSC
Partial 1/3
Partial 2/4
Pitch
Parameter
[K] [J] buttons
Value
[-] [+] buttons
Explanation
Coarse Tune -48–+48 [semitone]
Adjusts the pitch of the partial’s sound up
or down in semitone steps (+/-4 octaves).
Fine Tune -50–+50 [cent]
Adjusts the pitch of the partial’s sound up
or down in 1-cent steps (+/-50 cents).
Random Pitch
Depth
0–1200 [cent]
This specifies the width of random pitch
deviation that will occur each time a key
is pressed.If you do not want the pitch to
change randomly, set this to “0.”
* One cent is 1/100th of a semitone.
Pitch Keyfollow -200–+200
This specifies the amount of pitch change
that will occur when you play a key one
octave higher (i.e., 12 keys upward on the
keyboard).
If you want the pitch to rise one octave
as on a conventional keyboard, set this to
“+100.” If you want the pitch to rise two
octaves, set this to “+200.” Conversely, set
this to a negative (-) value if you want the
pitch to fall. With a setting of “0,” all keys
will produce the same pitch.
C4C3C2C1 C5 C6 C7
0
+50
+100
+200
-50
-100-200
Key
Pitch
Vibrato Pitch Sens -100–+100
Specifies the amount by which the
Pitch Depth of LFO1 is changed by the
program’s Modify Vibrato Depth.
Stereo Detune -50–+ 50 [cent]
Specifies the detune between L
#
R when
outputting in stereo.
