Roland Blues Cube Hot User Manual

8

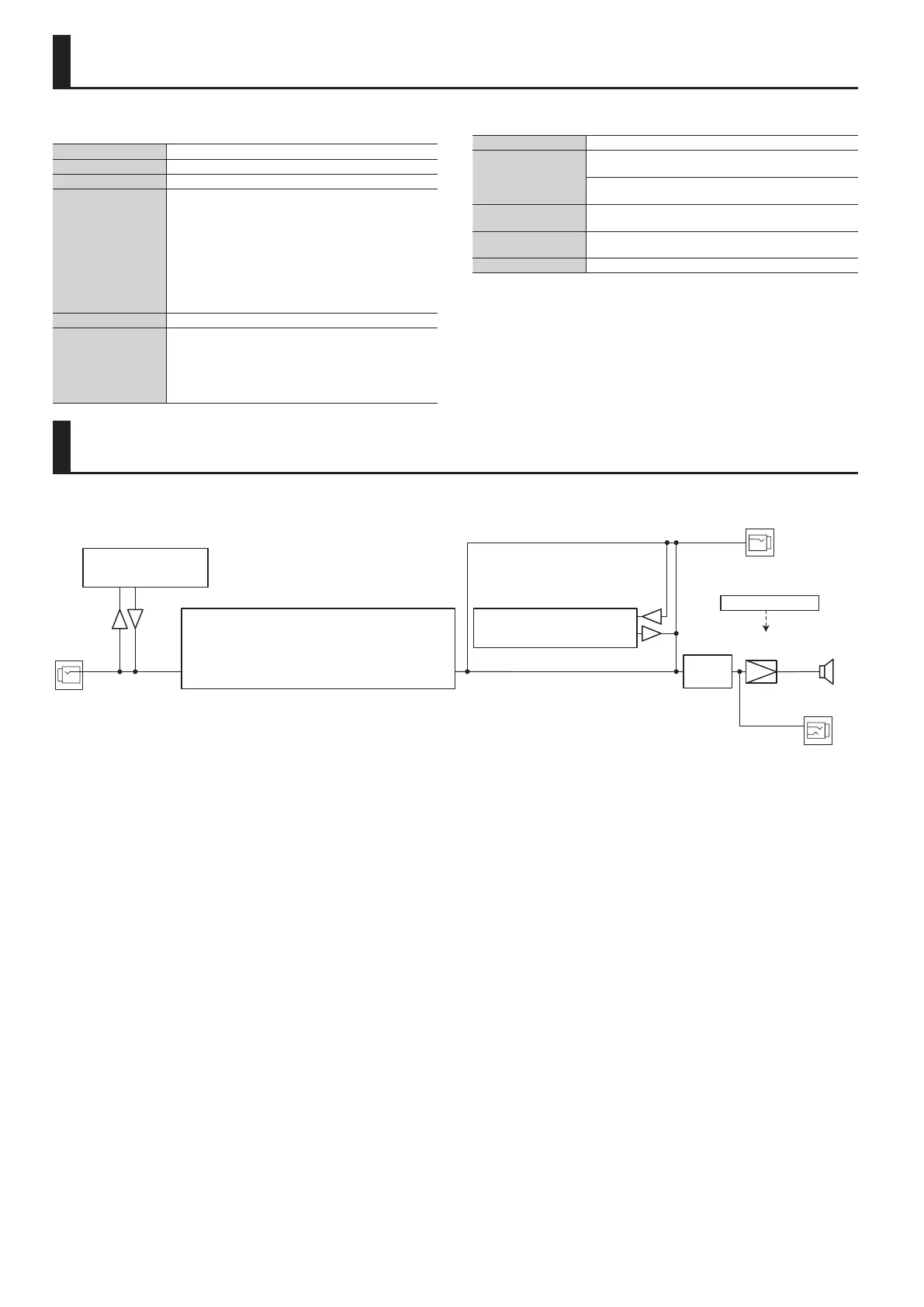

Block Diagram
SPEAKER
PHONES
LINE OUT
USB
-PRE (Windows)
-Input/Output 3,4 (Mac)
MASTER
AMPLIFIER
INPUT
POWER CONTROL
POWER
AMP
USB
-POST (Windows)
-Input 1,2/Stereo Out(1,2) (Mac)
* 1
* 2
* 1: No sound will be output from the speaker when a plug is connected to the PHONS jack.
* 2: No signal from the USB will be output from the speaker.
Main Specications
Roland Blues Cube Hot: Guitar Amplier
Rated Power Output 30 W
Nominal Input Level INPUT: -10 dBu (1 MΩ)
Speaker 30 cm (12 inches) x 1
Controls
[POWER] switch
[BOOST] button
[TONE] button
[VOLUME] knob
[BASS] knob
[MIDDLE] knob
[TREBLE] knob
[REVERB] knob
[MASTER] knob
[POWER CONTROL] switch: 0.5 W, 5 W, 15 W, MAX
Indicators BOOST, TONE, POWER
Connectors
INPUT jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
FOOT SW (TIP: BOOST, RING: TONE) jack: 1/4-inch TRS phone type
REC OUT
O
port: USB type B
AC IN jack
Power Consumption 33 W
Dimensions
433 (W) x 239 (D) x 450 (H) mm
17-1/16 (W) x 9-7/16 (D) x 17-3/4 (H) inches
433 (W) x 239 (D) x 413 (H) mm
17-1/16 (W) x 9-7/16 (D) x 16-5/16 (H) inches (excluding protrusions)
Weight
12.6 kg
27 lbs 13 oz
Accessories
Owner’s manual
Power cord
Options (sold separately) Footswitch (BOSS FS-5L, BOSS FS-6, BOSS FS-7)
* 0 dBu = 0.775 Vrms
* In the interest of product improvement, the specications and/
or appearance of this unit are subject to change without prior
notice.

Roland Blues Cube Hot Specifications

General

Power Output	30W
Type	Solid State
Effects	Reverb
Channels	2 (Clean and Lead)
Controls	Boost
Inputs	1 x 1/4" (Guitar)
Outputs	1 x 1/4" (Headphones)
Footswitch	Optional
