Roland CUBE 30 Service Notes

4
Jul.2002

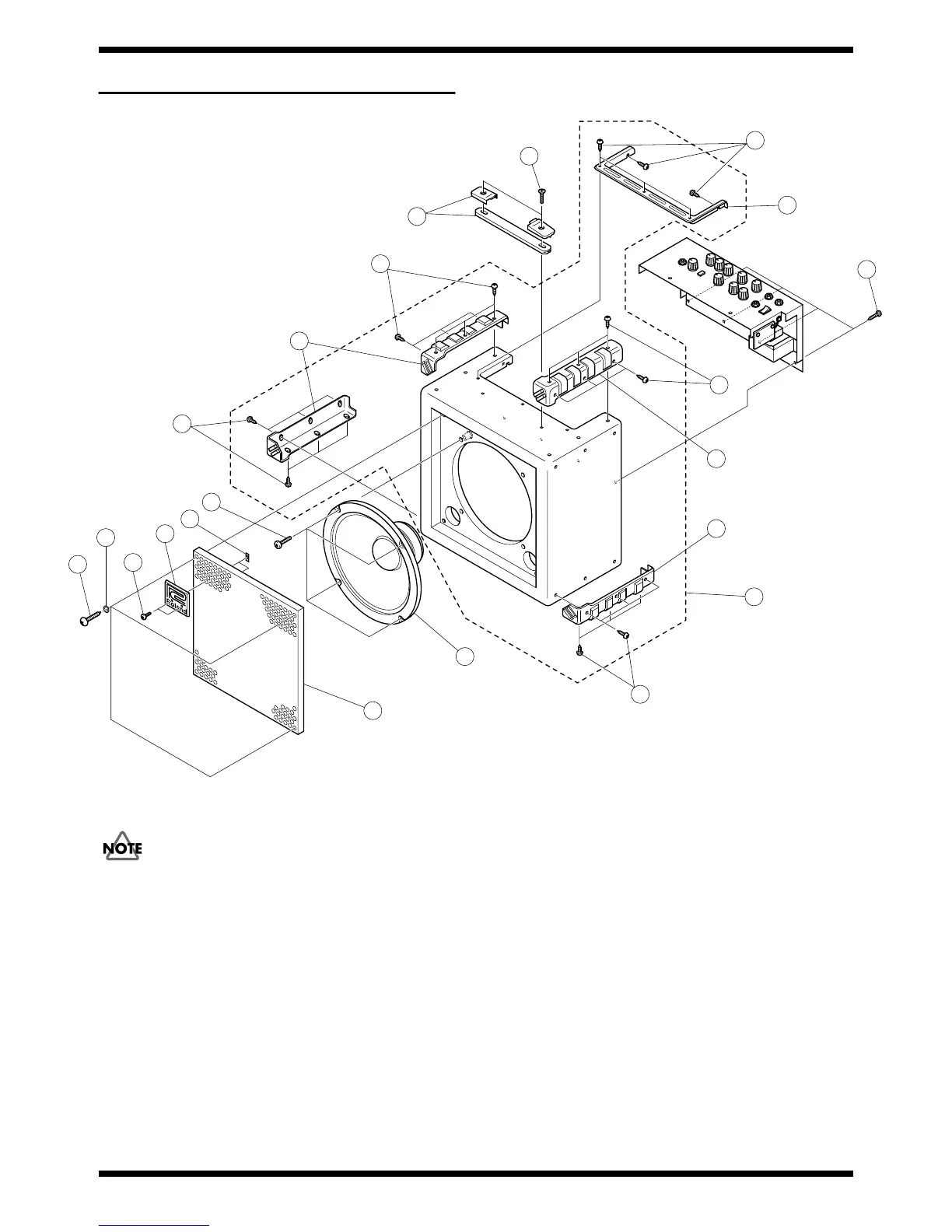

EXPLODED VIEW(CABNET)
fig.explo-1
Don’t keep a speaker cable from contact a Heatsink and a primary power
supply unit when equipping with a chassis.
c
5
f
4
3
4
4
6
7
2
e
e
e
e
d
b
1
a
f
e
g

Roland CUBE 30 Specifications

General

Power Output	30W
Inputs	1 x 1/4" (Guitar), 1 x 1/8" (Aux In)
Outputs	1 x 1/4" (Headphones/Line Out)
Dimensions	17.5 x 16.5 x 9.5 inches
Weight	22 lbs
Amp Modeling	Yes
Speaker	10-inch
Effects	Chorus, Flanger, Phaser, Tremolo, Delay, Reverb
EQ	3-band (Bass, Middle, Treble)
Technology	Solid State
Controls	Gain, Volume, Bass, Middle, Treble
