8
Dec. 2017 E-X20, E-X20A

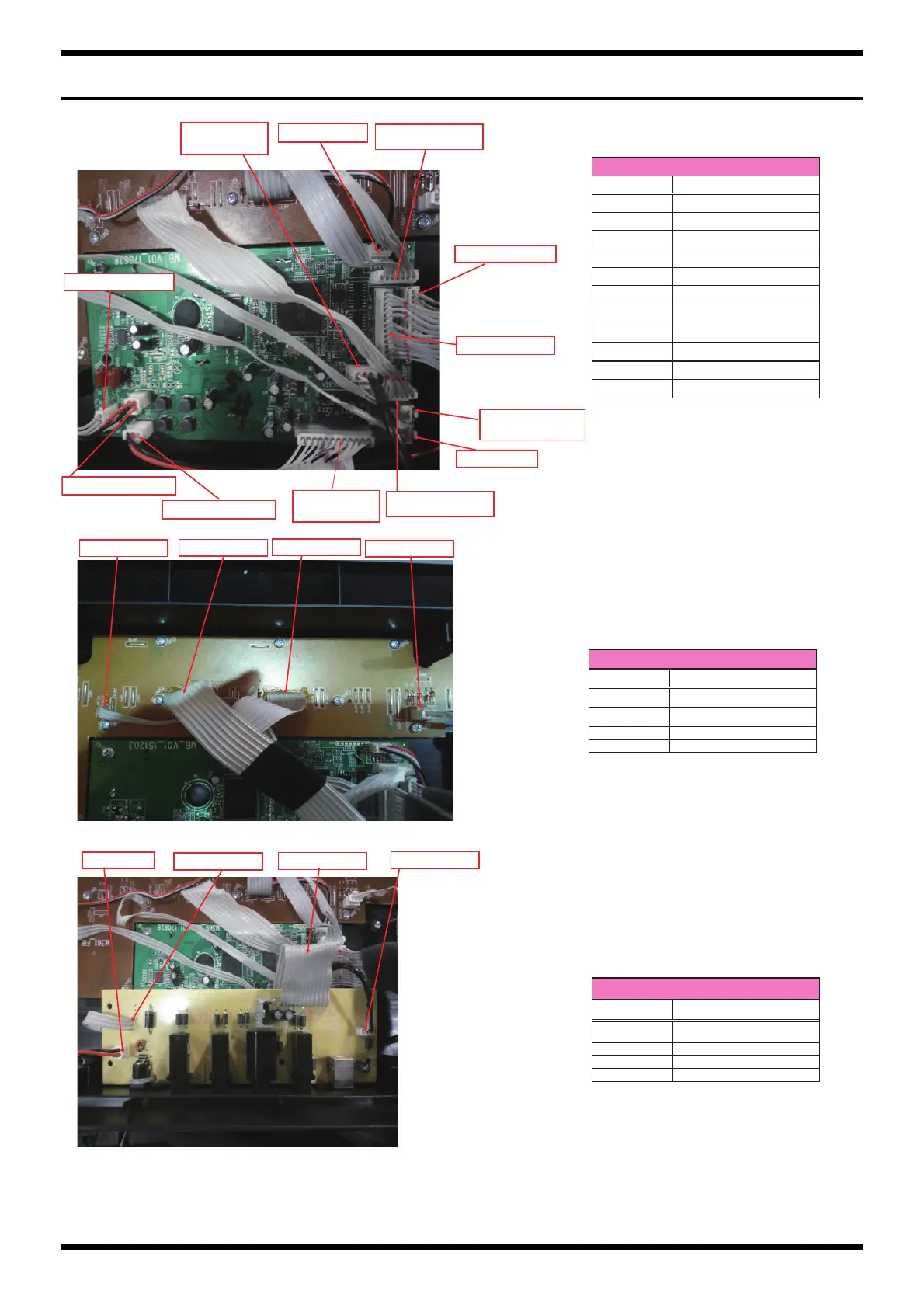

Connecting Wirings
fig.wiring.eps
Main board to other board connection
Main board other board
CN5 Function board BUSS1
CN12 Function board BUSS2
CN6
Pitchbend
CN8 Volume board BUSS4
CN2 IO board BUSS2
CN13
Left keyboard
CN14
Right keyboard
CN4
Left speaker
CN7
Right speaker
CN1 IO board BUSS1
CN3 IO board BUSS3
`
Function board to other board connection
Function board other board
BUSS1 MB CN5
CN3
Encoder
BUSS2 MB CN12
BUSS3 MB CN16
IO board to other connection
IO board other
CN4
Battery
BUSS1 MB CN1
BUSS2 MB CN2
CN3 MB CN3
Left KEY CN13 to CN13
Leftt speaker cable to CN4
Function board BUSS1 to
CN5
Volume cable to CN8
Right KEY CN14 to CN14
Function board BUSS3 to
CN16
Encoder cable to CN3
Battery cable to
IO Board BUSS1 to MB
CN1
IO Board BUSS2 to MB CN2
Right speaker cable to CN7
IO Board CN3 to MB
CN3
Pitchbend cable to CN6
Function board BUSS2 to
MB CN16 to BUSS3
MB CN12 to BUSS2
MB CN5 to BUSS1
MB CN2 to BUSS2
MB CN1 to BUSS1
MB CN3 to CN3
