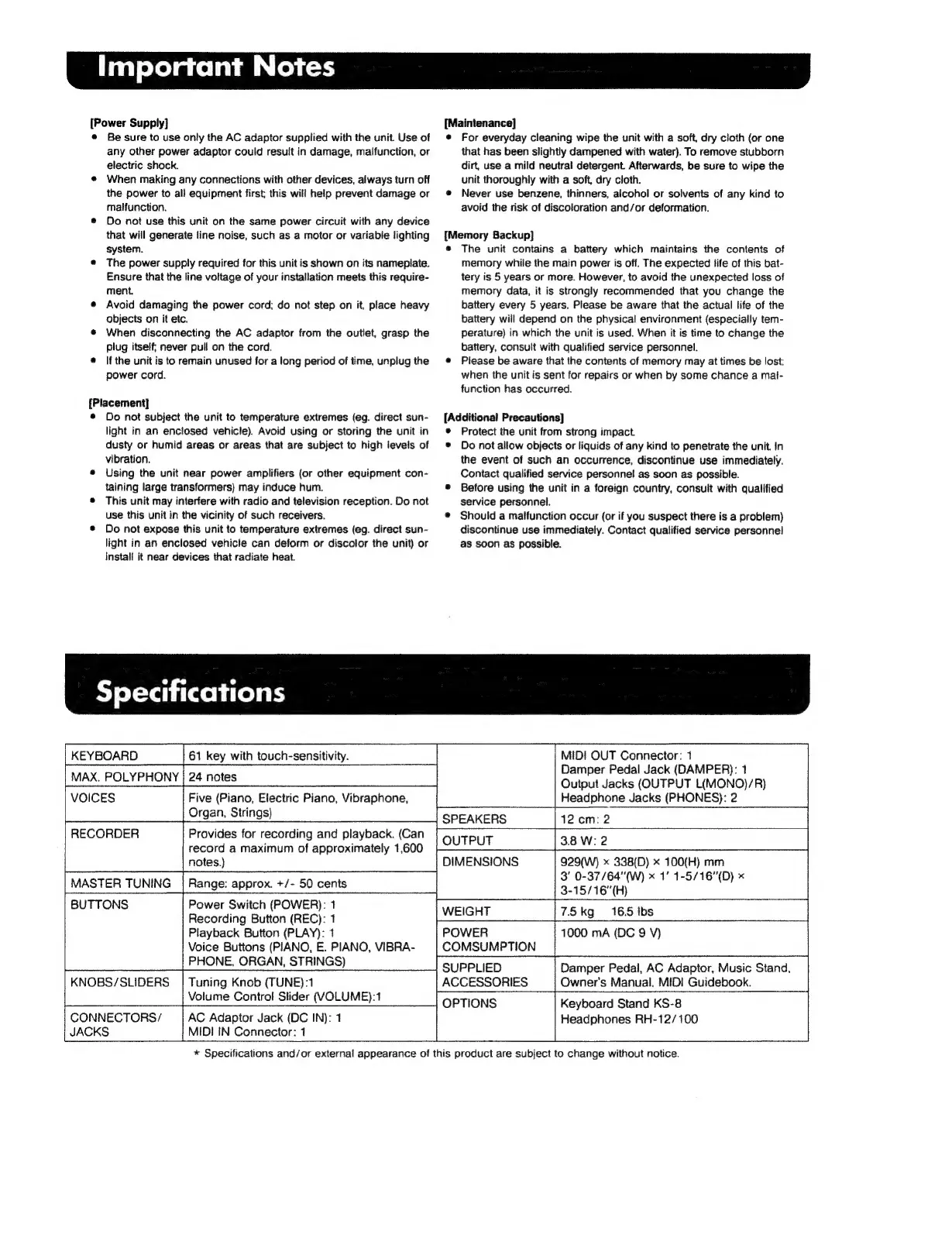

Important
Notes
[Power
Supply]
е
Be
sure
to
use
only
the
AC
adaptor
supplied
with
the
unit.
Use
of
any
other
power
adaptor
could
result
in
damage,
malfunction,
or
electric
shock.
*
When
making
any
connections
with
other
devices,
always
turn
off
the
power
to
all
equipment
first;
this
will
help
prevent
damage
or
malfunction.
*
Do
not
use
this
unit
on
the
same
power
circuit
with
any
device
that
will
generate
line
noise,
such
as
a
motor
or
variable
lighting
System.
*
The
power
supply
required
for
this
unit
is
shown
on
its
nameplate.
Ensure
that
the
line
voltage
of
your
installation
meets
this
require-
ment.
*
Avoid
damaging
the
power
cord;
do
not
step
on
it,
place
heavy
Objects
on
it
etc.
*
When
disconnecting
the
AC
adaptor
from
the
outlet,
grasp
the
plug
itself,
never
pull
on
the
cord.
e
Ifthe
unit
is
to
remain
unused
for
a
long
period
of
time,
unplug
the
power
cord.
[Placement]
*
Do
not
subject
the
unit
to
temperature
extremes
(eg.
direct
sun-
light
in
an
enclosed
vehicle).
Avoid
using
or
storing
the
unit
in
dusty
or
humid
areas
or
areas
that
are
subject
to
high
levels
of
vibration.
*
Using
the
unit
near
power
amplifiers
(or
other
equipment
con-
taining
large
transformers)
may
induce
hum.
*
This
unit
may
interfere
with
radio
and
television
reception.
Do
not
use
this
unit
in
the
vicinity
of
such
receivers.
*
Do
not
expose
this
unit
to
temperature
extremes
(eg.
direct
sun-
light
in
an
enclosed
vehicle
can
deform
or
discolor
the
unit)
or
install
it
near
devices
that
radiate
heat.
[Maintenance]
*
For
everyday
cleaning
wipe
the
unit
with
a
soft,
dry
cloth
(or
one
that
has
been
slightly
dampened
with
water).
To
remove
stubborn
dirt,
use
a
mild
neutral
detergent.
Afterwards,
be
sure
to
wipe
the
unit
thoroughly
with
a
soft,
dry
cloth.
*
Never
use
benzene,
thinners,
alcohol
or
solvents
of
any
kind
to
avoid
the
risk
of
discoloration
and/or
deformation.
[Memory
Backup]
*
The
unit
contains
a
battery
which
maintains
the
contents
of
memory
while
the
main
power
is
off.
The
expected
life
of
this
bat-
tery
is
5
years
or
more.
However,
to
avoid
the
unexpected
loss
of
memory
data,
it
is
strongly
recommended
that
you
change
the
battery
every
5
years.
Please
be
aware
that
the
actual
life
of
the
battery
will
depend
on
the
physical
environment
(especially
tem-
perature)
in
which
the
unit
is
used.
When
it
is
time
to
change
the
battery,
consult
with
qualified
service
personnel.
*
Please
be
aware
that
the
contents
of
memory
may
at
times
be
lost;
when
the
unit
ís
sent
for
repairs
or
when
by
some
chance
a
mal-
function
has
occurred.
[Additional
Precautions]
*
Protect
the
unit
from
strong
impact.
*
Do
not
allow
objects
or
liquids
of
any
kind
to
penetrate
the
unit.
In
the
event
of
such
an
occurrence,
discontinue
use
immediately.
Contact
qualified
service
personnel
as
soon
as
possible.
*
Before
using
the
unit
in
a
foreign
country,
consult
with
qualified
service
personnel.
*
Should
a
malfunction
occur
(or
if
you
suspect
there
is
a
problem)
discontinue
use
immediately.
Contact
qualified
service
personnel
as
soon
as
possible.
Specifications
KEYBOARD
61
key
with
touch-sensitivity.
MIDI
OUT
Connector:
1
Damper
Pedal
Jack
(DAMPER):
1
MAX.
POLYPHONY
VOICES
RECORDER
MASTER
TUNING
BUTTONS
KNOBS/SLIDERS
CONNECTORS/
JACKS
24
notes
Five
(Piano,
Electric
Piano,
Vibraphone,
Organ,
Strings)
Provides
for
recording
and
playback.
(Can
record
a
maximum
of
approximately
1,600
notes.)
Range:
approx.
*/-
50
cents
Power
Switch
(POWER):
1
Recording
Button
(REC):
1
Playback
Button
(PLAY):
1
Voice
Buttons
(PIANO,
E.
PIANO,
VIBRA-
PHONE,
ORGAN,
STRINGS)
Tuning
Knob
(TUNE):1
Volume
Control
Slider
(VOLUME):1
AC
Adaptor
Jack
(DC
IN):
1
MIDI
IN
Connector:
1
Output
Jacks
(OUTPUT
L(MONO)/R)
Headphone
Jacks
(PHONES):
2
SPEAKERS
OUTPUT
3.8
W:
2
DIMENSIONS
WEIGHT
POWER
COMSUMPTION
SUPPLIED
ACCESSORIES
12
cm:
2
929(W)
x
338(D)
x
100(H)
mm
3'
0-37/64"(W)
x
1"
1-5/16"(D)
x
3-15/16"(H)
-
7.5kg
16.5
lbs
1000
mA
(DC
9
V)
Damper
Pedal,
AC
Adaptor,
Music
Stand,
Owner's
Manual,
MIDI
Guidebook.
OPTIONS
1
Keyboard
Stand
KS-8
Headphones
RH-12/100
*
Specifications
and/or
external
appearance
of
this
product
are
subject
to
change
without
notice.
