Panel Descriptions

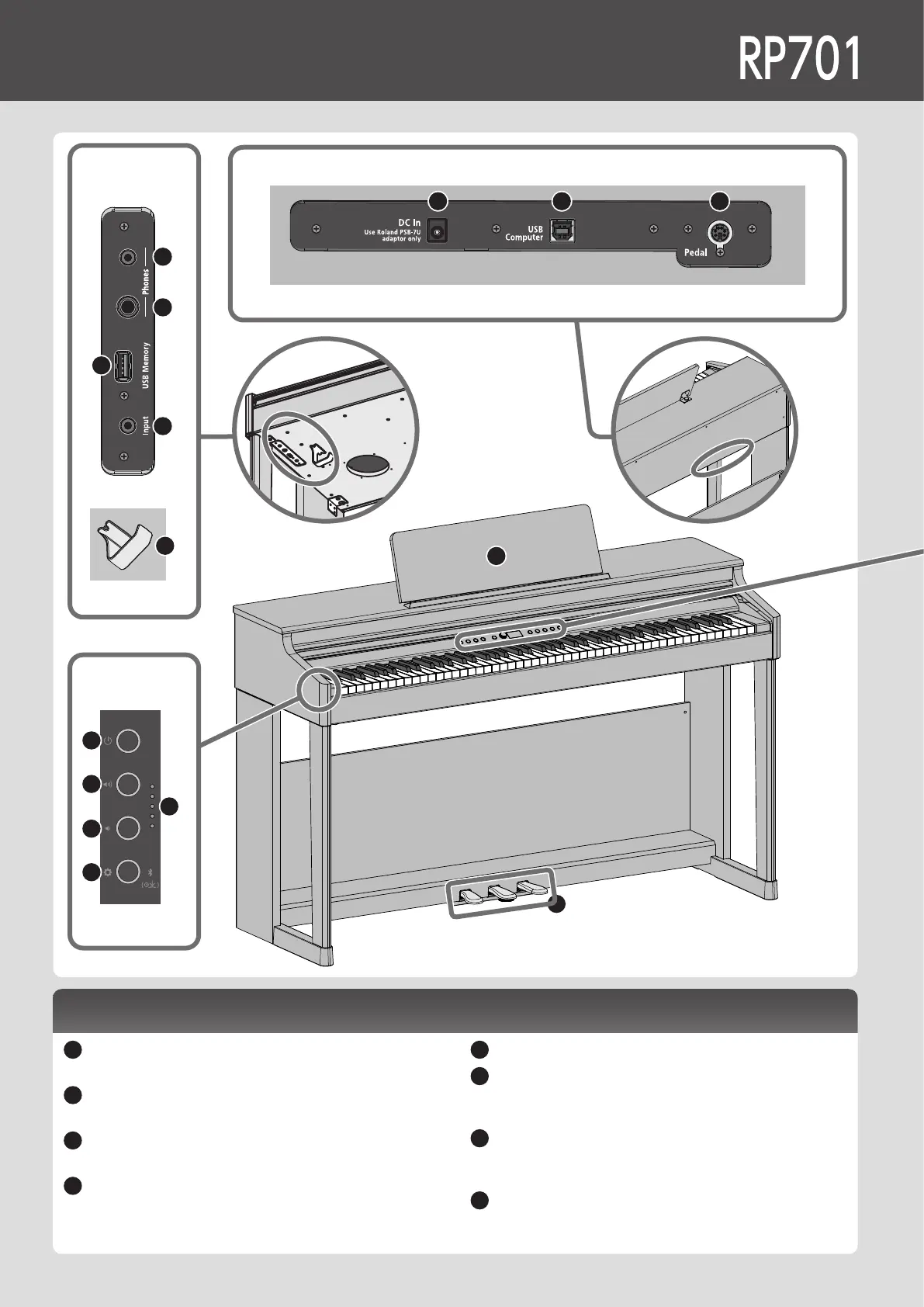

Bottom panel
Operating area 1
1
2
3
4
5
26
27
19 2018
Bottom panel
18
USB Computer port
Connect this to your computer for music production and editing. (p. 20)
19
DC In jack
Connect the included AC adaptor here. (p. 6)
20
Pedal jack
Connect the pedal cord here. (p. 20)
21
USB Memory port
Connect a USB ash drive here for audio recording or for
playing back songs from the USB ash drive. (p. 20)
22
Phones jacks (stereo mini)
23
Headphone jack (stereo 1/4”)
Connect headphones here to play the piano without
producing sound from the internal speakers. (p. 7)
24
Input jack (stereo mini)
Sound from your audio player can be input here and heard
from the piano. (p. 20)
25
Headphone hook
You can leave your headphones here when not using them. (p. 7)
Bottom panel
24
25
23
22
21
