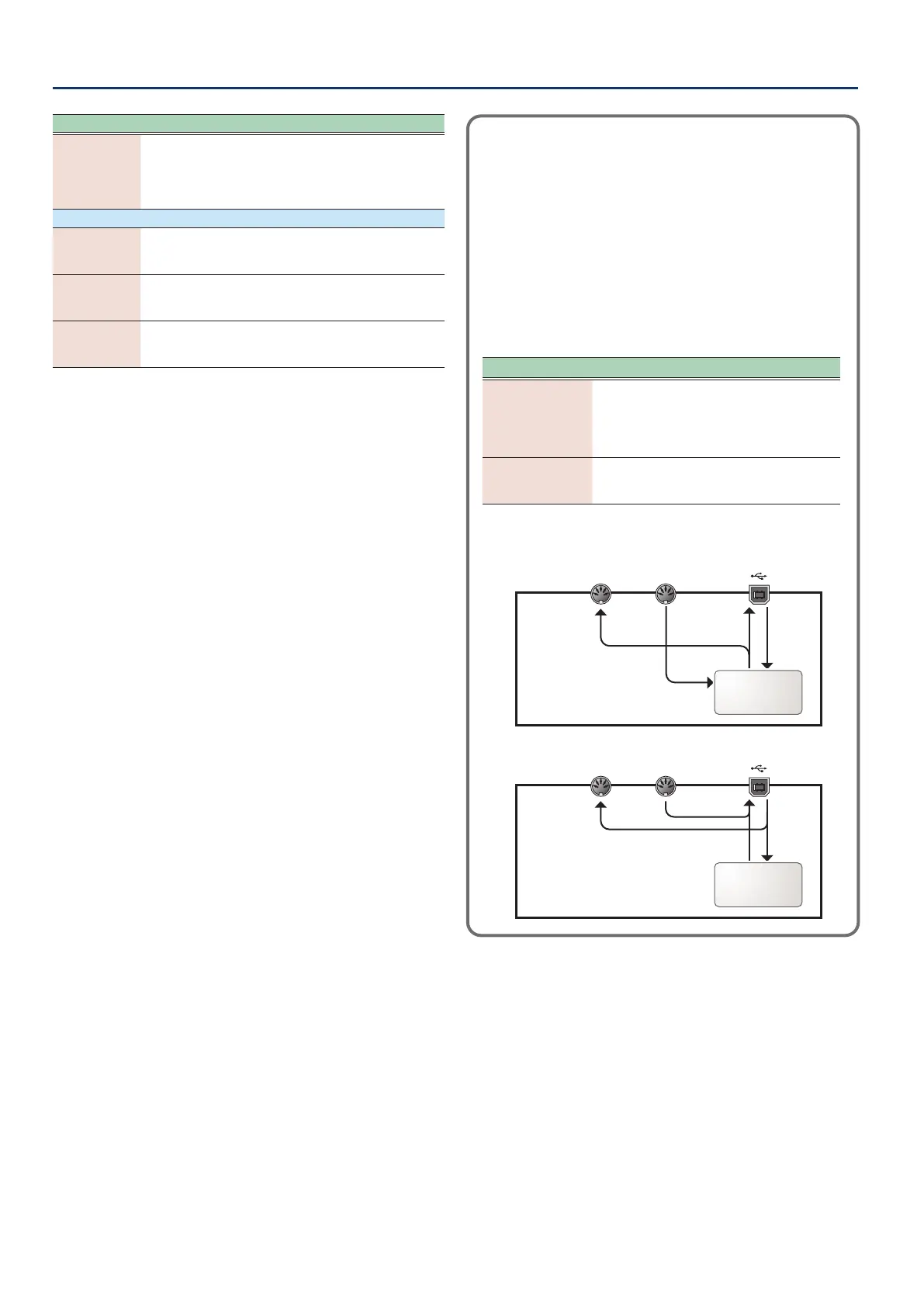

Settings for the Entire FANTOM
168168
Parameter Value Explanation
Soft Through OFF, ON
Species whether MIDI messages
received at the MIDI IN connector
are retransmitted as-is from the
MIDI OUT connector (ON) or are not
retransmitted (OFF).
Receive
Receive
Program
Change
OFF, ON
Species whether program change
messages will be received (ON) or not
be received (OFF).
Receive Bank
Select
OFF, ON
Species whether bank select
messages will be received (ON) or not
be received (OFF).
Receive
Exclusive
OFF, ON
Species whether system exclusive
messages will be received (ON) or not
be received (OFF).
What is a MIDI?
MIDI (Musical Instrument Digital Interface) is a standard
specication that allows musical data to be transferred between
electronic musical instruments and computers. If a MIDI cable
is connected between devices equipped with MIDI connectors,
you’ll be able to play multiple devices from a single MIDI
keyboard, perform ensembles using multiple MIDI instruments,
program the settings to change automatically as the song
progresses, and more.
About MIDI connectors
The FANTOM is equipped with the following two types of MIDI
connectors, each of which has the following role.
Connector Explanation
MIDI IN jack
This connector receives MIDI messages that
are sent from an external MIDI device.
When the FA receives MIDI messages, it can
respond by playing notes, switching sounds,
etc.
MIDI OUT jack
This connector transmits MIDI messages to
an external MIDI device. Use it when you
want to control an external MIDI device.
MIDI signal ow
Sound
Generator
Section
Sound
Generator
Section
USB IN
USB IN
MIDI IN
MIDI IN
USB OUT
USB OUT
MIDI OUT
MIDI OUT
USB-MIDI Thru=OFF
FANTOM
FANTOM
USB-MIDI Thru=ON
