Roland FANTOM-06

Using the Mixer Screen
7373

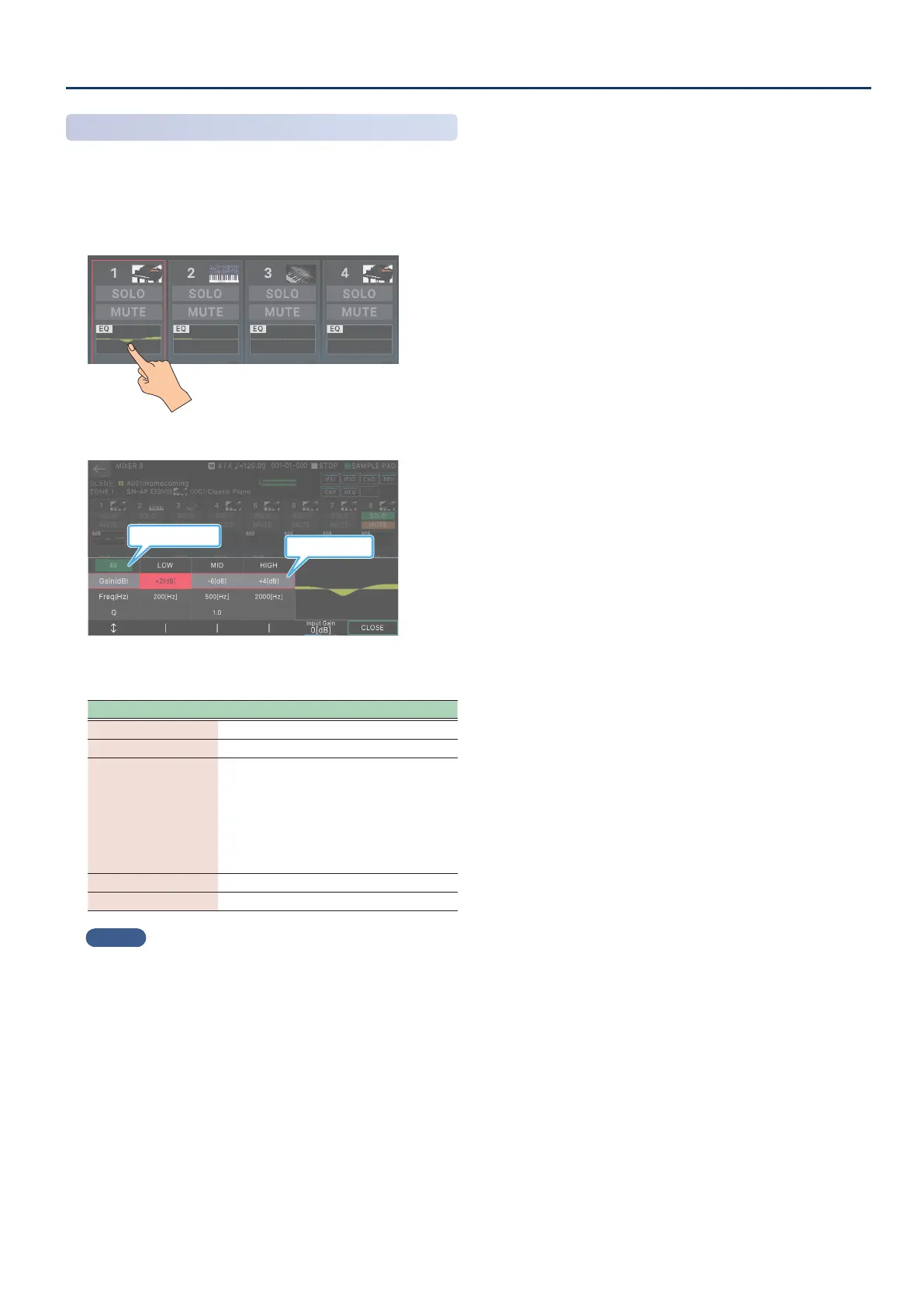

Making ZONE EQ Settings in the MIXER Screen
A simplied EQ curve is shown in the ZONE EQ area, and from here
you can access an edit screen and edit the ZONE EQ settings.
1. In the MIXER screen, touch the ZONE EQ eld of
the zone whose EQ you want to edit.
The ZONE EQ screen appears.
EQ on/o
Cursor
2. Edit the parameters as necessary.
Parameter Value Explanation
<EQ> OFF, ON Turns the ZONE EQ on/o.
[E1] knob – Moves the cursor up/down.
[E2]–[E4] knob –
Edit the corresponding
parameters depending
on the cursor position.
For the example shown in
the illustration above, [E2]
corresponds to LOW Gain,
[E3] to MID Gain, and [E4] to
HIGH Gain respectively.
Input Gain [E5] knob -24–+24dB Species the input gain.
[E6] CLOSE – Closes the screen.
MEMO
For details on the ZONE EQ parameters, refer to “Parameter Guide”
(PDF).
