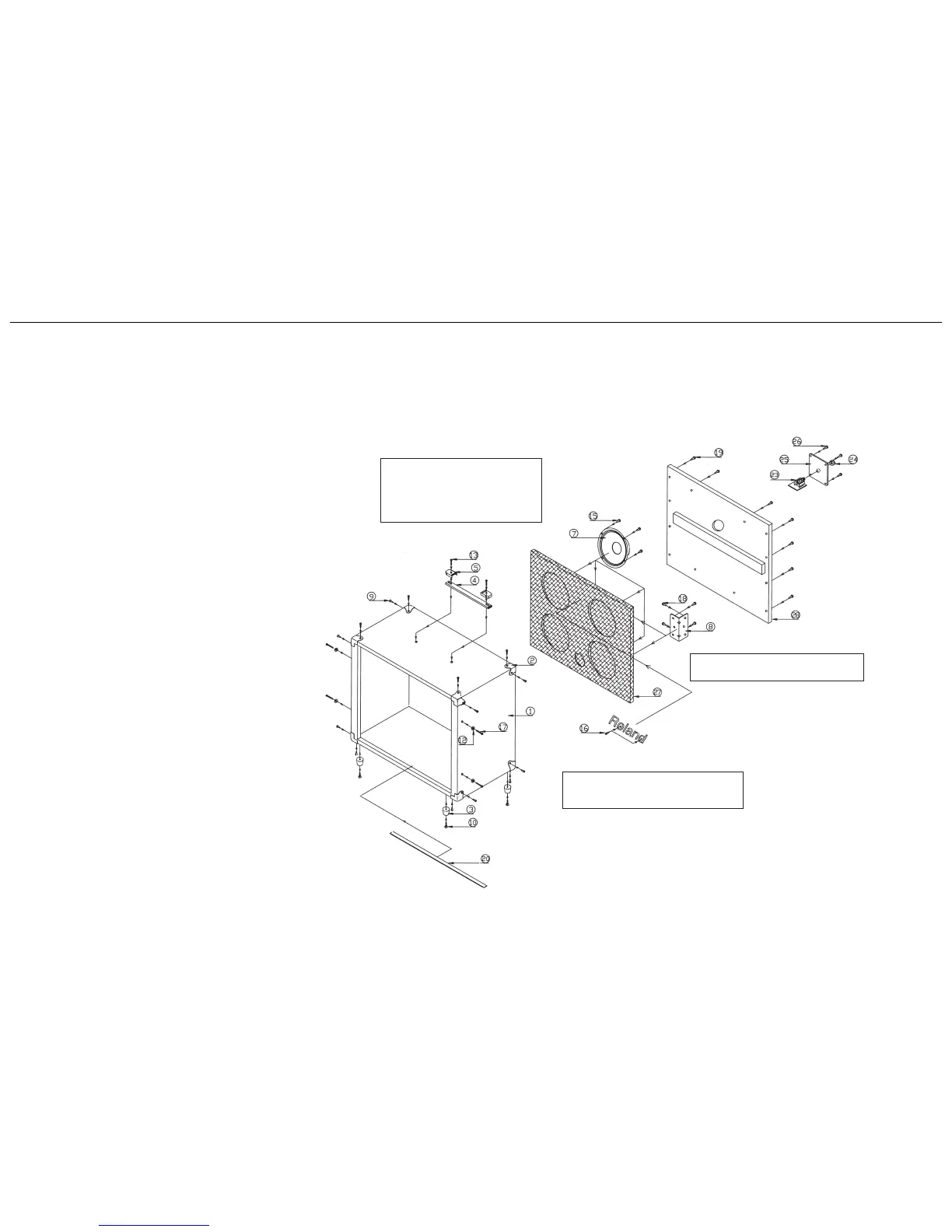

GC-408S CABINET EXPLODED VIEW
[PARTS]
No. Part Cord Part Name
q SS000140 CABINET ASSY
w SS000070 CORNER CSN-03
e SS000160 RUBBER FOOT RF-02
r SS000076 HANDLE HDBK-02
t SS000077 HANDLE BRACKET HBNI-02
y ********
u SS000135 SPEAKER GC-408/S
i SS000167 ANGLE BRACKET
o SS000050 TAPPING SCREW NI TH1 3.5x12
!0 SS000145 TAPPING SCREW BK TH1 3.5x 18
!1 ********
!2 ********
!3 SS000051 MACHINE SCREW NI OH M4x32
!4 ********
!5 SS000147 MACHINE SCREW BK TH M4x20
!6 SS000171 TAPPING SCREW BK FH1 2.6x10
!7 SS000049 TAPPING SCREW BK OH1 3.5x45
!8 SS000152 TAPPING SCREW NI FH1 3.5x15
!9 SS000146 TAPPING SCREW BK TH1 3.5x35
@0 SS000156 RUBBER SHEET
@1 ********
@2 ********
@3 SS000133 PCB ASSY
@4 SS000055 NUT BK ABS JACK
@5 SS000168 BLACK PLATE
@6 SS000144 TAPPING SCREW BK TH1 3.5x10
@7 SS000111 BAFFLE BOARD ASSY GC-408S
@8 SS000109 BACK BOARD ASSY GC-408S
Dec, 1997
GC-408/GC-408S
q SS000140 CABINET ASSY GC-408S
Replacement CABINET ASSY includes the following parts.
e SS000160 RUBBER FOOT RF-02
w SS000070 CORNER CSN-03
r SS000076 HANDLE HDBK-02
t SS000077 HANDLE BRAKET HBNI-02
@0 SS000156 RUBBER SHEET
@8 SS000109 BACK BOARD ASSY GC-408S
Replacement BACK BOARD ASSY includes the following parts.
@5 SS000168 BACK PLATE For BACK BOARD
@7 SS000111 BAFFLE BOARD ASSY GC-408S
Replacement BAFFLE BOARD ASSY includes the following parts.
!6 SS000161 LOGO ROLAND(LARGE)
i SS000167 ANGLE BRACKET
