Roland GC-408 Service Notes

3

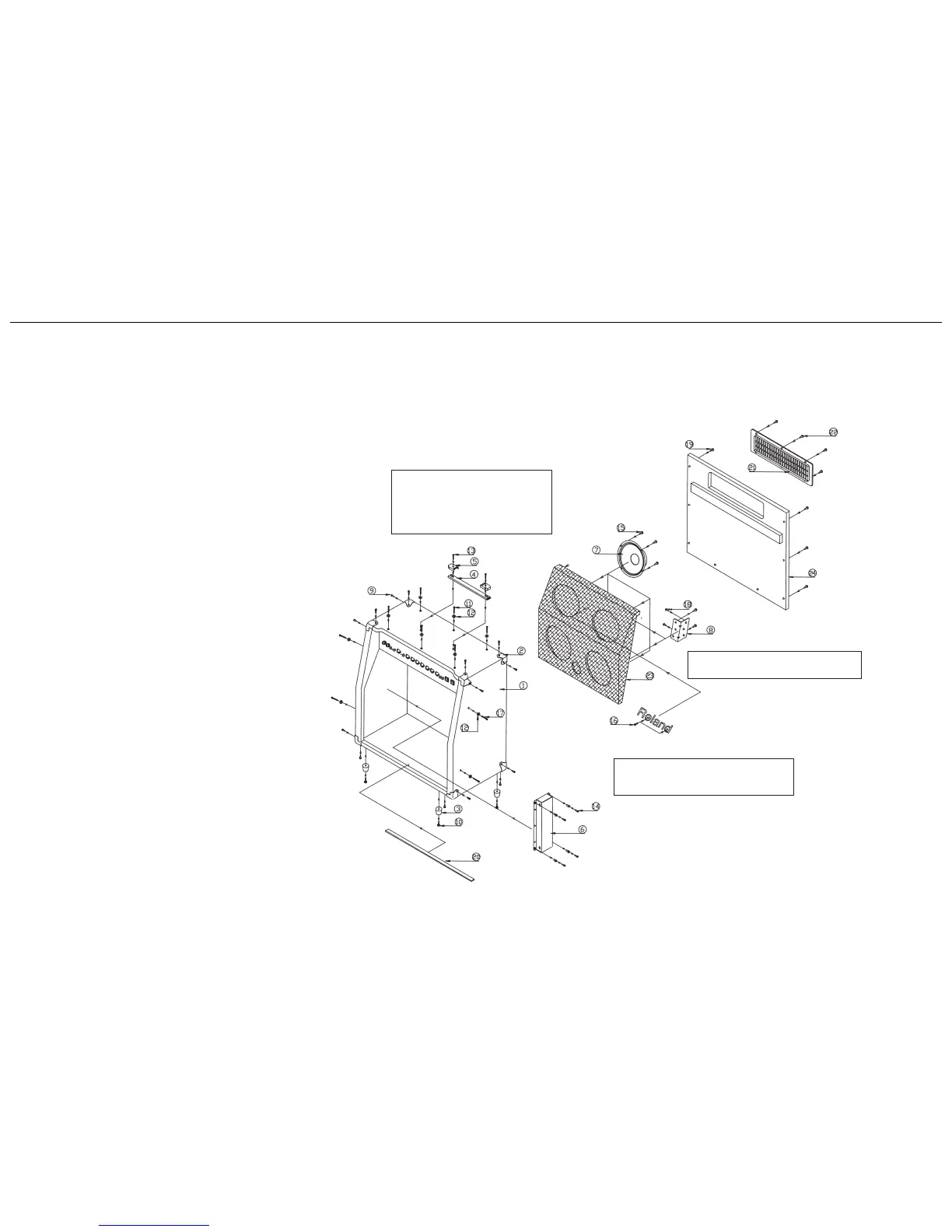

GC-408 CABINET EXPLODED VIEW
[PARTS]
No. Part Cord Part Name
q SS000139 CABINET ASSY
w SS000070 CORNER CSN-03
e SS000160 RUBBER FOOT RF-02
r SS000076 HANDLE HDBK-02
t SS000077 HANDLE BRACKET HBNI-02
y 17055028 REVERB UNIT 8DB2C1E
u SS000135 SPEAKER GC-408/S
i SS000167 ANGLE BRACKET
o SS000050 TAPPING SCREW NI TH1 3.5x12
!0 SS000145 TAPPING SCREW BK TH1 3.5x 18
!1 SS000148 MACHINE SCREW BK OH 4x25
!2 SS000054 WASHER BK NAVEL 4ø
!3 SS000051 MACHINE SCREW NI OH M4x32
!4 SS000047 TAPPING SCREW BK TH1 3.5x15
!5 SS000147 MACHINE SCREW BK TH M4x20
!6 SS000171 TAPPING SCREW BK FH1 2.6x10
!7 SS000049 TAPPING SCREW BK OH1 3.5x45
!8 SS000152 TAPPING SCREW NI FH1 3.5x15
!9 SS000146 TAPPING SCREW BK TH1 3.5x35
@0 SS000156 RUBBER SHEET
@1 SS000166 VENT COVER
@2 SS000150 TAPPING SCREW BK OH1 3.5x15
@3 SS000110 BAFFLE BOARD ASSY
@4 SS000114 BACK BOARD ASSY
GC-408/GC-408S
Dec, 1997
q SS000139 CABINET ASSY
Replacement CABINET ASSY includes the following parts.
e SS000160 RUBBER FOOT RF-02
w SS000075 CORNER CSN-03
r SS000076 HANDLE HDBK-02
t SS000077 HANDLE BRAKET HBNI-02
@0 SS000156 RUBBER SHEET
@4 SS000114 BACK BOARD ASSY
Replacement BACK BOARD ASSY includes the following parts.
@1 SS000166 VENT COVER For BACK BOARD
@3 SS000110 BAFFLE BOARD ASSY
Replacement BAFFLE BOARD ASSY includes the following parts.
!6 SS000161 LOGO ROLAND(LARGE)
i SS000167 ANGLE BRACKET
