Roland HandSonic 10 - Exploded View (2)

8
Mar. 2006 HPD-10

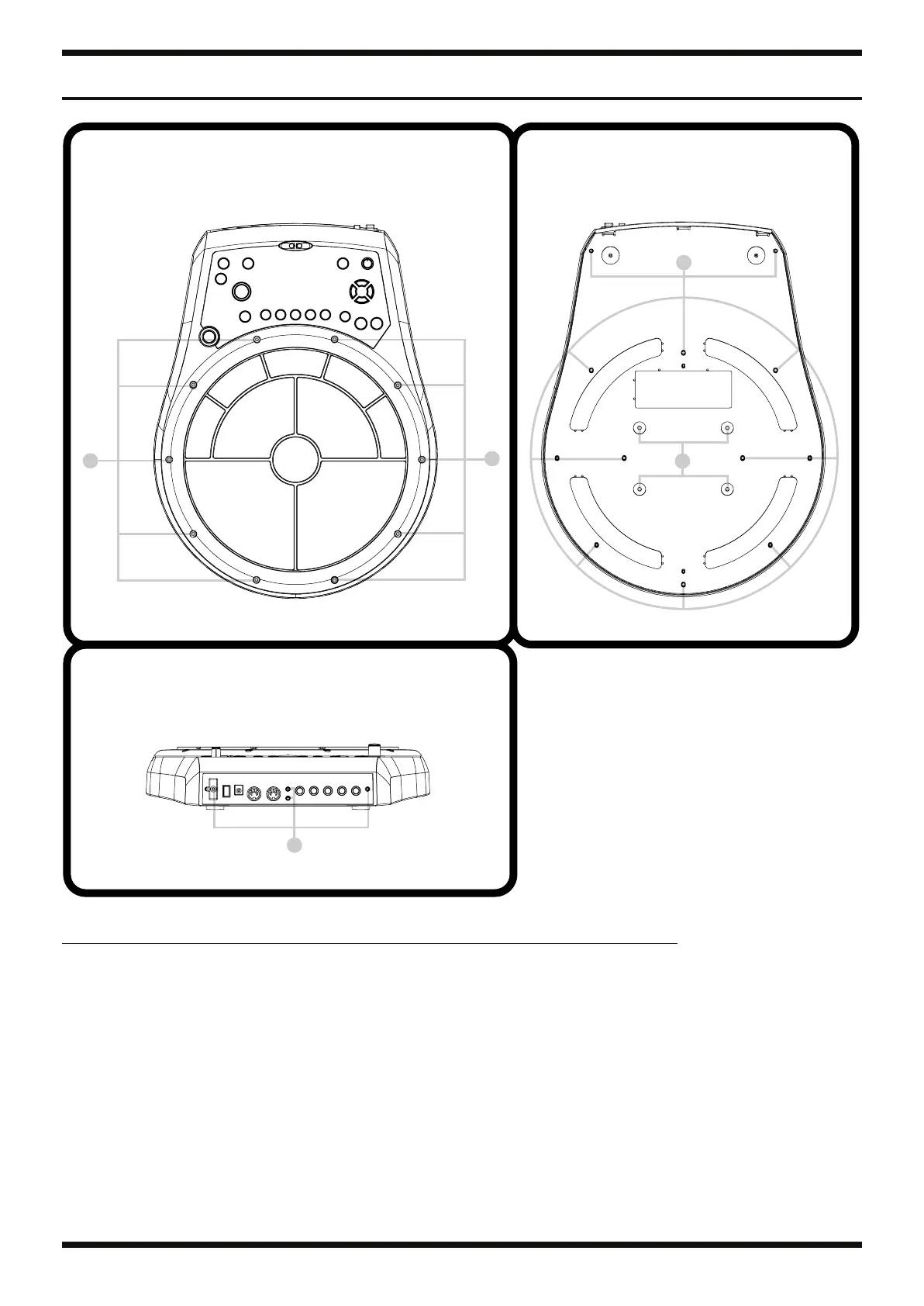

Exploded View (2)
fig.heimen-top-bottom-rear
b
c
BOTTOMTOP
a
a
d
REAR
NO.
PART CODE PART NAME DESCRIPTION Q’TY
a 02126156 SCREW M3X10 HEX SOCKET HEAD CAP TAPTITE P 10
b 40011245 SCREW 4X12 BINDING P-TITE FE NI 12
c 40238145 SCREW M5X12 TRUSS BZC 4
d 40340812 SCREW M3X10 PAN MACHINE W/SW BZC 4
