Roland Juno-GJ - Control Location and Parts Identification; Control Location Diagram; Control Parts List

Apr. 2006
JUNO-G/JUNO-G (J)

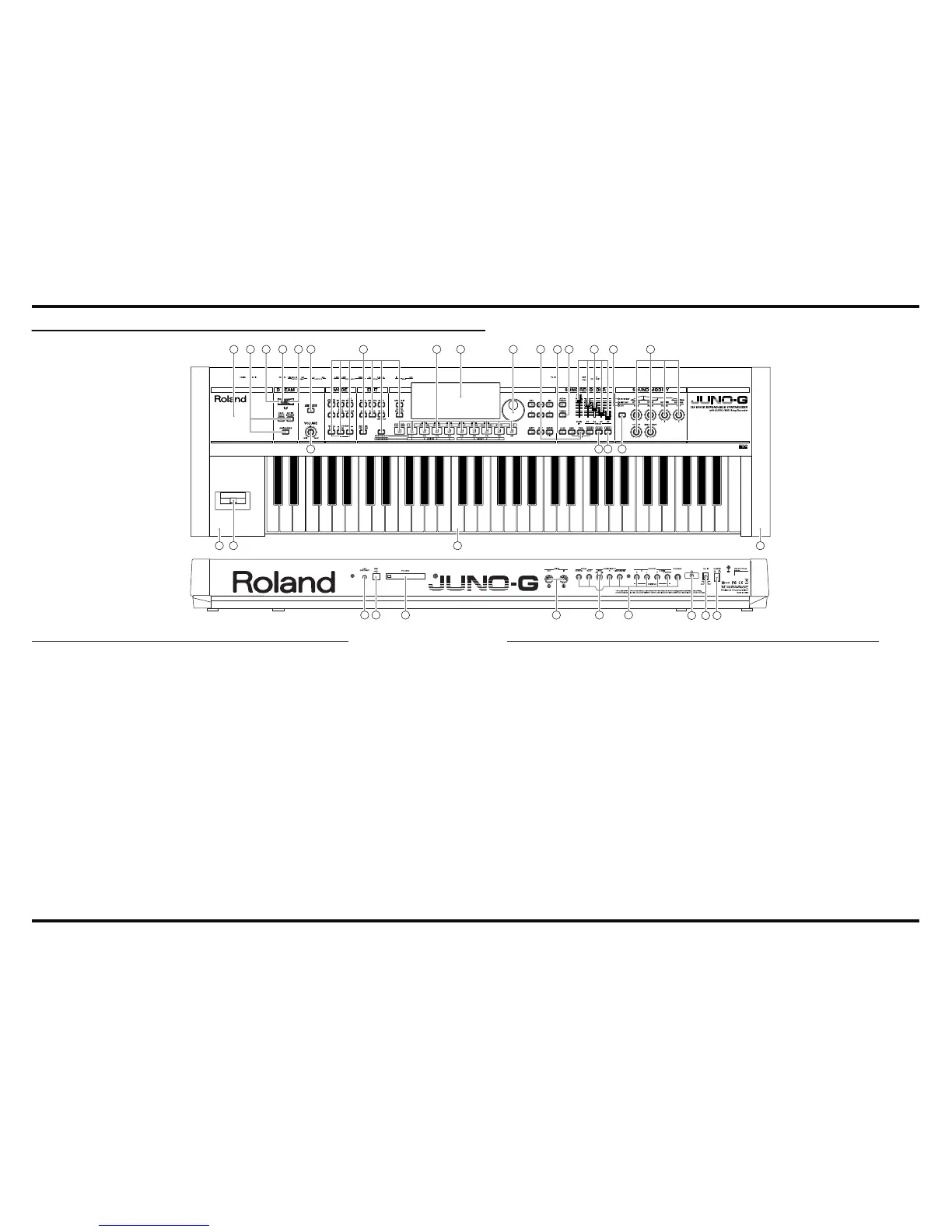

Location of Controls/Location of Controls Parts List
fig.top-panel@L
fig.rear-panel@L
No.
Parts Code Parts Name Description Q'ty
1
01343089 ESCUTCHEON D-BEAM CONTROLLER ESCT BLK 1
2 03126134 LED (INFRARED) TLN233 (F) 1
3 01900612 DIODE TPS611(F) 1
4 02891789 TACT SWITCH SKRGADD010 H=5.0 1
4 04348801 D S-KEYTOP SX1H-B GRS 1
4 03893601 LED SLR343BCT3F 1
5 01904112 LED (RED) SLR-342VCT32 N.P.Q RANK 25
5 02891789 TACT SWITCH SKRGADD010 H=5.0 25
5 04348801 D S-KEYTOP SX1H-B GRS 25
6 01904112 LED (RED) SLR-342VCT32 N.P.Q RANK 10
6 02891789 TACT SWITCH SKRGADD010 H=5.0 10
6 04124312 N S-KEYTOP MD1H BLK MNP 10
7 04010634 LCD 1
7 04128778 DISPLAY COVER 1
8 03122134 ROTARY ENCODER EC12E2420802 1
8 04128090 D R-KNOB L-ELA MNP 1
9 02891789 TACT SWITCH SKRGADD010 H=5.0 13
9 04348801 D S-KEYTOP SX1H-B GRS 13
10 01239867 LED (RED/GREEN) CLR SML72423C TP15 1
10 02891789 TACT SWITCH SKRGADD010 H=5.0 1
10 04348801 D S-KEYTOP SX1H-B GRS 1
11 02454278 LED SLR-322MC-T32 1
11 02891789 TACT SWITCH SKRGADD010 H=5.0 1
11 04348801 D S-KEYTOP SX1H-B GRS 1
12 04124278 S-KNOB SLV 5
12 04233478 SLIDE POTENTIOMETER 30M/M RS30111AC019 5
2 4 7 851 316 129 14
5 10 13
65
1115
17 1918 20
5 9
21 22 23 25
26 27 28
24 29
54
No.
Parts Code Parts Name Description Q’ty
13 00899023 LED LNJ282RKRXE 3
14 02455223 9M/M ROTARY POTENTIOMETER EVUF2KFK4B14 6
14 04124267 J R-KNOB SF-ELA BLK/SLV 6
15 02455234 12M/M ROTARY POTENTIOMETER EVJY15F02B14 1
15 04124267 J R-KNOB SF-ELA BLK/SLV 1
16 04122867 TOP PANEL 1
17 04124223 SIDE PANEL L 1
18 03234723 BENDER PB-H0204 1
19 04344189 KEYBOARD ASSY MSK-2 61KEY (W/O CABLE) 1
20 04124234 SIDE PANEL R 1
21 04128767 POTENTIOMETER RK09K1110AFG 1
22 02781189 USB CONNECTOR B TYPE FEMALE YKF45-0021 1
23 01343545 CONNECTOR SCAA1A0900 1
23 02900867 CARD EJECTOR SCAB1A5600 1
23 04124290 PC CARD ESCUTCHEON BLK MNP 1
24 13429825 MIDI CONNECTOR YKF51-5054V 2
25 02781390 9M/M ROTARY POTENTIOMETER RK09K12A0D0S 20KAX2 1
26 04451556 CORD HOOK MNP 1
27 13449711 AC ADAPTOR JACK HEC0470-01-630 (for JUNO-G (J)) * equivalent to #13449720 1
27 13449720 DC JACK HEC2305-01-250 (for JUNO-G) * equivalent to #13449711 1
28 01676512 PUSH SWITCH SDKLA10200 1
28 12499175 BUTTON JSPUE0011A 1
29 00569278 6.5MM JACK LGR4609-7000 9
