Roland JUPITER-8 Parameter Guide

2

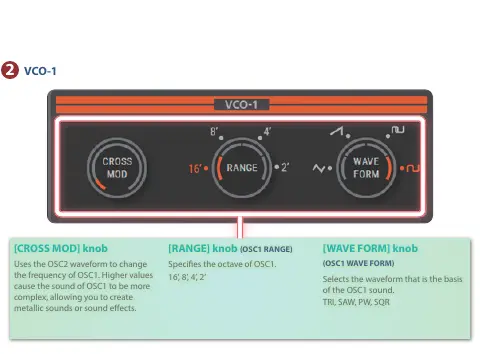

VCO-1VCO-1
[CROSS MOD] knob
Uses the OSC2 waveform to change
the frequency of OSC1. Higher values
cause the sound of OSC1 to be more
complex, allowing you to create
metallic sounds or sound eects.
[RANGE] knob (OSC1 RANGE)
Species the octave of OSC1.
16’, 8’, 4’, 2’
[WAVE FORM] knob
(OSC1 WAVE FORM)
Selects the waveform that is the basis
of the OSC1 sound.
TRI, SAW, PW, SQR

Roland JUPITER-8 Specifications

General

Type	Analog
Polyphony	8 voices
Oscillators	2 per voice
LFO	1
VCA	1 per voice
Keyboard	61 keys
Arpeggiator	Yes
Effects	Chorus
Memory	64 patches
Control	CV/Gate
Release Year	1981
Waveforms	Sawtooth, Square, Pulse
LFO Waveforms	Square, Random
Envelopes	2 (ADSR)
Filter	Low-pass, High-pass
