Installing the Wave Expansion Board
Installing the Wave Expansion Board

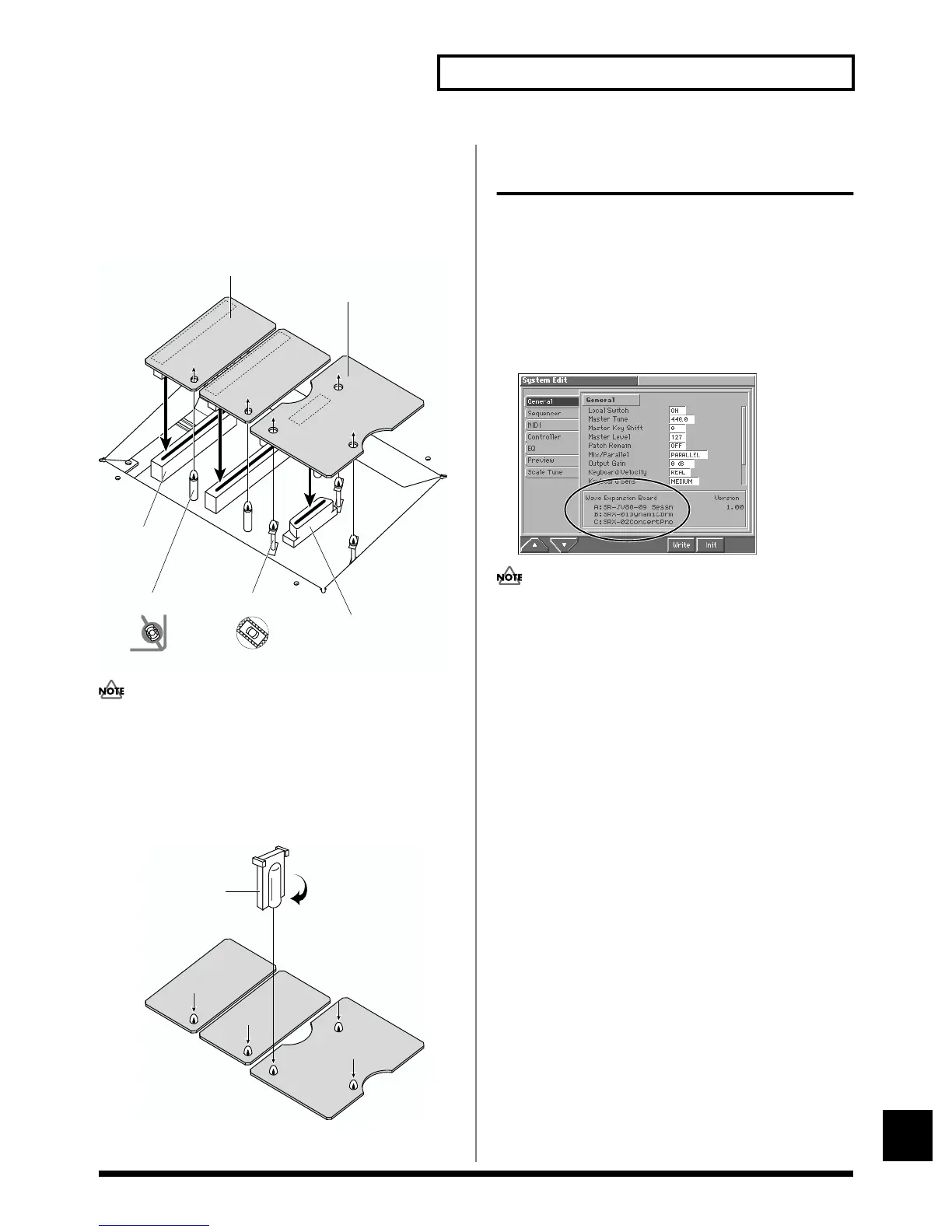

3. Inside, you will find a slot for an SR-JV80 series board (EXP
A), and slots for two SRX series boards (EXP B, EXP C). As
shown in the following illustration, plug the connector of the
Wave Expansion Board into the connector of the relevant
slot, and at the same time insert the board holder through
the hole of the Wave Expansion Board.
fig.18-04.e
If the same type of Wave Expansion Board is installed in the EXP
B slot and the EXP C slot, it will only be possible to select data
from the Wave Expansion Board that was installed in the EXP B
slot.
4. Use the Installation Tool supplied with the Wave Expansion
Board to turn the holders in the LOCK direction, so the
board will be fastened in place.
fig.18-05.e
5. Use the screws that you removed in step 2 to fasten the
cover back in place.
Checking the Installed Wave
Expansion Boards
After installation of the Wave Expansion Boards has been
completed, check to confirm that the installed boards are being
recognized correctly.
1. Turn on the power, as described in “Turning On the Power”
(Quick Start; p. 4).
2. Press [MENU] to open the Menu window.
The System Edit screen appears. Verify that the name of the
installed Wave Expansion Board is displayed.
fig.18-06
If “----------------” appears next to the installed slot name, it’s
possible that the installed Wave Expansion Board is not being
recognized correctly. Re-install the Wave Expansion Board
correctly.
Wave Expansion Board (SRX series)
Wave Expansion Board (SR-JV80 series)
Board holder
Connector
Board holder
Position them as shown before you install the board.
Connector
LOCK
Installation tool
