10
Use in Connection with the V-Mixer
About preamp gain control from an external device
In this scenario, the V-Mixer will maintain control over the preamps of the digital snake units. When playing back a recorded R-
1000 project, the V-Mixer preamp gain control will adjust the playback volume of the various R-1000 tracks.
Signal flow - audio signal and control signal

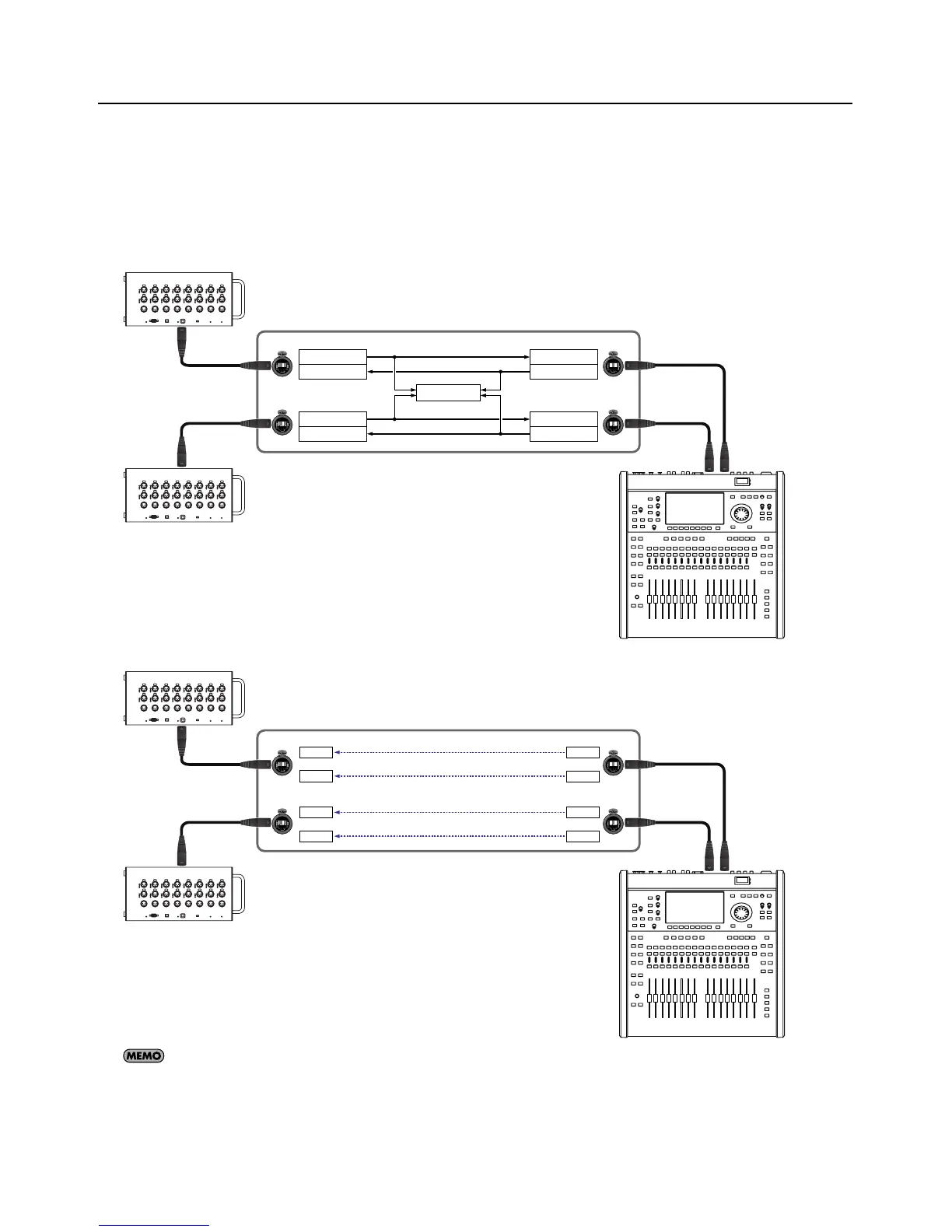

These diagrams show audio signal flow and control data flow in the R-1000 during record and playback.
• Audio signal during recording or stopping
fig.REC-STOP-audio.eps
• Control signal during recording or stopping
fig.REC-STOP-control.eps
The V-Mixer will adjust the preamp gain on a one-to-one basis; ajusting the gain of REAC A channel 1 will adjust the gain of input 1 of whatever
digital snake unit is connected to REAC C.
D
C
B
A
A
B
TR 1 - 48
REC/STOP - Audio
IN 1 - 40
OUT 1 - 40
IN 1 - 40
OUT 1 - 40
OUT 1 - 40
IN 1 - 40
OUT 1 - 40
IN 1 - 40
D
C
B
A
A
B
REC/STOP - Preamp Gain Control
IN 1
IN 40
.
.
.
OUT 1
OUT 40
.
.
.
IN 1
IN 40
.
.
.
OUT 1
OUT 40
