Sync Operation with External Devices
You can sync the R-1000 with video record/playback devices. The R-1000 will automatically start recording when it receives
timecode from the video recorder.
* In this example, the R-1000 records output from the V-Mixer’s REAC B port.
If the frame rate of the R-1000 does not match the external devices, recording cannot be carried out properly.

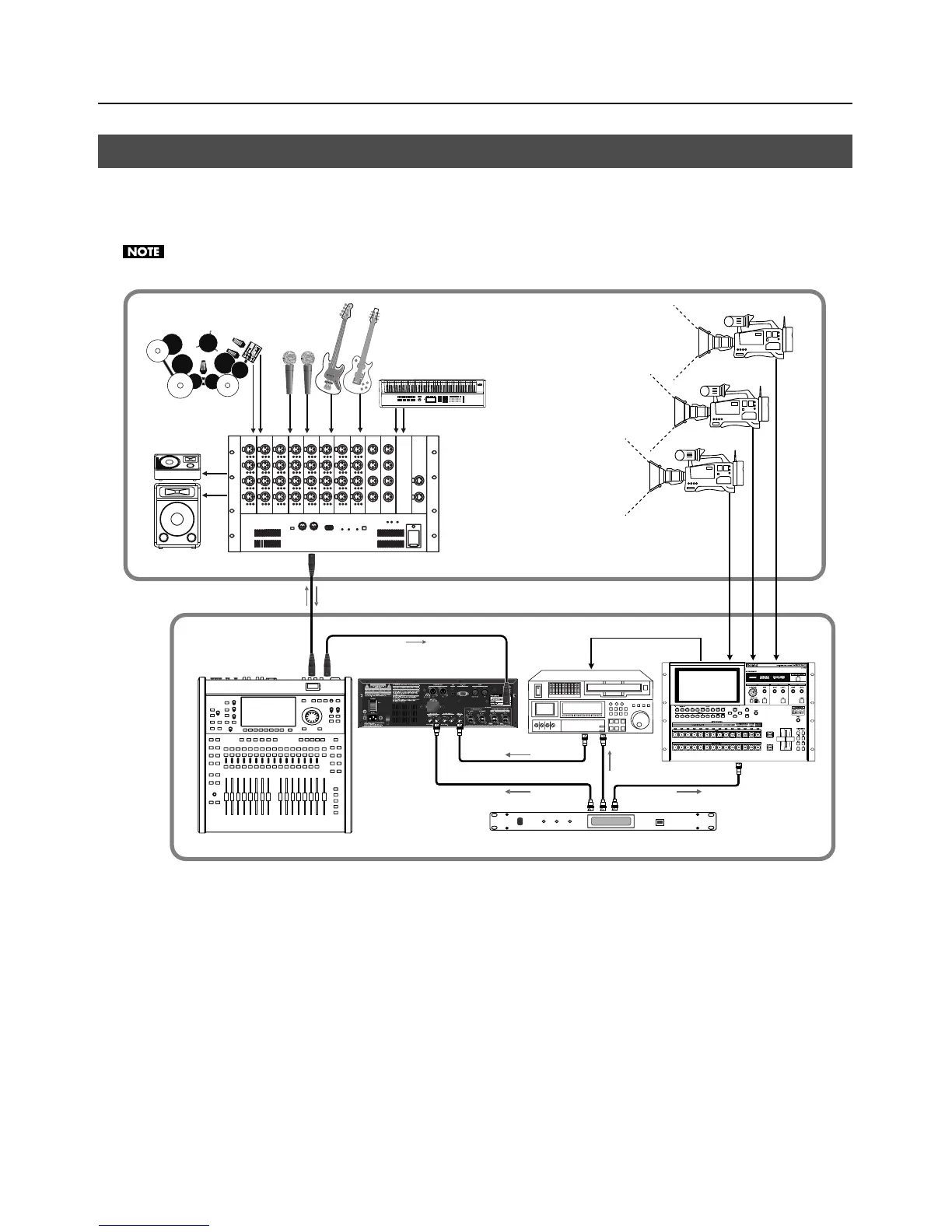

fig.video-sync-connection.eps
Connect master clock or timecode sources to the connectors as below.
• VIDEO SYNC IN Connect Ref Out of the master clock.
• SMPTE IN Connect TC Out of the video recorder.
Perform Live Recording of Audio and Video
SMPTE INVIDEO SYNC IN
Master Clock
RefRef
Ref
TC
STAGE
FOH
V-1600HD
V-Mixer
REAC Slave deviceS-4000S-3208
AB A
To Next Page
