Roland V-Synth GT Service Notes

May, 2007
V-SYNTH/GT
27

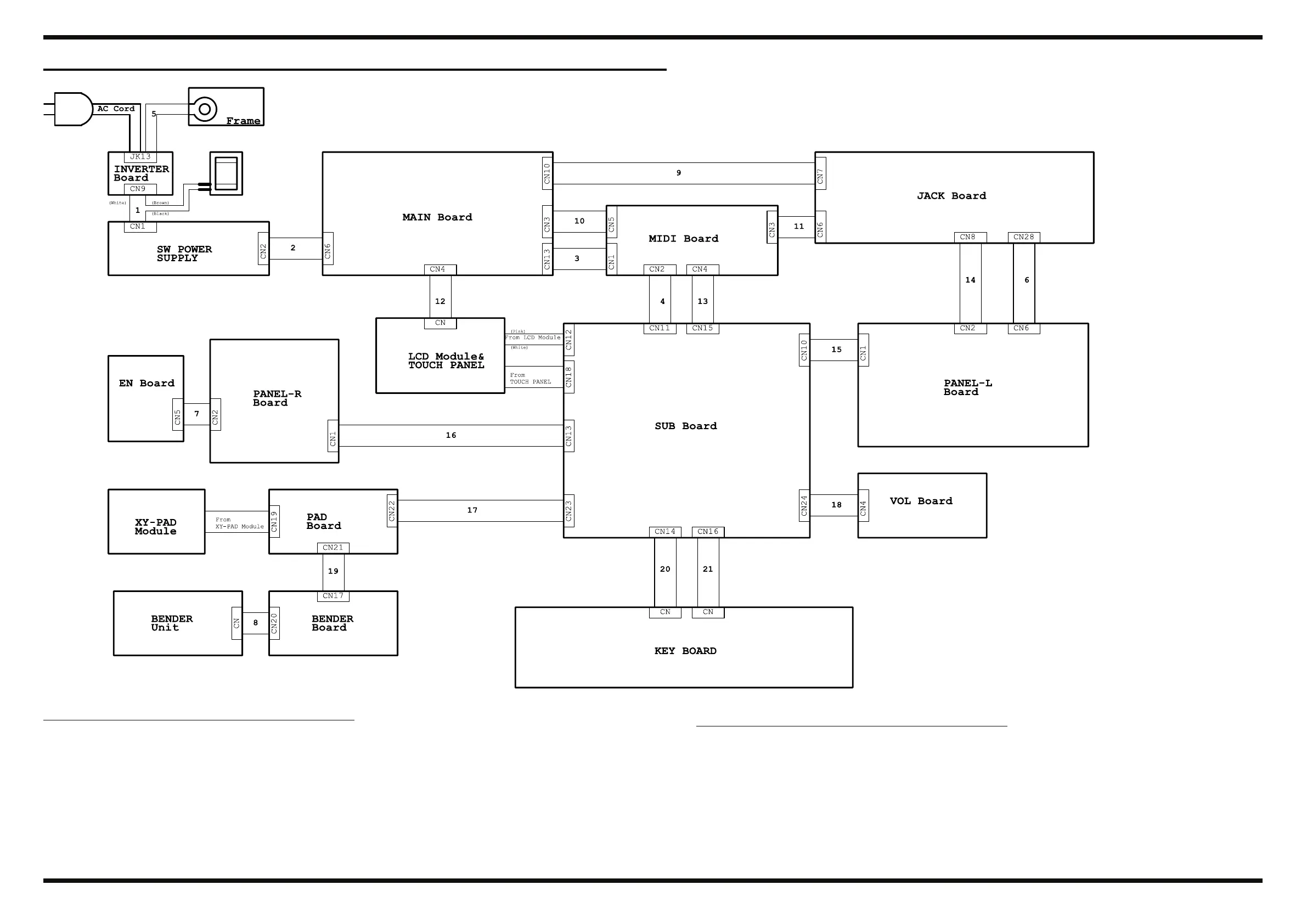

Wiring Diagram
fig.wiring.eps@L
No.
Part Code Part Name Description Q’ty
1
04566590 WIRING W1 1
2 04566601 WIRING W2 1
3 04566623 WIRING W3 1
4 04566634 WIRING W4 1
5 ******** WIRING W5 1
* WIRING W5 is included in INLET BOARD ASSY (#73459790).
6
04673390 WIRING W6 1
7 02341967 WIRING 4X50-P2.0-PHR-PHR-F 1
8 02341978 WIRING 4X100-P2.0-PHR-PHR-F 1
9 04569612 WIRING FWR-P=1.00-K-20-550 1
10 04569601 WIRING FWR-P=1.00-K-16-180 1
11 04569634 WIRING FWR-P=1.00-K-14-50 1
12 04569578 WIRING SFWR-P=0.50-K-33-220 1
26
No.
Part Code Part Name Description Q’ty
13
04569623 WIRING FWR-P=1.00-K-18-180 1
14 04569656 WIRING FWR-P=1.00-K-12-200 1
15 04569690 WIRING FWR-P=1.00-K-40-160 1
16 04569701 WIRING FWR-P=1.00-K-38-90 1
17 04569678 WIRING FWR-P=1.00-K-16-400 1
18 04569689 WIRING FWR-P=1.00-K-8-80 1
19 04569667 WIRING FWR-P=1.00-K-10-240 1
20 04569712 WIRING FWR-P=1.25-K-16-180 1
21 04569734 WIRING FWR-P=1.25-K-18-180 1
