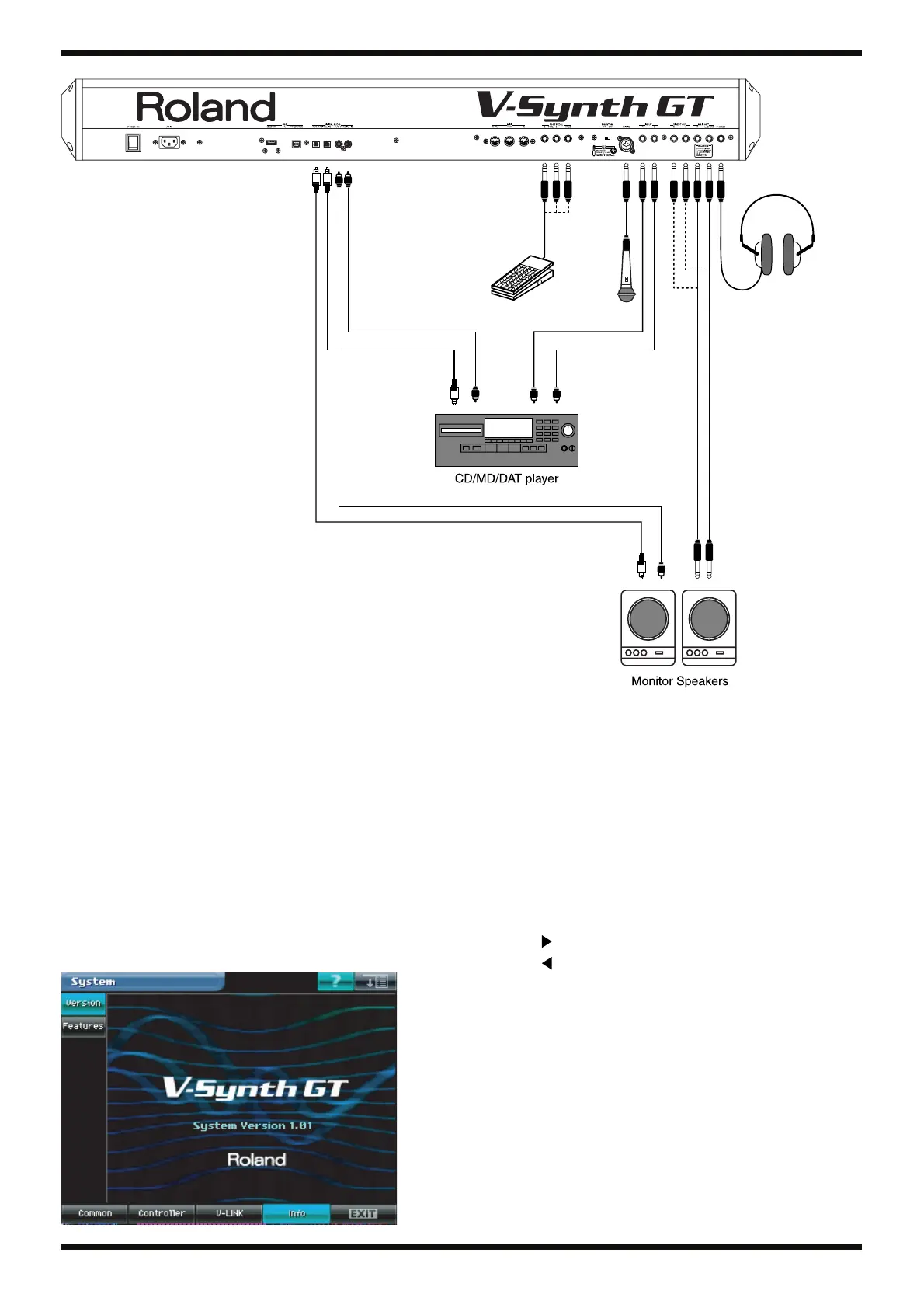

Preparations for Testing
Connect the USB COMPUTER connector and the computer running Windows
using the USB cable. Connect a USB memory device to the USB MEMORY
connector.
Connect MIDI IN and MIDI OUT using the MIDI cable.
Connect the other devices, referring to the figure above.
How to Enter the Test Mode
1. Power up the V-Synth/GT.
2. Press [SYSTEM] to enter the System mode.
3. Touch <Info>.
fig.system-info.eps_90
4. Hold down [SHIFT] and press the PATCH PALETTE buttons in this
sequence: [7], [8], [7], [8].
The Test mode (1. VERSION CHECK) starts.
Quitting the Test Mode
Power down the V-Synth/GT.
Basic Operation in the Test Mode
The basic operations while the Test mode is active are as follows.
[SHIFT] + [ ]: Performs forced movement to the next test item.
[SHIFT] + [ ]: Performs forced movement to the previous test item.
