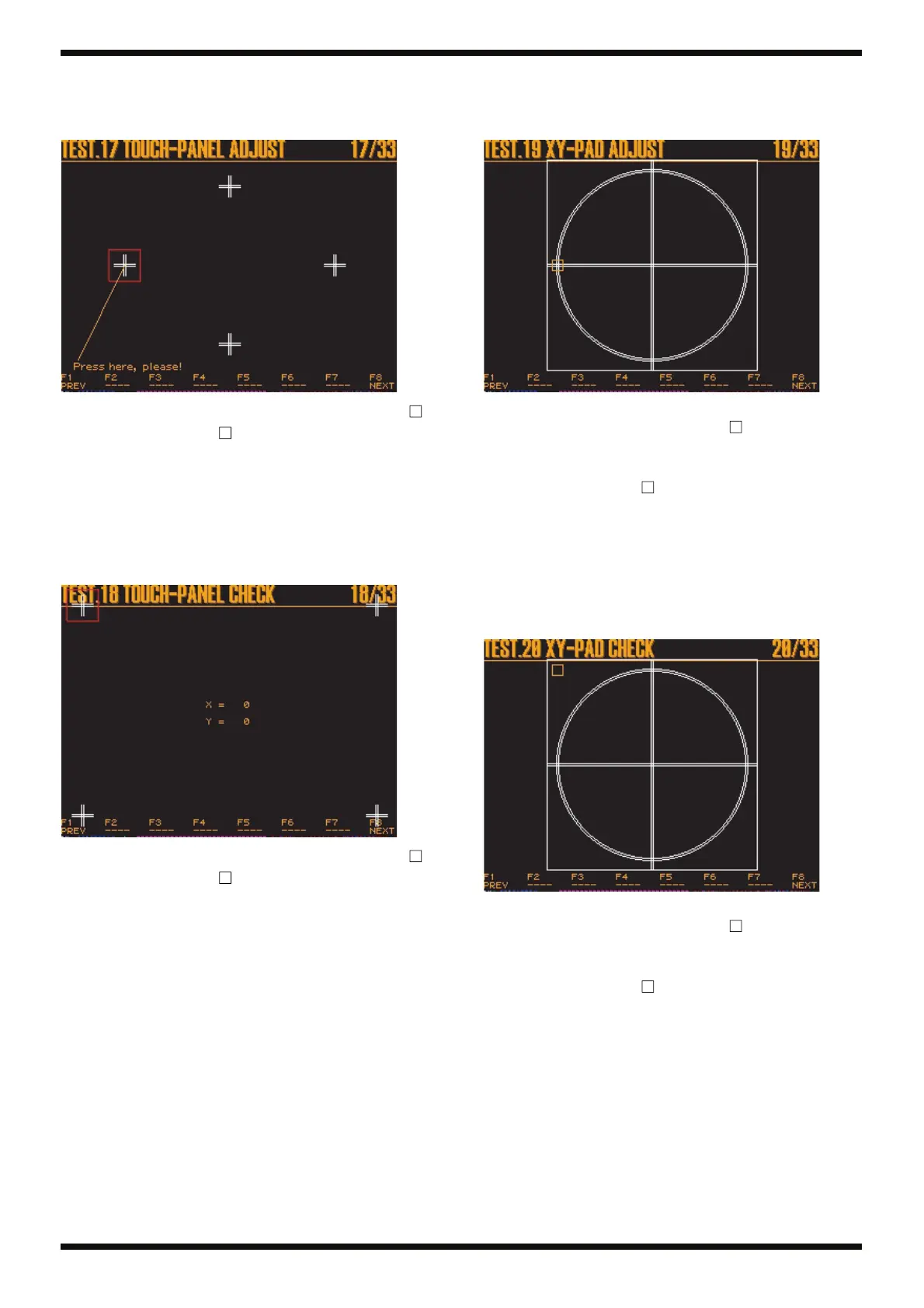

17. TOUCH-PANEL ADJUST
This performs adjustment of the positioning for the touch panel.
A screen like the one shown below is displayed on the LCD.
fig.17-touch-adjust.eps_90
Using the touch pen, touch the center of the “+” symbol inside the box ( ).
When the touch is detected, the moves to the next point.
Make sure that a beep is played simultaneously with the touch.
After all four points on the screen have been touched, execution automatically
advances to the next test item.
18. TOUCH-PANEL CHECK
This performs verification of the touch panel.
A screen like the one shown below is displayed on the LCD.
fig.18-touch-check.eps_90
Using the touch pen, touch the center of the “+” symbol inside the box ( ).
When the touch is detected, the moves to the next point.
Make sure that a beep is played simultaneously with the touch.
After all four points on the screen have been touched, if no problem occurs,
execution automatically advances to the next test item.
19. XY-PAD ADJUST
This performs adjustment of the positioning for the XY pad.
A screen like the one shown below is displayed on the LCD.
fig.19-xy-adjust.eps_90
An image of the XY pad is displayed on the LCD screen. Using the touch pen,
touch the center of the “+” symbol inside the box ( ) on the XY pad.
* Touch the XY pad, not the touch screen.
When the touch is detected, the moves to the next point.
Make sure that a beep is played simultaneously with the touch.
After all four points on the screen have been touched, execution automatically
advances to the next test item.
20. XY-PAD CHECK
This performs verification of the XY pad.
A screen like the one shown below is displayed on the LCD.
fig.20-xy-check.eps_90
An image of the XY pad is displayed on the LCD screen. Using the touch pen,
touch the center of the “+” symbol inside the box ( ) on the XY pad.
* Touch the XY pad, not the touch screen.
When the touch is detected, the moves to the next point.
Make sure that a beep is played simultaneously with the touch.
After all four points on the screen have been touched, if no problem occurs,
execution automatically advances to the next test item.
