5.6
Battery level display
The Battery level is shown as 5 bars. When the battery is full charged, all of the 5 bars lighten up. When the battery isfully depleted, the bar will begin to flash, warning the user to charge the battery as soon as possible.
Full power Four bars power Three bars power Two bars power One bar power
Empty power

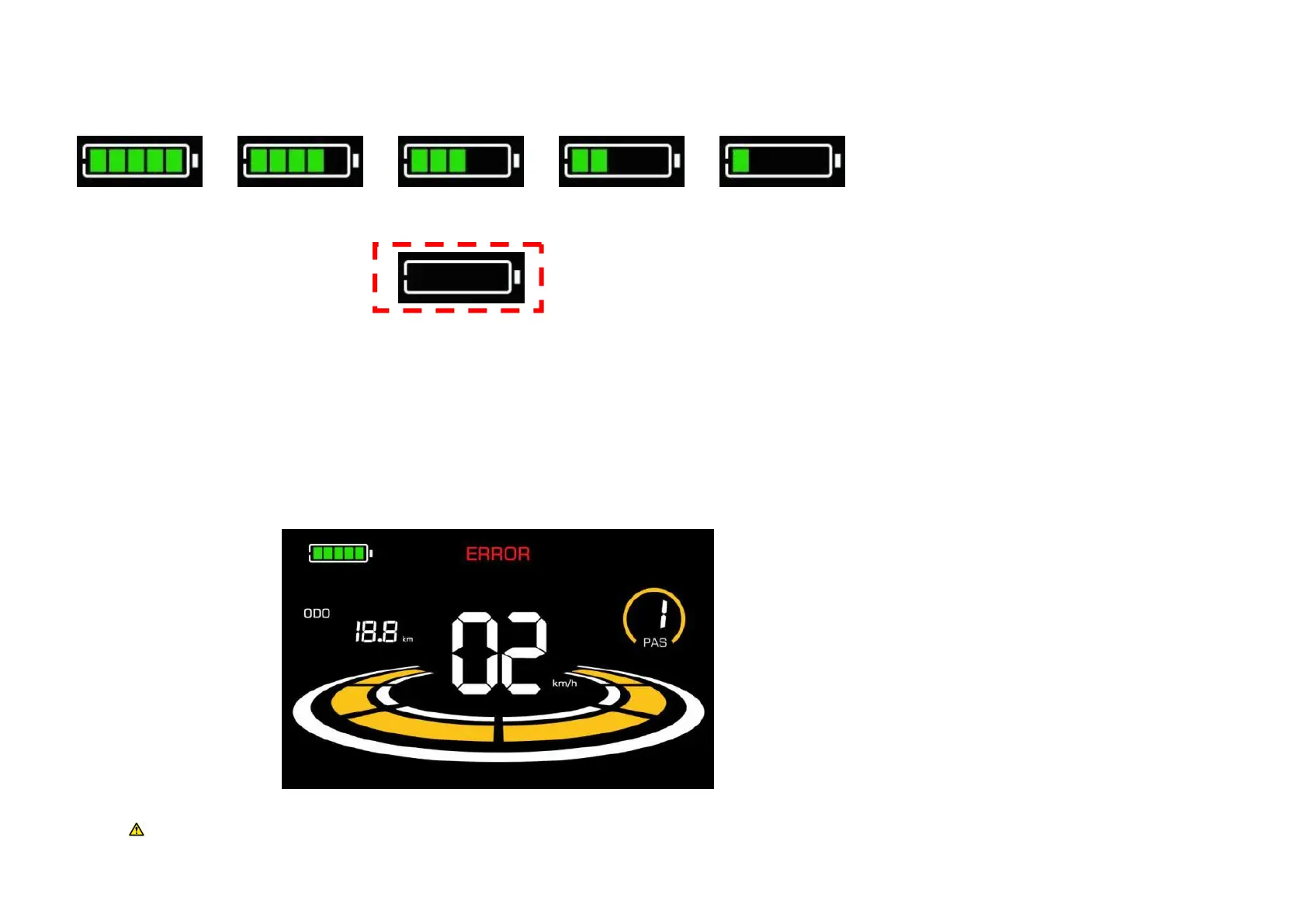

Figure 5-6 Battery Level Display Interface
5.7
Error code display
If there is a fault occurs in the electronic system of the electric bicycle, the display will automatically show an errorcode, see Schedule 1 for a detailed definition of the error code.
Figure 5-7 Error Code Display
When the error code appears on the display, please troubleshoot the problem in time, the electric bicycle will not be able to drive normally after the problem
