Rollerdor RD55 - Wireless Key Pad System; Installation of Wireless Key Pad; Programming Access and Master Codes; Programming Wireless Key Pad to Receiver

9
1
Press and hold the “RADIO PROG” button
(fig.7.1a). You will hear a beep and the red LED
alongside “C1” (fig.7.1b) will illuminate, then
release the “RADIO PROG” button.
2
Enter the access code and press OK (fig.7.1b).
The panel will beep to conrm it has accepted
the unit.
3
Leave for several seconds and the receiver box will
beep twice to conrm end of programming.
WIRELESS KEY PAD
(ONLY AVAILABLE WITH SAFETY EDGE SYSTEM)
INSTALLATION
Fit directly to the wall using the 2 fixings making sure it is level and square with the writing at the bottom.
PROGRAMMING CODES
Master Code:
PROGRAMMING TO RECEIVER BOX
1
Press and hold the * button (fig.7.1a). for 3
seconds until the LED issues a slow red
ashing light.
2
Enter the master code (factory issue 12345678)
and press OK (fig.7.1b). The red LED will
ash faster.
3
Press the * button (fig.7.1a) then enter the new
master code followed by the * button. The LED
will ash green.
4
Enter the new master code again followed by the
* button (fig.7.1a). The LED will have a
permanent green light for 2 seconds then go
out. This means it has been programmed. If the
second entry doesn’t match the rst, the LED
will ash red and it has not been programmed.
1
Press and hold the * button (fig.7.1a) for
3 seconds until the LED issues a slow red
ashing light.
2
Enter the master code and press OK
(fig.7.1b). The red LED will ash faster.
3
Enter your new access code (1 to 8 numbers
long) followed by the channel number from
1 to 4 (e.g. 5555 is the number and 1 for the
channel so 55551) and press OK (fig.7.1b).
4
The LED will have a permanent green light
for 2 seconds then go out. This means it has
been programmed. If you wish for more than
1 access code, then it must be programmed
to a separate channel otherwise it will just
replace the already stored code.

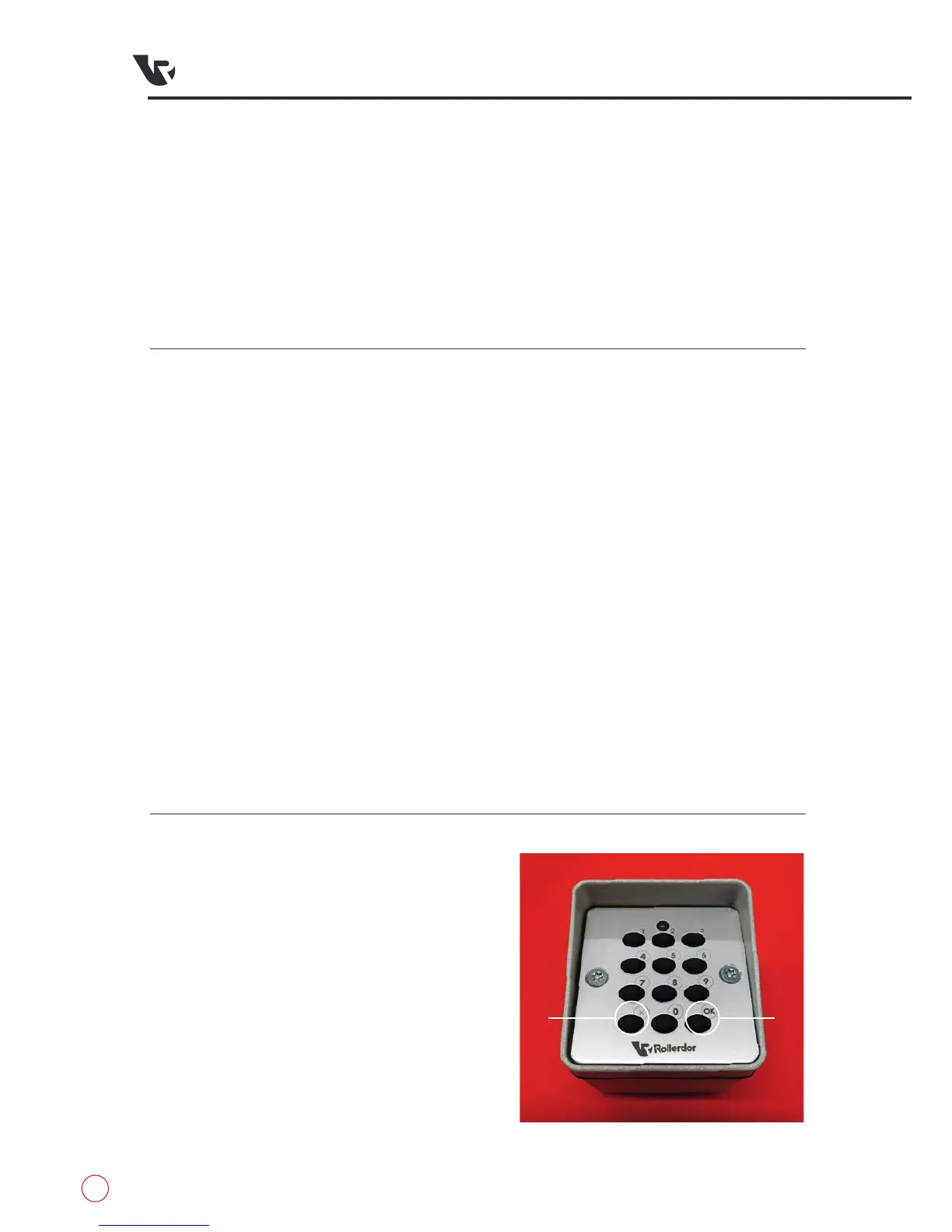

fig.7.1
Access Code
A
