10

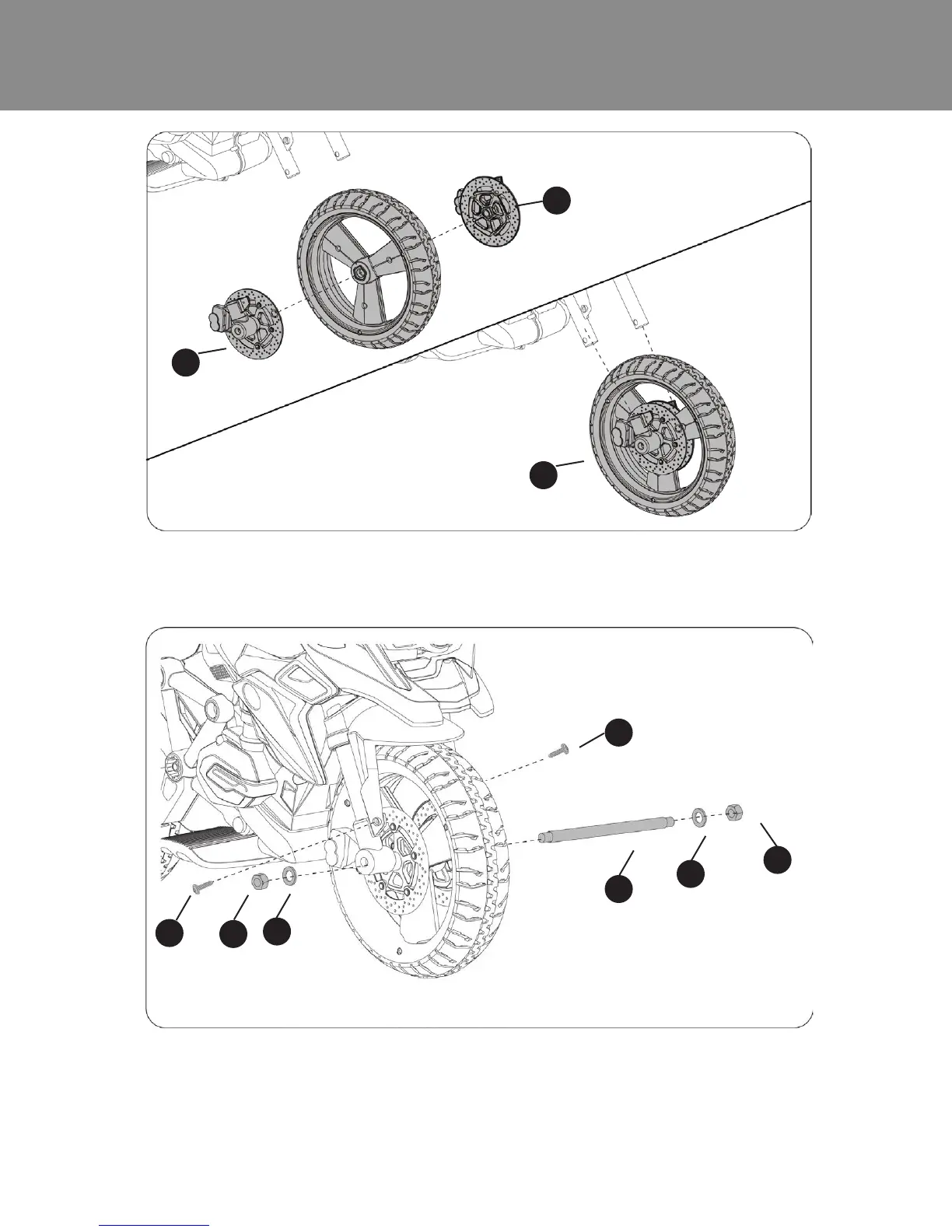

Assemble the Front Wheel
1. Place the left (13) and right brake (15) onto either sides of the front wheel (14).
2. Slide the front wheel assembly into the front fork.
3. Align the holes on the brakes with the holes on the front fork. Insert a self tapping
screw (22) into both holes on the fork to secure the wheel.
4. Insert the front axle (16) through the front fork and front wheel assembly.
5. Slide one washer (17) on both sides of the front axle.
6. Secure the washers with a hexagon nut (19) on both sides of the axle. Use a
wrench (18) to tighten.
15
13
14
16
17
17
19
19
22
22
