12

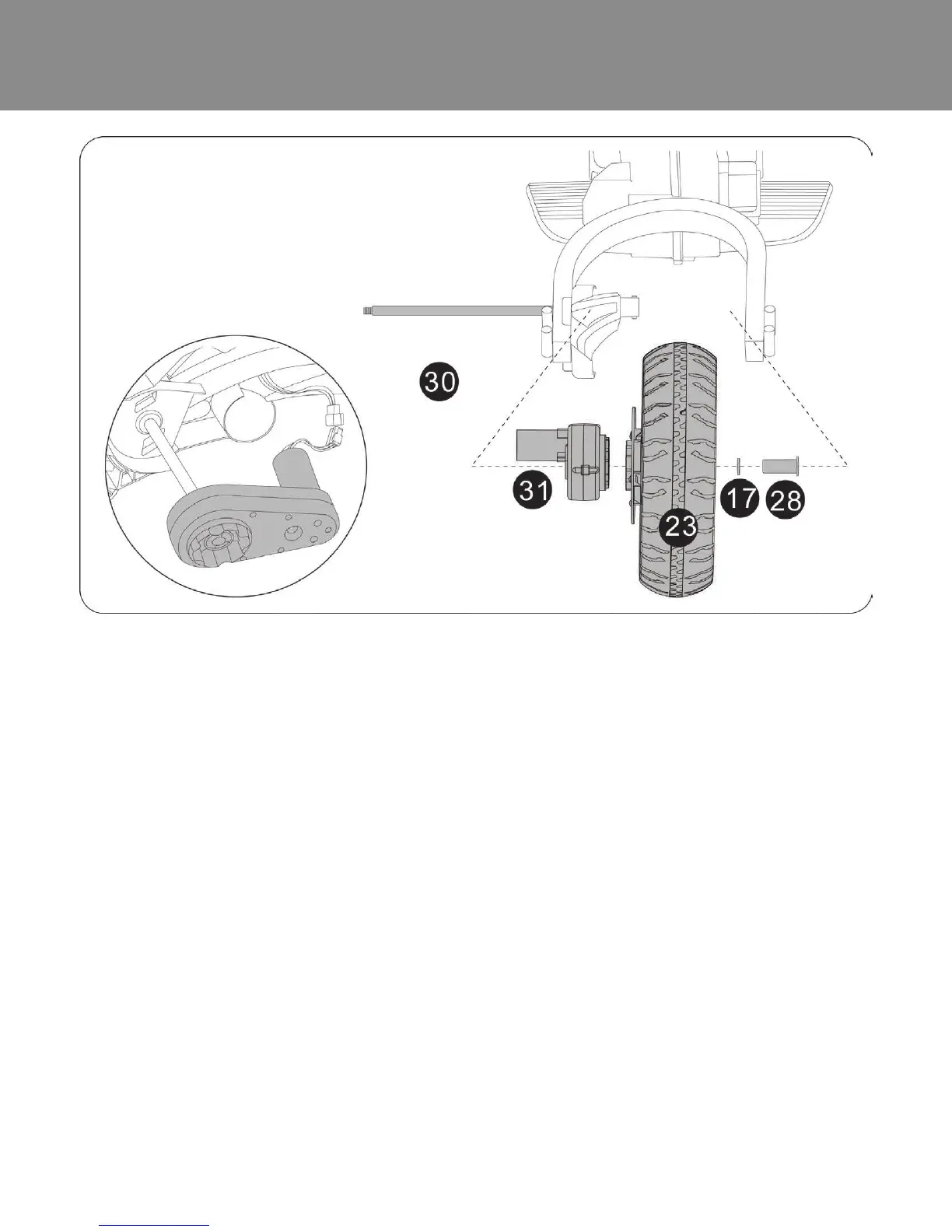

Assemble the Rear Wheel
1. Insert the rear axle (30) into the left hole of the rear fork. Do not slide all the way
through.
2. Slide the gear box (31) onto the rear axle. Connect the white connector on the
gear box with the white engine connector.
3. Slide the protruding side of the rear wheel (23) onto the axle. Ensure it is fully
engaged with the gear box.
4. Slide the washer (17) and inner wheel spacer (28) onto the axle, and then slide the
axle through the rest of the rear fork.
