RoomTec Murphy Bed Building Queen Vertical - Hardware Placement for Side Rails; Leg Support Rail Installation

B. Right Side Rail
B. Left Side Rail

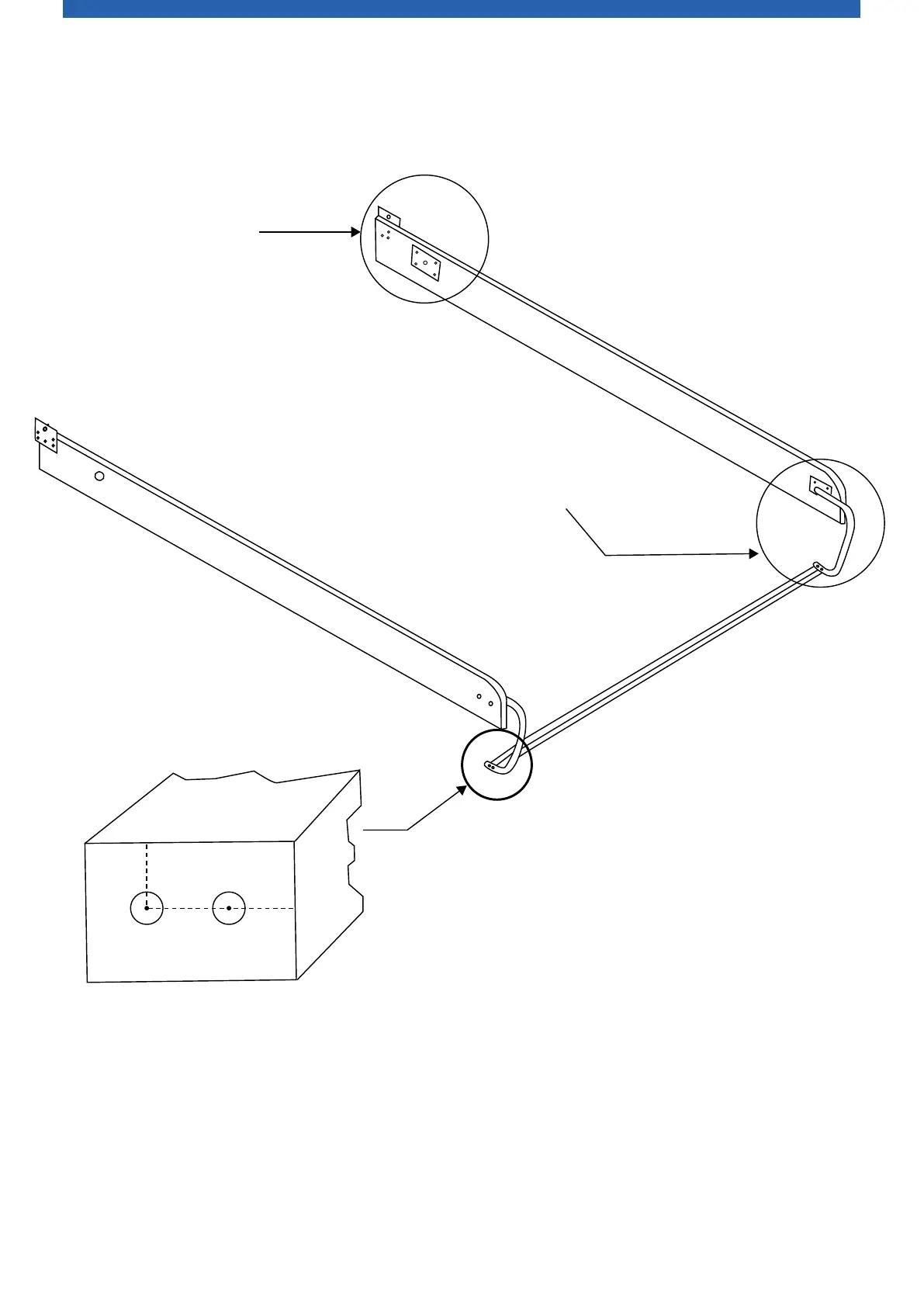

HARDWARE PLACEMENT FOR B.SIDE RAILS
Step 4:
- 09 -
See pages 10,11,12 for
placement of pivotings.
leg bracket & templates.
Step 5:
See pages 13,14,15,16 for
Placement of female pivot
and lower ball stud plates.
SEE PAGE 6 FOR CUTTING DIMENSIONS.
Mark the location of the holes ON EACH END
OF RAIL pre-drill the 2 holes.
Step 6:PART I. LEG SUPPORT RAIL
0.375

0.47

0.455

