RoomTec Murphy Bed Building Queen Vertical - Part B: Side Rails Assembly; Side Rail Preparation and Pivot Placement; Part C & D: Foot and Head Rails; Part D. Head Rail

B. Right Side Rail
B. Left Side Rail
C. Foot Rail
D. Head Rail
See pages 9,10,11,12 for placement of
pivotings leg bracket & templates.
Placement hole for the female pivot
(also shown on pages 14 and 15)
Why?..This is where the stress takes place.
Plywood is stronger than solid wood.
YES EVEN SOLID OAK……

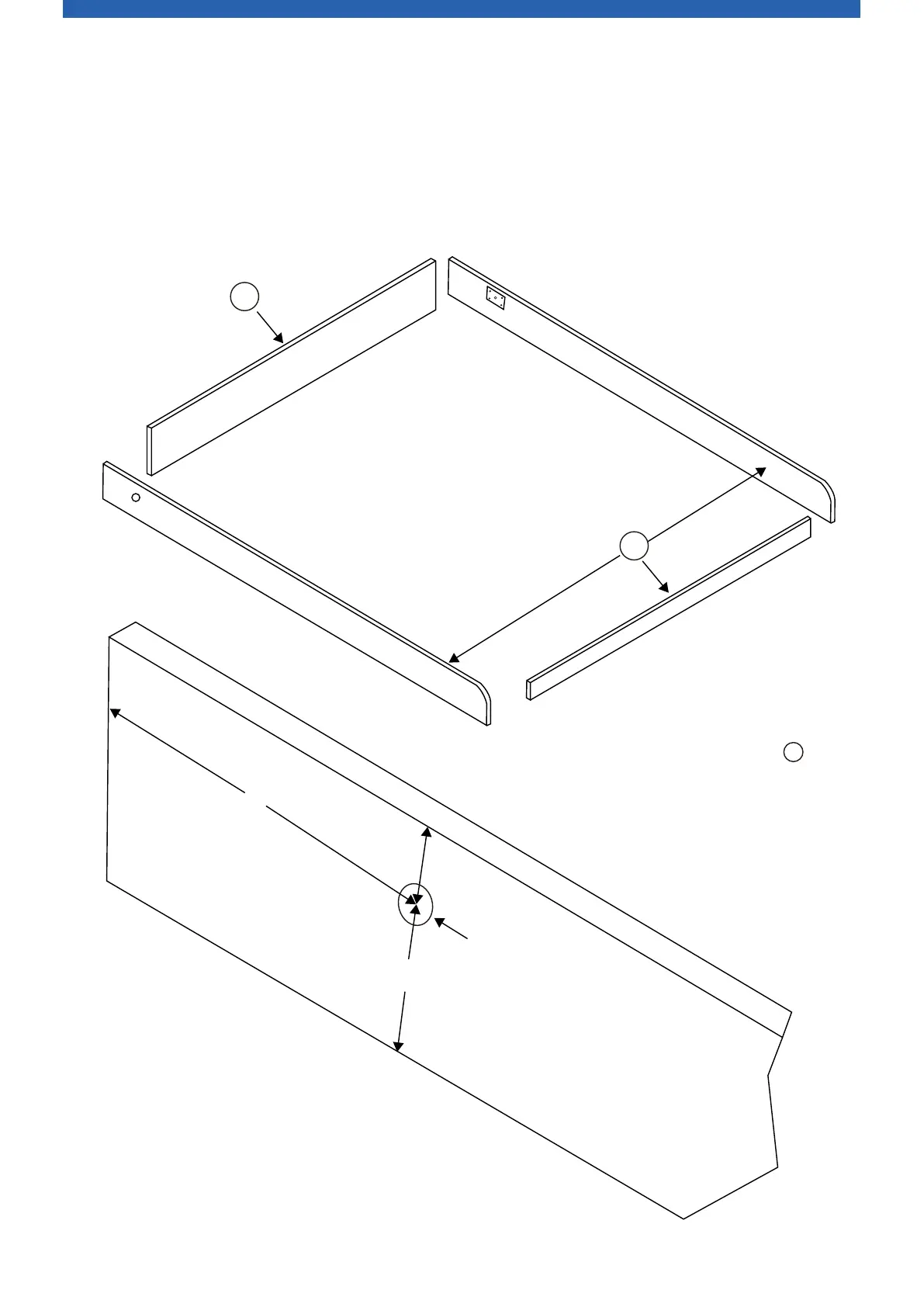

PART B. SIDE RAILS: (MUST BE MADE OF PLYWOOD)
PART C. FOOT RAIL
PART D. HEAD RAIL
- 08 -
F
F
For a finished look, apply wood
veneer or melamine edge banding
tape to all edges marked .
F
B. Side Rail
Diameter hole
9
1

1- 7/8
