B. Right Side Rail
Parallel
two (2) "T" Nuts with MACHINE SCREWS
- 11 -
B.RIGHT SIDE RAIL.

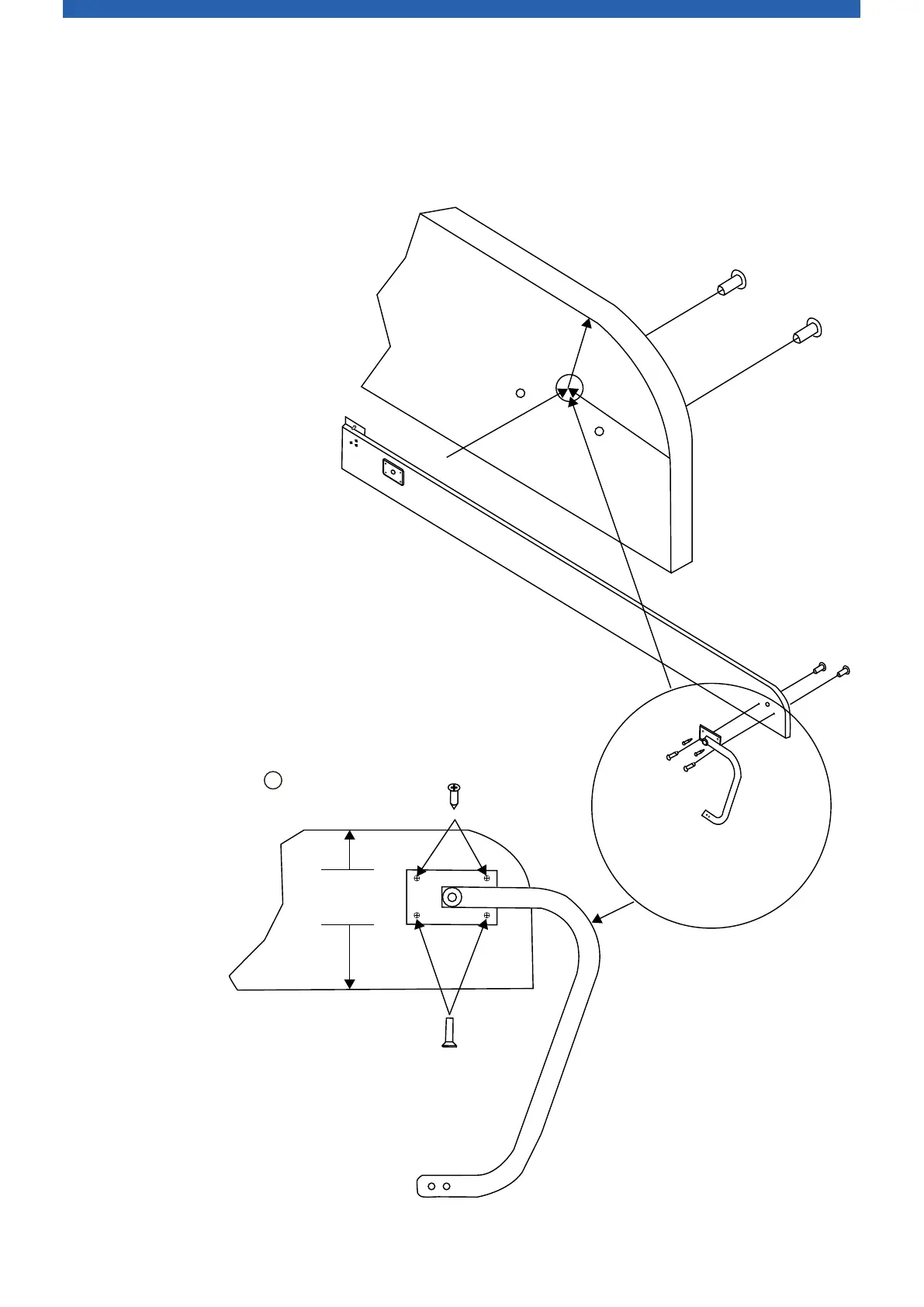

Step 7: Leg placement
From the top of the side rail measure
down 2-1/2"and from the front measure
in 3-1/8". Drill a 5/8" diameter hole 1/2"
deep.
With the pivot plate parallel to the top &
bottom of the side rail. Drill a 1/4" hole
through the bottom 2 (two) holes in the
plate through the side Rails.
two (2) black screws.
Screw through the top 2 holes.
Note: To prevent tear out on the outside of the side rail,
clamp a piece of scrap wood to the rail while drilling.
Step 8: Place the leg pivot into
the 5/8" hole.
WHEN COMPLETED
REMOVE LEG HARDWARE
5/81/2
2- 1/2
3-1/8
B
To Next Page
