ROOTS Flipper - Frame Group - Brush Shaft Assy

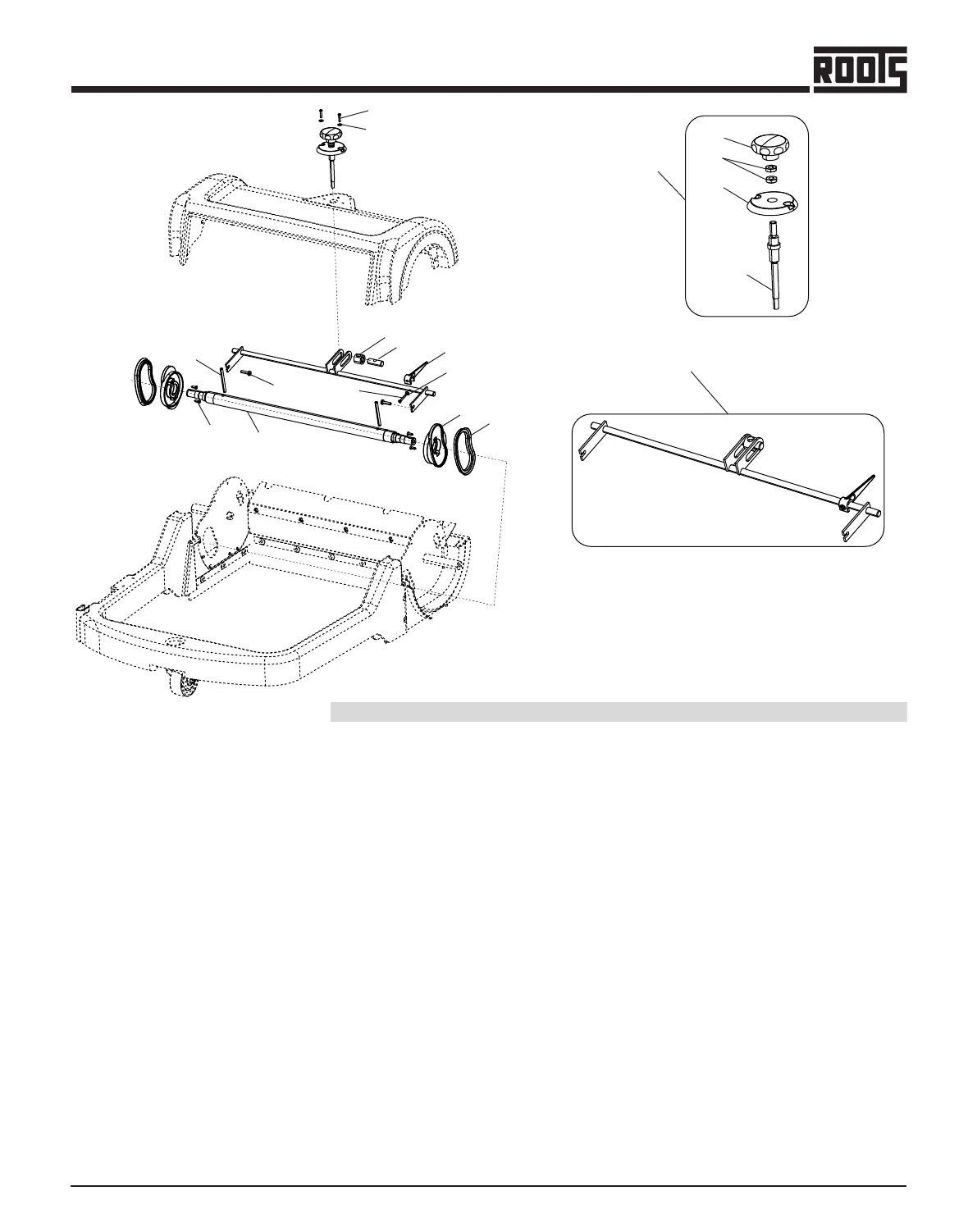

FRAME GROUP - Brush Shaft Assy
12
+
Flipper
1
11
17
16
5
6
3
15
7
8
4
16
12
2
10
18
13
14
9
SL.NO PART NO DESCRIPTION QTY
1 558210062-00 BRUSH SHAFT GROUP 1
2 558210064-00 PRESSURE ADJUSTMENT GROUP 1
3 553210189-00 BOOT 2
4 553210190-00 SEAL 2
5 552320007-00 CRCSK SELF TAPPING SCREW- STEEL - 3.5X12.7 4
6 553210167-00 SPLIT PIN – 63 2
7 553210152-00 TRUNNION SHAFT 1
8 553210202-00 SPACER THREAD ROD 1
9 558210060-00 THREAD ROD ASSY 1
10 553210195-00 TOP COVER THREAD ROD 1
11 552130013-00 CR PAN HEAD SCREW STEEL - M5X20 2
12 553260042-00 CRPH SELF TAPPING SCREW - 3.5X16 2
13 552250004-00 HEX LOCK NUT STEEL - M8 2
14 558210109-00 TOP KNOB ASSY 1
15 553210199-00 INDICATOR 1
16 552350005-00 WASHER STEEL - 4.3X9.0X0.8 3
17 552280010-00 CRPH SELF TAP SCREW - 3.5X25 1
18 558210067-00 THREAD ROD GROUP 1
