ROOTS Flipper - Frame Group - Gear Assy

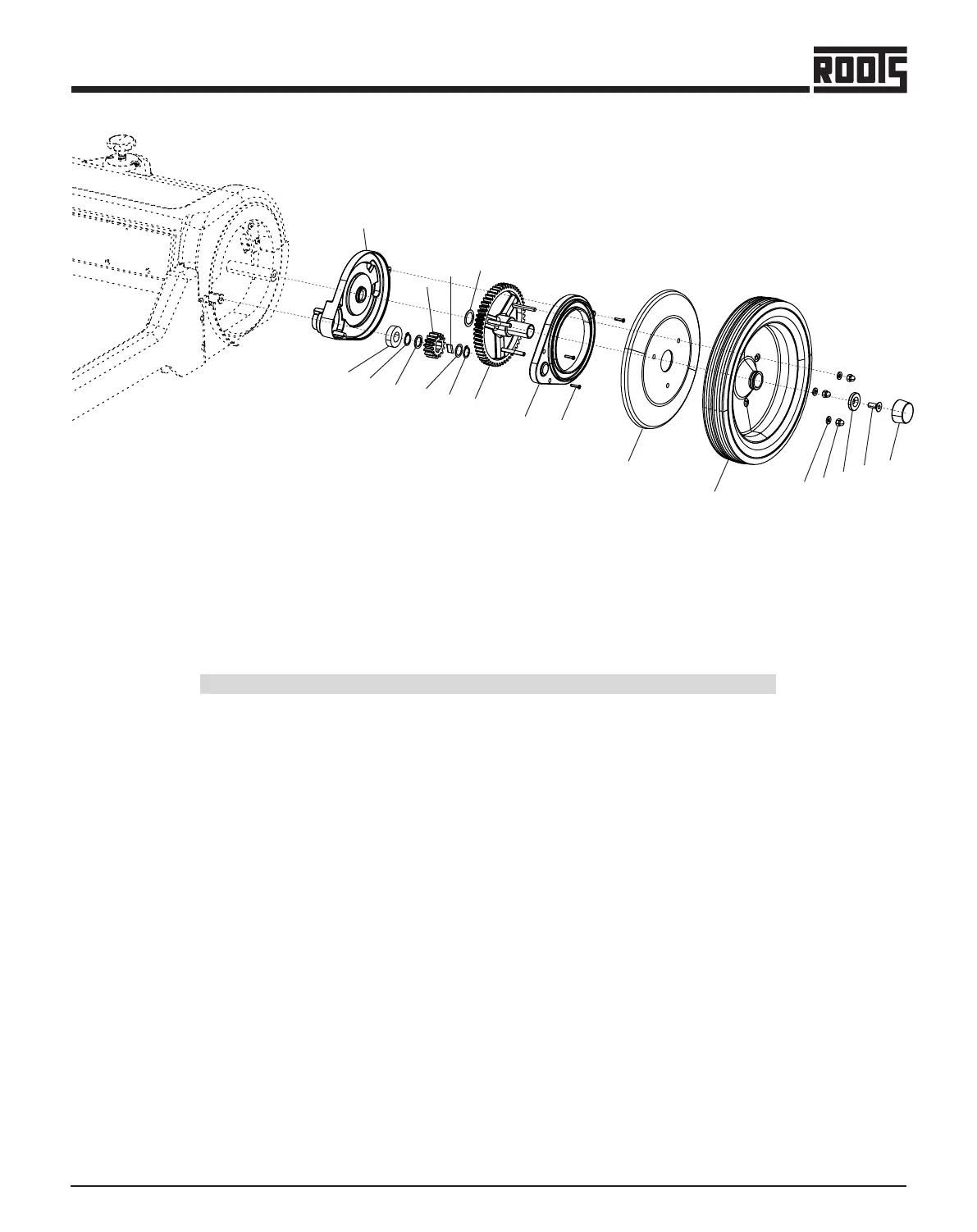

FRAME GROUP - Gear Assy
1
2
3
4
5
6
7
8
19
10
12
13
16
17
18
11
14
15
9
13
+
Flipper
SL NO PART NO DESCRIPTION QTY
1 553210178-00 WHEEL CAP 2
2 552230024-00 HEX SOC HEAD CAP SCREW -STEEL - M8X20 2
3 552350017-00 WASHER-STEEL-8.4X24X2 2
4 552300002-00 DOMED CAP NUT-SS 304 - M6 6
5 552350011-00 WASHER-STEEL - 6.4X12.5X1.6 6
6 558210053-00 TYRE ASSY 2
7 553210191-00 PROTECTION DISK 2
8 553260042-00 CRPH SELF TAPPING SCREW - 3.5X16 6
9 553210192-00 GEAR COVER BOTTOM 2
10 558210071-00 GEAR ASSY 2
11 553210188-00 WASHER STEEL - 20X28X0.5 2
12 553230016-00 CIRCLIP EXTERNAL - A 16 2
13 553210064-00 WASHER – STEEL - 16X22X0.5 2
14 553210006-00 KEY 2
15 553210157-00 PINION 2
16 553210063-00 WASHER – STEEL - 16X22X1.5 2
17 553230014-00 CIRCLIP EXTERNAL - A 17 2
18 552610011-00 DG BALL BEARING 6003 2 RS 2
19 553210193-00 GEAR COVER 2
